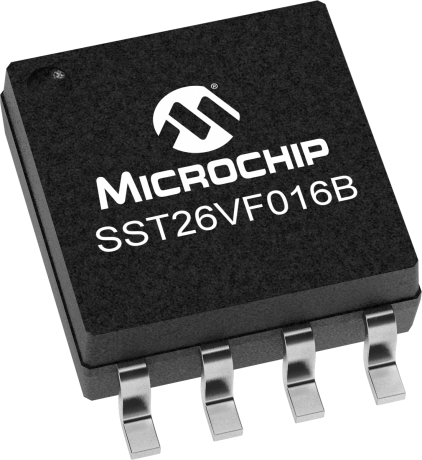

SST26VF016B

16Mbit 2.3-3.6V Serial Quad I/O (SQI) Flash

Status: In Production

Features:

  • x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol
  • Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around
  • Page-Program- 256 Bytes per page in x1 or x4 mode
  • Packages Available: 8-contact WDFN (6mm x 5mm), 8-lead SOIC, 8-lead SOIJ
  • Industrial -40C to +85C; Industrial Plus -40C to +105C; Extended -40C to +125C
  • Automotive AEC-Q100 Qualified
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The SST26VF016B Serial Quad I/O (SQI) flash device utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. SST26VF016B also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. Operating at frequencies reaching 104 MHz, the SST26VF016B enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The device’s high performance and reliability make it the ideal choice for Network Appliance, Smart Home, Wireless Connectivity, Computing, Digital TV, Smart Meter, Datacenter, Automotive and other Industrial applications. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash® technology, which significantly improves performance and reliability, and lowers power consumption for high bandwidth, compact designs.

Additional Features
  • x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol
  • Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around
  • Page-Program- 256 Bytes per page in x1 or x4 mode
  • Flexible Erase Capability- Uniform 4 KByte sectors, Four 8 KByte top and bottom parameter overlay blocks, One 32 KByte top and bottom overlay block, Uniform 64 KByte overlay blocks
  • Software Write Protection- Individual Block-Locking: 64 KByte blocks, two 32 KByte blocks, and eight 8 KByte parameter blocks
  • Low Power Consumption: Active Read current: 15 mA (typical @ 104 MHz), Standby Current: 15 µA (typical), Deep Power-Down Current: 2.5uA (typical)
  • SFDP (Serial Flash Discoverable Parameters)
  • Packages Available: 8-contact WDFN (6mm x 5mm), 8-lead SOIC, 8-lead SOIJ
  • All devices are RoHS compliant
  • Industrial -40C to +85C; Industrial Plus -40C to +105C; Extended -40C to +125C
  • Automotive AEC-Q100 Qualified
Parametrics
Name
Value
Density
16 Mbit
Op. Volt Range (V)
2.3 to 3.6
Max. Clock Freq.
104 MHz
Page Size (bytes)
256
Temp Range (°C)
-40°C to +125°C
Endurance
100,000
Data Retention (Years)
100

Documents

Jump to:

Brochures

Software Libraries/Firmware

Development Environment

  • Integrated Development Environments
  • Programmers
  • Demo & Evaluation Boards
  • Code Examples
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164302   PartNo: SST26VF016B (8SN)
  • Socket: AC164312   PartNo: SST26VF016B (8SM)
Learn More
Add To Cart
Demo & Evaluation Boards
SQI SuperFlash(R) Kit 1
SQI SuperFlash(R) Kit 1 ( AC243009 )

The SQI SuperFlash Kit 1 contains three Serial Flash Daughter Boards. The Serial Flash Daughter Board is an evaluation board designed to interface with the mikroBUS™ connector on the Explorer 16/32 Development Board (DM240001-2). It can also interface with the PICtail™ Plus connector that is located on the Explorer 16 Development Board (DM240001).

Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
16M
50 MHz
SOIJ-8, TDFN-S-8
$1.10
16000K
80 MHz
SOIJ-8, TDFN-S-8
$1.11

104 MHz
SOIC-8, SOIJ-8, TDFN-S-8
$0.96

104 MHz
SOIC-8
$1.20
16Mb
104 MHz
CSP-8, SOIC-8, TDFN-S-8
$0.99
16Mb
104 MHz
CSP-8, SOIC-8, TDFN-S-8
$1.04
