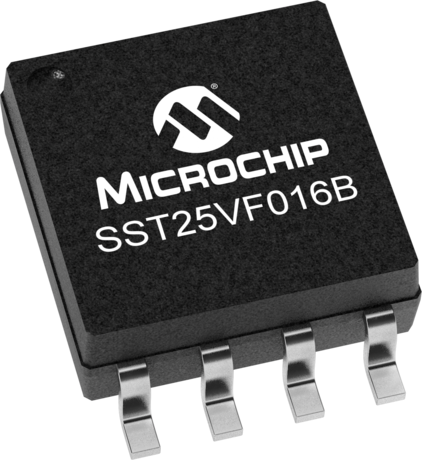

product primary image

SST25VF016B

16Mb 2.7-3.6V SPI Serial Flash

Status: Not Recommended for new designs

Features:

  • Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3
  • Up to 50 MHz Clock Frequency
  • Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention
  • Low Power Consumption:– Active Read Current: 10 mA (typical)– Standby Current: 5 µA (typical)
  • Flexible Erase Capability– Uniform 4 KByte sectors– Uniform 32 KByte overlay blocks– Uniform 64 KByte overlay blocks
  • Fast Erase and Byte-Program:– Chip-Erase Time: 35 ms (typical)– Sector-/Block-Erase Time: 18 ms (typical)– Byte-Program Time: 7 µs (typical)
  • Auto Address Increment (AAI) Programming– Decrease total chip programming time overByte-Program operations
  • End-of-Write Detection– Software polling the BUSY bit in Status Register– Busy Status readout on SO pin in AAI Mode
  • Hold Pin (HOLD#)– Suspends a serial sequence to the memorywithout deselecting the device
  • Write Protection (WP#)– Enables/Disables the Lock-Down function of thestatus register
  • Software Write Protection– Write protection through Block-Protection bits instatus register
  • Temperature Range– Commercial: 0°C to +70°C– Industrial: -40°C to +85°C
  • Packages Available– 8-lead SOIC (200 mils)– 8-contact WSON (6mm x 5mm)
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

SST's 25 series Serial Flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF016B devices are enhanced with improved operating frequency which lowers power consumption. SST25VF016B SPI serial flash memories are manufactured with SST's proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

For EOL Notification, click here.
For Migration Document to SST26VF016B, click here.

Please consider this device SST26VF016B

Additional Features
      Single Voltage Read and Write Operations– 2.7-3.6V
    • Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3
    • Up to 50 MHz Clock Frequency
    • Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention
    • Low Power Consumption:– Active Read Current: 10 mA (typical)– Standby Current: 5 µA (typical)
    • Flexible Erase Capability– Uniform 4 KByte sectors– Uniform 32 KByte overlay blocks– Uniform 64 KByte overlay blocks
    • Fast Erase and Byte-Program:– Chip-Erase Time: 35 ms (typical)– Sector-/Block-Erase Time: 18 ms (typical)– Byte-Program Time: 7 µs (typical)
    • Auto Address Increment (AAI) Programming– Decrease total chip programming time overByte-Program operations
    • End-of-Write Detection– Software polling the BUSY bit in Status Register– Busy Status readout on SO pin in AAI Mode
    • Hold Pin (HOLD#)– Suspends a serial sequence to the memorywithout deselecting the device
    • Write Protection (WP#)– Enables/Disables the Lock-Down function of thestatus register
    • Software Write Protection– Write protection through Block-Protection bits instatus register
    • Temperature Range– Commercial: 0°C to +70°C– Industrial: -40°C to +85°C
    • Packages Available– 8-lead SOIC (200 mils)– 8-contact WSON (6mm x 5mm)
    • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
16 Mbit
Op. Volt Range (V)
2.7 to 3.6
Max. Clock Freq.
50 MHz
Temp Range (°C)
-40°C to +85°C
Endurance
100,000
Data Retention (Years)
100
Bus Modes
SPI

Documents

Jump to:

Brochures

12/19/2017
3698KB
06/24/2015
740KB
06/24/2015
3370KB

Code Examples

Board Design Files

06/24/2015
4KB
06/24/2015
4KB
06/23/2015
4KB
06/23/2015
4KB

Software Libraries/Firmware

06/23/2015
33KB

Development Environment

  • Programmers
  • Code Examples
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164312   PartNo: SST25VF016B (8SM)
Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
16M
50 MHz
SOIJ-8, TDFN-S-8
$1.10
16000K
80 MHz
SOIJ-8, TDFN-S-8
$0.97

104 MHz
SOIC-8, SOIJ-8, TDFN-S-8
$0.96

104 MHz
SOIC-8
$1.20
16Mb
104 MHz
CSP-8, SOIC-8, TDFN-S-8
$0.99
16Mb
104 MHz
CSP-8, SOIC-8, TDFN-S-8
$1.04

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST25VF016B-50-4C-S2AF
0.135700
2.700000
8
SOIJ
.208in
NiPdAu
e4
SST25VF016B-50-4C-S2AF-DCQ
0.135700
2.700000
8
SOIJ
.208in
NiPdAu
e4
SST25VF016B-50-4C-S2AF-DCQ-T
0.135700
0.390476
8
SOIJ
.208in
NiPdAu
e4
SST25VF016B-50-4C-S2AF-T
0.135700
0.390476
8
SOIJ
.208in
NiPdAu
e4
SST25VF016B-50-4I-S2AF
0.135700
2.700000
8
SOIJ
.208in
NiPdAu
e4
SST25VF016B-50-4I-S2AF-T
0.135700
0.390476
8
SOIJ
.208in
NiPdAu
e4
SST25VF016B-50-4I-QAF-T
0.075800
0.200000
8
TDFN-S
6x5x0.8mm
NiPdAu
e4
SST25VF016B-50-4I-QAF
0.075800
0.163265
8
TDFN-S
6x5x0.8mm
NiPdAu
e4
SST25VF016B-50-4C-QAF-T
0.075800
0.200000
8
TDFN-S
6x5x0.8mm
NiPdAu
e4
SST25VF016B-50-4C-QAF
0.075800
0.163265
8
TDFN-S
6x5x0.8mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
