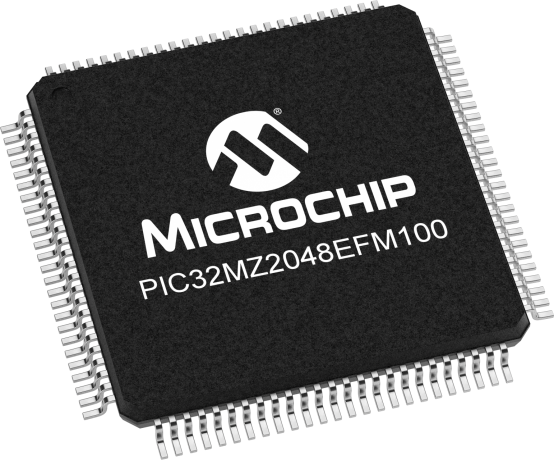

product primary image

PIC32MZ2048EFM100

Status: In Production

Features:

  • 200 MHz/330 DMIPS, MIPS M-class core
  • Four 64-bit accumulators
  • Single-cycle MAC, saturating and fractional math
  • IEEE 754-compliant
  • Dual Panel Flash for live update support
  • FPU for fast single
  • and double-precision math
  • 12-bit, 18 MSPS, 40-channel ADC module
  • Memory Management Unit for optimum embedded OS execution
  • microMIPS mode for up to 35% code compression
  • CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
  • SPI/I2S interfaces for audio processing and playback
  • Hi-Speed USB 2.0 Device/Host/OTG
  • 10/100 Mbps Ethernet MAC with MII and RMII interface
  • Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
  • Temperature Range:
  • 40°C to 85°C;
  • 40°C to 125°C
  • AEC-Q100 Qualified Grade 1 40°C to 125°C
  • Grade 1
  • 40°C to 125°C
  • Operating voltage range of 2.2V to 3.6V
  • 2MB Flash memory (plus an additional 160 KB of Boot Flash)
  • 512KB SRAM memory
  • microMIPS mode for up to 35% smaller code size
  • Four 64-bit accumulators
  • Single-cylce MAC, saturating and fractional math
  • IEEE 754-compliant
  • FPU for fast single
  • and double-precision math
  • Code-efficient (C and Assembly) architecture
  • Low-power management modes (Idle and Sleep)
  • 50 MHz External Bus Interface (EBI)
  • 50 MHz Serial Quad Interface (SQI)
  • Peripheral Pin Select (PPS) functionality to enable function remap
  • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
  • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
  • Two CAN modules 2.0B Active with DeviceNet addressing support
  • Six 4-wire SPI modules (50 Mbps)
  • SQI configurable as an additional SPI module (50 MHz)
  • Five I2C modules (up to 1 Mbaud) with SMBus support
  • Parallel Master Port (PMP)
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
  • Nine Capture inputs and Nine Compare/PWM outputs
  • Graphics interface: EBI or PMP
  • Audio data communication: I2S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
  • Audio data master clock: Fractional clock frequencies with USB synchronization
  • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
  • Up to 40 analog inputs
  • Can operate during sleep and idle modes
  • Multiple trigger sources
  • Six digital comparators and six digital filters
  • Two analog comparators with 32 programmable voltage references
  • Temperature sensor with ±2°C accuracy
  • In-circuit and in-application programming
  • 4-wire MIPS® Enhanced JTAG interface
  • Unlimited program and 12 complex data breakpoints
  • IEEE 1149.2-compatible (JTAG) boundary scan
  • Non-intrusive hardware-based instruction trace
  • MPLAB Harmony
  •  PIC32 software development framework
  • C/C++ compiler with native DSP/fractional and FPU support
  • TCP/IP, USB, Graphics and mTouch middleware
  • MFi, Android and Bluetooth audio frameworks
  • RTOS Kernels, Express Logic, ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary



Additional Features
      Key Features
      • 200 MHz/330 DMIPS, MIPS M-class core
      • DSP-enhanced core:
        • Four 64-bit accumulators
        • Single-cycle MAC, saturating and fractional math
        • IEEE 754-compliant
      • Dual Panel Flash for live update support
      • FPU for fast single- and double-precision math
      • 12-bit, 18 MSPS, 40-channel ADC module
      • Memory Management Unit for optimum embedded OS execution
      • microMIPS mode for up to 35% code compression
      • CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
      • SPI/I2S interfaces for audio processing and playback
      • Hi-Speed USB 2.0 Device/Host/OTG
      • 10/100 Mbps Ethernet MAC with MII and RMII interface
      • Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
      • Temperature Range: - 40°C to 85°C; - 40°C to 125°C
      • AEC-Q100 Qualified
        • Grade 1
        • - 40°C to 125°C
        Microcontroller Features
        • Operating voltage range of 2.2V to 3.6V
        • 2MB Flash memory (plus an additional 160 KB of Boot Flash)
        • 512KB SRAM memory
        • microMIPS mode for up to 35% smaller code size
        • DSP-enhanced core:
          • Four 64-bit accumulators
          • Single-cylce MAC, saturating and fractional math
          • IEEE 754-compliant
        • FPU for fast single- and double-precision math
        • Code-efficient (C and Assembly) architecture
        • Low-power management modes (Idle and Sleep)
        Peripheral Features
        • 50 MHz External Bus Interface (EBI)
        • 50 MHz Serial Quad Interface (SQI)
        • Peripheral Pin Select (PPS) functionality to enable function remap
        • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
        • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
        • Two CAN modules 2.0B Active with DeviceNet addressing support
        • Six 4-wire SPI modules (50 Mbps)
        • SQI configurable as an additional SPI module (50 MHz)
        • Five I2C modules (up to 1 Mbaud) with SMBus support
        • Parallel Master Port (PMP)
          • Hardware Real-Time Clock and Calendar (RTCC)
          • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
          • Nine Capture inputs and Nine Compare/PWM outputs
            • Audio/Graphics/Touch HMI Features
              • Graphics interface: EBI or PMP
              • Audio data communication: I2S, LJ, RJ, USB
              • Audio data control interface: SPI and I2C™
              • Audio data master clock: Fractional clock frequencies with USB synchronization
                Advanced Analog Features
                • 12-bit ADC Module:
                  • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
                  • Up to 40 analog inputs
                  • Can operate during sleep and idle modes
                  • Multiple trigger sources
                  • Six digital comparators and six digital filters
                  • Two analog comparators with 32 programmable voltage references
                  • Temperature sensor with ±2°C accuracy
                    • Debugger Development Support
                      • In-circuit and in-application programming
                      • 4-wire MIPS® Enhanced JTAG interface
                      • Unlimited program and 12 complex data breakpoints
                      • IEEE 1149.2-compatible (JTAG) boundary scan
                      • Non-intrusive hardware-based instruction trace
                      Integrated Software Libraries and Tools
                      • MPLAB Harmony -  PIC32 software development framework
                      • C/C++ compiler with native DSP/fractional and FPU support
                      • TCP/IP, USB, Graphics and mTouch middleware
                      • MFi, Android and Bluetooth audio frameworks
                      • RTOS Kernels, Express Logic, ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
                        Parametrics
                        Name
                        Value
                        Part Family
                        PIC32MZEF
                        Max CPU Speed MHz
                        200
                        Program Memory Size (KB)
                        2048
                        SRAM (KB)
                        512
                        Auxiliary Flash (KB)
                        160
                        Crypto Engine
                        Yes
                        Temperature Range (C)
                        -40 to 125
                        Operating Voltage Range (V)
                        2.2 to 3.6
                        Direct Memory Access Channels
                        8
                        SPI
                        6
                        I2C
                        5
                        CODEC Interface (I2S,AC97)
                        Yes
                        Peripheral Pin Select / Pin Muxing
                        Yes
                        Ethernet
                        10/100 Base-TX Mac
                        Number of Ethernet Ports
                        1
                        Number of USB Modules
                        1
                        USB Interface
                        High Speed
                        Number of CAN modules
                        2
                        Type of CAN module
                        CAN
                        ADC Input
                        40
                        Max ADC Resolution (Bits)
                        12
                        Max ADC Sampling Rate (ksps)
                        18000
                        Input Capture
                        9
                        Standalone Output Compare/Standard PWM
                        9
                        Max 16-bit Digital Timers
                        9
                        Parallel Port
                        PMP
                        Number of Comparators
                        2
                        Internal Oscillator
                        8 MHz, 32 kHz
                        Hardware RTCC/RTC
                        Yes
                        Max I/O Pins
                        78
                        Pincount
                        100
                        Serial Quad Interface
                        Yes
