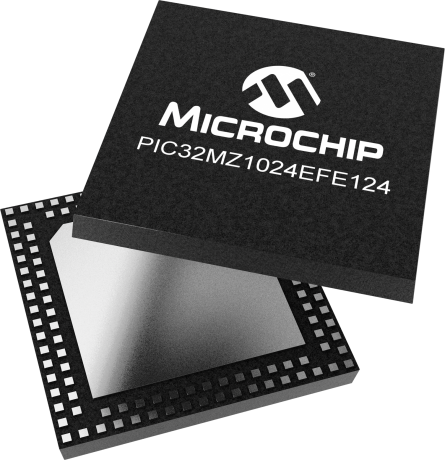

product primary image

PIC32MZ1024EFE124

Status: In Production

Features:

  • 200 MHz/330 DMIPS, MIPS Warrior M-class core
  • Four 64-bit accumulators
  • Single-cycle MAC, saturating and fractional math
  • IEEE 754-compliant
  • Dual Panel Flash for live update support
  • FPU for fast single
  • and double-precision math
  • 12-bit, 18 MSPS, 48-channel ADC module
  • Memory Management Unit for optimum embedded OS execution
  • microMIPS mode for up to 35% code compression
  • UART, I2C, PMP, EBI, SQI & Analog Comparators
  • SPI/I2S interfaces for audio processing and playback
  • Hi-Speed USB 2.0 Device/Host/OTG
  • 10/100 Mbps Ethernet MAC with MII and RMII interface
  • Temperature Range:
  • 40°C to 85°C;
  • 40°C to 125°C
  • Grade 1
  • 40°C to 125°C
  • Operating voltage range of 2.2V to 3.6V
  • 1MB Flash memory (plus an additional 160 KB of Boot Flash)
  • 256KB SRAM memory
  • microMIPS mode for up to 35% smaller code size
  • Four 64-bit accumulators
  • Single-cylce MAC, saturating and fractional math
  • IEEE 754-compliant
  • FPU for fast single
  • and double-precision math
  • Code-efficient (C and Assembly) architecture
  • Low-power management modes (Idle and Sleep)
  • 50 MHz External Bus Interface (EBI)
  • 50 MHz Serial Quad Interface (SQI)
  • Peripheral Pin Select (PPS) functionality to enable function remap
  • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
  • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
  • Six 4-wire SPI modules (50 Mbps)
  • SQI configurable as an additional SPI module (50 MHz)
  • Five I2C modules (up to 1 Mbaud) with SMBus support
  • Parallel Master Port (PMP)
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
  • Nine Capture inputs and Nine Compare/PWM outputs
  • Graphics interface: EBI or PMP
  • Audio data communication: I2S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
  • Audio data master clock: Fractional clock frequencies with USB synchronization
  • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
  • Up to 48 analog inputs
  • Can operate during sleep and idle modes
  • Multiple trigger sources
  • Six digital comparators and six digital filters
  • Two analog comparators with 32 programmable voltage references
  • Temperature sensor with ±2°C accuracy
  • In-circuit and in-application programming
  • 4-wire MIPS® Enhanced JTAG interface
  • Unlimited program and 12 complex data breakpoints
  • IEEE 1149.2-compatible (JTAG) boundary scan
  • Non-intrusive hardware-based instruction trace
  • MPLAB Harmony
  • PIC32 software development framework
  • C/C++ compiler with native DSP/fractional and FPU support
  • TCP/IP, USB, Graphics and mTouch middleware
  • MFi, Android and Bluetooth audio frameworks
  • RTOS Kernels, Express Logic ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary




Additional Features
      Key Features
      • 200 MHz/330 DMIPS, MIPS Warrior M-class core
      • DSP-enhanced core:
        • Four 64-bit accumulators
        • Single-cycle MAC, saturating and fractional math
        • IEEE 754-compliant
        • Dual Panel Flash for live update support
        • FPU for fast single- and double-precision math
        • 12-bit, 18 MSPS, 48-channel ADC module
        • Memory Management Unit for optimum embedded OS execution
        • microMIPS mode for up to 35% code compression
        • UART, I2C, PMP, EBI, SQI & Analog Comparators
        • SPI/I2S interfaces for audio processing and playback
        • Hi-Speed USB 2.0 Device/Host/OTG
        • 10/100 Mbps Ethernet MAC with MII and RMII interface
        • Temperature Range: - 40°C to 85°C; - 40°C to 125°C
        • AEC-Q100 Qualified
          • Grade 1
          • - 40°C to 125°C
        Microcontroller Features
        • Operating voltage range of 2.2V to 3.6V
        • 1MB Flash memory (plus an additional 160 KB of Boot Flash)
        • 256KB SRAM memory
        • microMIPS mode for up to 35% smaller code size
        • DSP-enhanced core:
          • Four 64-bit accumulators
          • Single-cylce MAC, saturating and fractional math
          • IEEE 754-compliant
        • FPU for fast single- and double-precision math
        • Code-efficient (C and Assembly) architecture
        • Low-power management modes (Idle and Sleep)
          Peripheral Features
          • 50 MHz External Bus Interface (EBI)
          • 50 MHz Serial Quad Interface (SQI)
          • Peripheral Pin Select (PPS) functionality to enable function remap
          • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
          • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
          • Six 4-wire SPI modules (50 Mbps)
          • SQI configurable as an additional SPI module (50 MHz)
          • Five I2C modules (up to 1 Mbaud) with SMBus support
          • Parallel Master Port (PMP)
          • Hardware Real-Time Clock and Calendar (RTCC)
          • Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
          • Nine Capture inputs and Nine Compare/PWM outputs
            Audio/Graphics/Touch HMI Features
            • Graphics interface: EBI or PMP
            • Audio data communication: I2S, LJ, RJ, USB
            • Audio data control interface: SPI and I2C™
            • Audio data master clock: Fractional clock frequencies with USB synchronization
              Advanced Analog Features
              • 12-bit ADC Module:
                • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
                • Up to 48 analog inputs
                • Can operate during sleep and idle modes
                • Multiple trigger sources
                • Six digital comparators and six digital filters
              • Two analog comparators with 32 programmable voltage references
              • Temperature sensor with ±2°C accuracy
                Debugger Development Support
                • In-circuit and in-application programming
                • 4-wire MIPS® Enhanced JTAG interface
                • Unlimited program and 12 complex data breakpoints
                • IEEE 1149.2-compatible (JTAG) boundary scan
                • Non-intrusive hardware-based instruction trace
                Integrated Software Libraries and Tools
                • MPLAB Harmony - PIC32 software development framework
                • C/C++ compiler with native DSP/fractional and FPU support
                • TCP/IP, USB, Graphics and mTouch middleware
                • MFi, Android and Bluetooth audio frameworks
                • RTOS Kernels, Express Logic ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
            Parametrics
            Name
            Value
            Part Family
            PIC32MZEF
            Max CPU Speed MHz
            200
            Program Memory Size (KB)
            1024
            SRAM (KB)
            256
            Auxiliary Flash (KB)
            160
            Temperature Range (C)
            -40 to 125
            Operating Voltage Range (V)
            2.2 to 3.6
            Direct Memory Access Channels
            8
            SPI
            6
            I2C
            5
            CODEC Interface (I2S,AC97)
            Yes
            Peripheral Pin Select / Pin Muxing
            Yes
            Ethernet
            10/100 Base-TX Mac
            Number of Ethernet Ports
            1
            Number of USB Modules
            1
            ADC Input
            48
            Max ADC Resolution (Bits)
            12
            Max ADC Sampling Rate (ksps)
            18000
            Input Capture
            9
            Standalone Output Compare/Standard PWM
            9
            Max 16-bit Digital Timers
            9
            Parallel Port
            PMP
            Number of Comparators
            2
            Internal Oscillator
            8 MHz, 32 kHz
            Hardware RTCC/RTC
            Yes
            Max I/O Pins
            98
            Pincount
            124
            Serial Quad Interface
            Yes
