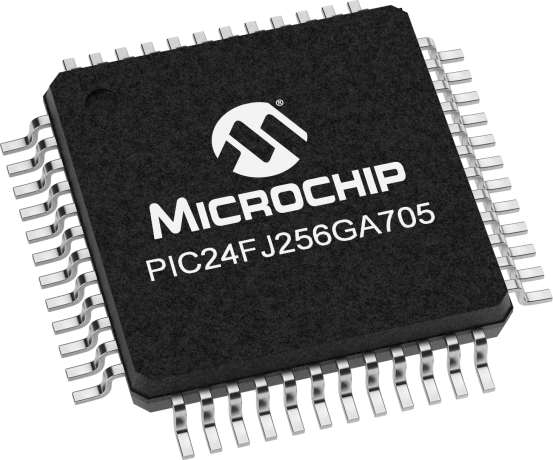

PIC24FJ256GA705

In Production

PIC24F 16-bit Microcontroller featuring up to 256KB of ECC Flash, 16KB of RAM and eXtreme Low Power. It has 12bit ADC at 200ksps with up to 14 analog inputs, 3 comparators and CTMU for touch applications. Available in 28 pin, 44 pin and 48 pin packages. This family is ideally suited for general purpose applications.



    Features

        CPU

        • Modified Harvard Architecture
        • Up to 16 MIPS Operation @ 32 MHz
        • 8 MHz Internal Oscillator:
          • 96 MHz PLL option
          • Multiple clock divide options
          • Fast start-up
          • 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
          • 32-Bit by 16-Bit Hardware Divider
          • 16 x 16-Bit Working Register Array
          • C Compiler Optimized Instruction Set Architecture
          • Two Address Generation Units for Separate Read and Write Addressing of Data Memory

          Analog Features

          • Up to 14-Channel, Software Selectable, 10/12-Bit Analog-to-Digital Converter:
            • 12-bit, 200K samples/second conversion rate (single Sample-and-Hold)
            • Sleep mode operation
            • Charge pump for operating at lower AVDD
            • Band gap reference input feature
            • Windowed threshold compare feature
            • Auto-scan feature
          • Three Analog Comparators with Input Multiplexing
          • LVD Interrupt Above/Below Programmable VLVD Level
          • Charge Time Measurement Unit (CTMU):
            • Allows measurement of capacitance and time
            • Operational in Sleep

          Low-Power Features

          • Sleep and Idle modes Selectively Shut Down Peripherals and/or Core for Substantial Power Reduction and Fast Wake-up
          • Doze mode Allows CPU to Run at a Lower Clock Speed than Peripherals
          • Alternate Clock modes Allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction




      Parameter Name
      Value
      Architecture
      16-bit
      CPU Speed (MIPS)
      16
      Memory Type
      Flash
      Program Memory (KB)
      256
      ECC Program Flash (Error Correction Code)
      Yes
      RAM (KB)
      16
      Temperature Range C
      -40 to 85
      Operating Voltage Range (V)
      2 to 3.6
      I/O Pins
      39
      Pin Count
      48
      System Management Features
      BOR, LVD
      POR
      Yes
      WDT
      Yes
      Internal Oscillator
      8 MHz, 31 kHz
      Digital Communication Peripherals
      2-UART
      3-SPI
      2-I2C
      0-MSSP(SPI/I2C)
      Codec Interface
      Yes
      Analog Peripherals
      1-A/D 14x12-bit @ 200(ksps)
      Comparators
      3
      Capture/Compare/PWM Peripherals
      3
      PWM Resolution bits
      16
      Timers
      3 x 16-bit 1 x 32-bit
      Parallel Port
      EPMP
      Hardware RTCC
      Yes
      DMA
      6
      Low Power
      Yes
      Cap Touch Channels
      13
      Multiple output CCP (MCCP)
      4
      Supported in MPLAB Code Configurator
      Yes
      Documentation
      Data Sheets
      10/24/2016
      2877KB
        Errata




      Errata
      06/01/2017
      354KB
        Migration Documents




      Migration Documents
      03/28/2006
      770KB
        Programming Specifications



      Programming Specification
      02/25/2013
      10777KB
      Programming Specification
      02/27/2017
      415KB
        Application Notes



      AppNote
      05/02/2014
      350KB
      AppNote
      01/08/2008
      387KB
      AppNote
      01/24/2008
      498KB
      AppNote
      07/15/2008
      240KB
      AppNote
      03/28/2010
      150KB
      AppNote
      01/05/2017
      439KB
      AppNote
      02/03/2009
      834KB
      AppNote
      05/19/2010
      1100KB
      AppNote
      05/11/2011
      168KB
      AppNote
      11/30/2011
      274KB
      AppNote
      09/22/2014
      146KB
      AppNote
      04/11/2016
      220KB
      AppNote
      08/10/2016
      194KB
        Brochures




      Brochures
      05/26/2017
      514KB
        Reference Manual



      Reference Manual
      03/14/2014
      206KB
      Reference Manual
      11/15/2016
      144KB
      Reference Manual
      05/04/2016
      304KB
      Reference Manual
      11/13/2013
      106KB
      Reference Manual
      03/18/2014
      668KB
      Reference Manual
      07/10/2015
      351KB
      Reference Manual
      03/13/2014
      363KB
      Reference Manual
      09/12/2017
      196KB
      Reference Manual
      01/21/2016
      222KB
      Reference Manual
      07/16/2014
      402KB
      Reference Manual
      03/14/2014
      467KB
      Reference Manual
      11/13/2013
      306KB
      Reference Manual
      02/22/2013
      354KB
      Reference Manual
      02/22/2013
      207KB
      Reference Manual
      02/22/2013
      96KB
      Reference Manual
      02/22/2013
      339KB
      Reference Manual
      02/22/2013
      276KB
      Reference Manual
      02/22/2013
      111KB
      Reference Manual
      02/22/2013
      155KB
      Reference Manual
      02/22/2013
      107KB
      Reference Manual
      02/22/2013
      329KB
      Reference Manual
      02/22/2013
      408KB
      Reference Manual
      02/22/2013
      280KB
      Reference Manual
      02/22/2013
      168KB
      Reference Manual
      02/22/2013
      92KB
      Reference Manual
      02/22/2013
      508KB
      Reference Manual
      02/22/2013
      330KB
      Reference Manual
      04/01/2015
      750KB
        Software Library




        Schematics




      PCB artwork
      12/21/2016
      33417KB
        Tips and Tricks




      Tips and Tricks
      04/22/2009
      5964KB
        Video




      Video
      04/16/2009
      8968KB
      Pricing & Samples
      All pricing shown in USD only.
      Part Number
      Leads
      Package Type
      Temp Range
      Packing
      1+
      26+
      100+
      1000+
      5000+
      Buy
      Sample
      PIC24FJ256GA705-I/M4
      48
      UQFN
      -40C to +85C
      TUBE
      1.97
      1.80
      1.63
      1.50
      1.43
      PIC24FJ256GA705-I/PT
      48
      TQFP
      -40C to +85C
      TRAY
      2.04
      1.87
      1.70
      1.56
      1.48
      PIC24FJ256GA705T-I/M4
      48
      UQFN
      -40C to +85C
      T/R
      1.98
      1.82
      1.65
      1.52
      1.44

      PIC24FJ256GA705T-I/PT
      48
      TQFP
      -40C to +85C
      T/R
      2.06
      1.89
      1.71
      1.58
      1.50


      ** Device not available to purchase online. Please contact a sales office for pricing information.
      Open a microchipDIRECT account today!

      Development Tools
      • Demo & Eval Boards
      • Emulation & Debuggers
      • Programmers
      • PIC24FJ256GA7 Curiosity Development Board ( DM240016 )

        PIC24FJ256GA7

        The PIC24FJ256GA7 Curiosity Development Board is a cost-effective, fully integrated 16-bit development platform targeted at first-time users, makers, and those seeking a feature-rich rapid prototyping board. Designed from the ground-up to take full advantage of Microchip’s MPLAB® X IDE and MPLAB Xpress Cloud-based IDE, the board includes an integrated programmer/debugger and requires no...

      • PIC24FJ256GA705 General Purpose PIM ( MA240039 )

        PIC24FJ256GA705

        The PIC24FJ256GA705 Plug-in Module is designed to demonstrate the capabilities of the PIC24FJ256GA705 family using the Explorer 16/32 Demonstration Boards. Most of the pins from the device are mapped directly to the PIM connector. The exceptions are those pins that are remapped to provide remappable functionality to the pins in the PICtail™ Plus socket.

      • Explorer 16/32 Development Board ( DM240001-2 )

        Explorer

        The Explorer 16/32 Development Board is a flexible and convenient development, demonstration and testing platform for 16-bit PIC24 MCUs, dsPIC® DSCs and 32-bit PIC32 MCUs from Microchip Technology. It features all the necessary hardware to begin developing and debugging a complete embedded application. The board accepts Processor Plug-In Modules (PIMs) designed for the Explorer...

      • PICkit 3 In-Circuit Debugger ( PG164130 )

        PICkit

        Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit debugging offers these benefits:

        • Low cost
        • Minimum of additional hardware needed for debug
        • Expensive sockets or adapters are not required...

        Debug Features:
        Stop watch:True
        Pgm-memory HW breakpoints:6
        Data-memory breakpoints:6
        WDT overflow:True
        Pass counter:True

      • MPLAB ICD 3 In-Circuit Debugger ( DV164035 )

        MPLAB

        MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU) devices. It debugs and programs PIC® Flash microcontrollers and dsPIC® DSCs with the powerful, yet easy-to-use graphical user interface of MPLAB Integrated Development Environment (IDE).

        Debug Features:
        WDT overflow:True
        Data-memory breakpoints:6
        Pgm-memory SW breakpoints:Unlimited
        Pass counter:True
        Advanced breakpoints:True
        Stop watch:True
        Pgm-memory HW breakpoints:6

      • MPLAB REAL ICE PROBE KIT ( DV244005 )

        MPLAB

        MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
        The MPLAB REAL ICE probe is connected...

        Debug Features:
        Pgm-memory HW breakpoints:6
        Advanced breakpoints:True
        WDT overflow:True
        Stop watch:True
        Data-memory breakpoints:6
        Data capture:Enabled
        Pgm-memory SW breakpoints:Unlimited
        Pass counter:True

      • PICkit 3 In-Circuit Debugger ( PG164130 )

        PICkit

        Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit debugging offers these benefits:

        • Low cost
        • Minimum of additional hardware needed for debug
        • Expensive sockets or adapters are not required...

      • MPLAB PM3 Universal Device Programmer ( DV007004 )

        MPLAB

        The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

      • MPLAB ICD 3 In-Circuit Debugger ( DV164035 )

        MPLAB

        MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU) devices. It debugs and programs PIC® Flash microcontrollers and dsPIC® DSCs with the powerful, yet easy-to-use graphical user interface of MPLAB Integrated Development Environment (IDE).

      • MPLAB REAL ICE PROBE KIT ( DV244005 )

        MPLAB

        MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
        The MPLAB REAL ICE probe is connected...

      Similar Devices
      Product
      Pins
      Flash
      RAM
      Price5K
      Notes
      28
      128
      16,384
      $1.23

      44
      128
      16,384
      $1.36

      48
      128
      16,384
      $1.34

      28
      256
      16,384
      $1.32

      44
      256
      16,384
      $1.44

      48
      256
      16,384
      $1.43

      28
      64
      16,384
      $1.16

      44
      64
      16,384
      $1.29

      48
      64
      16,384
      $1.27
