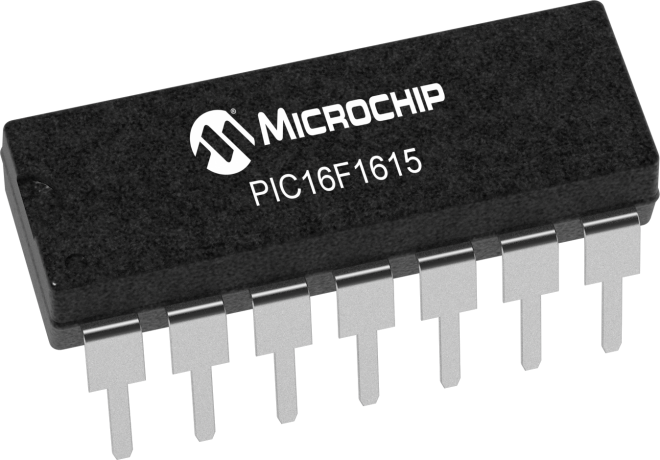

product primary image

PIC16F1615

Status: In Production

Features:

  • Flash Program Memory with self read/write capability
  • Enhanced Mid-Range Core, Internal 32MHz oscillator
  • 128 B of Non-volatile Data Storage
  • 2 x Analog Comparators
  • 2 x 10-bit PWM
  • 2 x Capture-Compare-PWM (CCP)
  • 4 x Configurable Logic Cell (CLC)
  • 8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference
  • Complementary Waveform Generator (CWG):
  • Zero Cross Detection (ZCD)
  • CRC:  16-bit with DMA
  • Math Accelerator
  • 2 x 24-bit Signal Measurement Timer (SMT)
  • 3 x Hardware Limit Timer (HLT)
  • Angular Timer
  • Window Watchdog Timer (WWDT)
  • High Current Source/Sink: 2 x 100mA I/O
  • Power-On Reset (POR), Brown-Out Reset (BOR)
  • In Circuit Serial Programming (ICSP)
  • Wide Operating Voltage of PIC16F1615 variant (2.3V – 5.5V)
  • Enhanced Low-Voltage PIC16LF1615 variant (1.8V - 3.6V)
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

PIC16(L)F161X microcontrollers deliver on-chip features that are unique to the design for embedded control of small motors and general purpose applications in 8 / 14 / 20 pin count packages.   Features like 10-bit A/D, CCP, 24-bit SMT, Zero Cross Detection offer an excellent solution to variety of applications.  The product family also has a CRC + memory scan and Window WDT to support safety critical systems in home appliances, white goods and other end equipment.

Additional Features
    • Flash Program Memory with self read/write capability
    • Enhanced Mid-Range Core, Internal 32MHz oscillator
    • High Endurance Flash Memory (HEF)
      • 128 B of Non-volatile Data Storage
    • 2 x Analog Comparators
    • 2 x 10-bit PWM
    • 2 x Capture-Compare-PWM (CCP)
    • 4 x Configurable Logic Cell (CLC)
    • 8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference
    • Complementary Waveform Generator (CWG):
    • Zero Cross Detection (ZCD)
    • CRC:  16-bit with DMA
    • Math Accelerator
    • Timers:
      • 2 x 24-bit Signal Measurement Timer (SMT)
      • 3 x Hardware Limit Timer (HLT)
      • Angular Timer
      • Window Watchdog Timer (WWDT)
    • High Current Source/Sink: 2 x 100mA I/O
    • Power-On Reset (POR), Brown-Out Reset (BOR)
    • In Circuit Serial Programming (ICSP)
    • Wide Operating Voltage of PIC16F1615 variant (2.3V – 5.5V)
    • Enhanced Low-Voltage PIC16LF1615 variant (1.8V - 3.6V)
      •

    Parametrics
    Name
    Value
    Program Memory Type
    Flash
    Program Memory Size (KB)
    14
    CPU Speed (MIPS/DMIPS)
    8
    SRAM Bytes
    1,024
    Digital Communication Peripherals
    1-UART, 1-SPI, 1-I2C
    Capture/Compare/PWM Peripherals
    2 Input Capture, 2 CCP,
    Timers
    4 x 8-bit, 3 x 16-bit
    ADC Input
    8 ch, 10-bit
    Number of Comparators
    2
    Temperature Range (°C)
    -40 to 125
    Operating Voltage Range (V)
    1.8 to 5.5
    Pin Count
    14
    Low Power
    Yes

    Documents

    Jump to:

    Programming Specification

    Application Notes

    Download All
    07/30/2012
    1414KB

    Applications Source code

    02/25/2014
    3307KB
    11/25/2014
    5KB
    08/13/2014
    197KB
    05/30/2017
    3028KB
    02/09/2016
    1497KB
    09/09/2015
    1144KB
    01/21/2016
    684KB
    01/21/2016
    417KB
    02/17/2016
    1760KB

    Code Examples

    12/15/2009
    6KB

    Product Document

    Tips and Tricks

    Development Environment

    • Emulators & Debuggers
    • Programmers
    • Demo & Evaluation Boards
    • Code Examples
    Emulators & Debuggers
    MPLAB PICkit 4 In-Circuit Debugger
    MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

    Fast programming, increased functionality, at the same price as its predecessor.


    The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC®, AVR, SAM and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE), version 4.15. The MPLAB

    ...

    Learn More
    Add To Cart
    MPLAB ICD 4 In-Circuit Debugger
    MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

    The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

    ...

    Learn More
    Add To Cart
    PICkit 3 In-Circuit Debugger
    PICkit 3 In-Circuit Debugger ( PG164130 )
    (Not Recommended for new design)

    The PICkit 3 is not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please see the MPLAB PICKit 4.

    Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to

    ...

    Learn More
    Add To Cart
    MPLAB ICD 3 In-Circuit Debugger
    MPLAB ICD 3 In-Circuit Debugger ( DV164035 )
    (Not Recommended for new design)

     The MPLAB ICD 3 is a mature product and no new device support will be added to it as of June 1, 2019. For new designs, consider using the MPLAB ICD 4 (DV164045)

    MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for

    ...

    Learn More
    Add To Cart
    MPLAB REAL ICE PROBE KIT
    MPLAB REAL ICE PROBE KIT ( DV244005 )
    (Not Recommended for new design)



    Not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please consider the MPLAB ICD 4 (DV164045).

    MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for

    ...


    Learn More
    Add To Cart
    Programmers
    MPLAB PICkit 4 In-Circuit Debugger
    MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

    Fast programming, increased functionality, at the same price as its predecessor.


    The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC®, AVR, SAM and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE), version 4.15. The MPLAB

    ...

    Learn More
    Add To Cart
    MPLAB ICD 4 In-Circuit Debugger
    MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

    The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

    ...

    Learn More
    Add To Cart
    PICkit 3 In-Circuit Debugger
    PICkit 3 In-Circuit Debugger ( PG164130 )
    (Not Recommended for new design)

    The PICkit 3 is not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please see the MPLAB PICKit 4.

    Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to

    ...

    Learn More
    Add To Cart
    MPLAB PM3 Universal Device Programmer
    MPLAB PM3 Universal Device Programmer ( DV007004 )

    The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

    • Socket: AC164301   PartNo: PIC16F1615 (14P)
    Learn More
    Add To Cart
    MPLAB ICD 3 In-Circuit Debugger
    MPLAB ICD 3 In-Circuit Debugger ( DV164035 )
    (Not Recommended for new design)

     The MPLAB ICD 3 is a mature product and no new device support will be added to it as of June 1, 2019. For new designs, consider using the MPLAB ICD 4 (DV164045)

    MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for

    ...

    Learn More
    Add To Cart
    MPLAB REAL ICE PROBE KIT
    MPLAB REAL ICE PROBE KIT ( DV244005 )
    (Not Recommended for new design)



    Not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please consider the MPLAB ICD 4 (DV164045).

    MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for

    ...

    Learn More
    Add To Cart
    Demo & Evaluation Boards
    PIC16(L)F1619 Emulation Extension Pak
    PIC16(L)F1619 Emulation Extension Pak ( AC244066 )

    The PIC16(L)F1619 Emulation Extension Pak (Part # AC244066) is a cost effective in-circuit emulator system designed to assist with the most complex code debugging jobs. This advanced development/debugging tool includes an Emulation Header board, Trace Cable, Trace Adapter Board, and gold header pins, and is intended to be paired with MPLAB REAL ICE. It is the first in a series of Emulation...

    Learn More
    Add To Cart
    Curiosity
    Curiosity ( DM164137 )

    Satisfy Your Curiosity
    Your next embedded design idea has a new home. Curiosity is a cost-effective, fully integrated 8-bit development platform targeted at first-time users, Makers, and those seeking a feature-rich rapid prototyping board. Designed from the ground-up to take full advantage of Microchip's MPLAB X development environment, Curiosity includes an integrated programmer/debugger,...

    Learn More
    Add To Cart
    Code Examples

    Similar Devices

    Product
    Pins
    Flash (KB)
    RAM (B)
    Price 5K
    Notes
    8
    3.5
    256
    $0.56
    WWDT & CRC w/Scan
    14
    3.5
    256
    $0.60
    WWDT & CRC w/Scan
    14
    7
    512
    $0.70
    AngTMR & MathACC
    14
    14
    1,024
    $0.81
    AngTMR & MathACC
    20
    7
    512
    $0.74
    AngTMR & MathACC
    20
    14
    1,024
    $0.85
    AngTMR & MathACC

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (Kg)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    PIC16F1615-E/ML
    0.041700
    0.076923
    16
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    PIC16F1615-I/ML
    0.041700
    0.076923
    16
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    PIC16F1615T-I/ML
    0.041700
    0.212121
    16
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    PIC16F1615T-E/ML
    0.041700
    0.212121
    16
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    PIC16F1615-E/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    PIC16F1615-E/STVAO
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    PIC16F1615-I/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    PIC16F1615T-E/STVAO
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    PIC16F1615T-I/ST
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    PIC16F1615-E/SL
    0.143200
    0.280702
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    PIC16F1615-I/SL
    0.143200
    0.280702
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    PIC16F1615T-I/SL
    0.143200
    0.325000
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    PIC16F1615-E/P
    0.953300
    1.833333
    14
    PDIP
    .300in
    Matte Tin
    e3
    PIC16F1615-I/P
    0.953300
    1.833333
    14
    PDIP
    .300in
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
