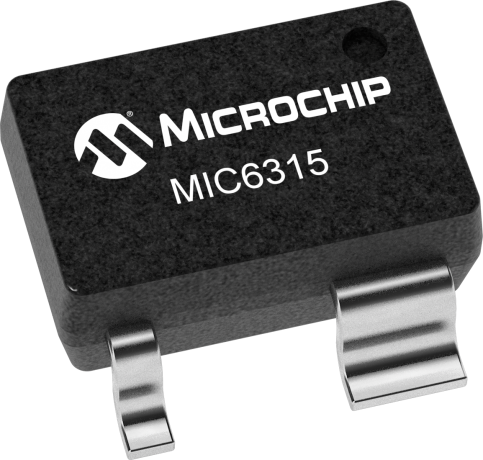

product primary image

MIC6315

Reset Generator, Active Low, 2.63V VTH, Manual Reset

Status: In Production

Features:

  • Precision voltage monitor for 3V, 3.3V, or 5V power supplies
  • /RESET remains valid with VCC as low as 1V
  • 5µA supply current
  • 20ms, 140ms, or 1100ms minimum reset pulse widths available
  • Manual reset input
  • Available in 4-pin SOT-143 package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC6315 is an inexpensive reset generator circuit that monitors power supplies in microprocessor-based systems.

The function of this device is to assert a reset if either the power supply drops below a designated reset threshold level or /MR is forced low. Several different reset threshold levels are available to accommodate 3V, 3.3V, or 5V powered systems.

The MIC6315 has an active low, open-drain /RESET output. The reset output is guaranteed to remain asserted for a minimum of either 20ms, 140ms, or 1100ms after VCC has risen above the designed reset threshold level. The MIC6315 is available in a 4-pin SOT-143 package.

Additional Features
    • Precision voltage monitor for 3V, 3.3V, or 5V power supplies
    • /RESET remains valid with VCC as low as 1V
    • 5µA supply current
    • 20ms, 140ms, or 1100ms minimum reset pulse widths available
    • Manual reset input
    • Available in 4-pin SOT-143 package
Parametrics
Name
Value
Product Type
Supervisor
Manual Reset
Yes
Operating Temp. Range (°C)
-40 to 85
Vcc Range (V)
1.4 - 5.5
Nominal Reset Voltage (V)
2.63, 2.93, 3.00, 3.08, 4.00, 4.10, 4.38, 4.63
Reset Type
Active Low
Output
Open-Drain
Typical Supply Current (µA)
5

Documents

Jump to:

Data Sheets

11/09/2015
502KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC6315-26D2UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-29D2UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-44D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-46D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-26D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-31D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-46D2UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-30D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-40D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-44D2UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-46D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-30D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-41D2UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-42D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-30D2UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-26D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-29D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-29D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-31D2UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-31D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-40D2UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-40D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-41D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-41D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-44D3UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC6315-25D4UY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
