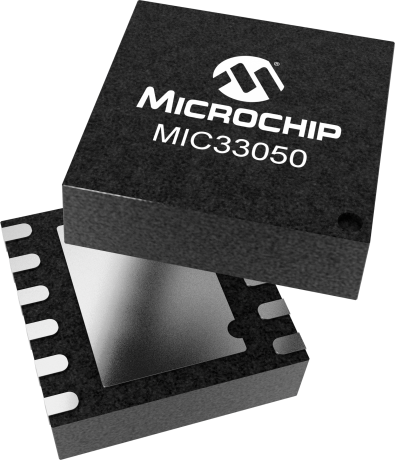

product primary image

MIC33050

High Efficiency 600mA Inductor-less Buck Regulator Power Module w/Hyper Light Load™

Status: In Production

Features:

  • Input voltage range: 2.7V to 5.5V
  • Fixed output voltage options from 0.72V to 3.3V
  • Output current guaranteed up to 600mA
  • Ultra fast transient response
  • 20µA typical quiescent current
  • 4MHz in PWM in constant current mode
  • HyperLight Load® mode
  • No external inductor required
  • 25mVpp in HyperLight Load®mode
  • 3mV output voltage ripple in full PWM mode
  • >93% efficiency
  • >83% at 1mA
  • Fully integrated MOSFET switches
  • Micropower shutdown
  • Thermal shutdown and current limit protection
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC33050 is a high efficiency 600mA PWM synchronous buck (step-down) regulator with internal inductor featuring HyperLight Load®, a patent-pending switching scheme that offers best-in-class light load efficiency and transient performance while providing very small external components and low output ripple at all loads. The MIC33050 also has a very low typical quiescent current draw of 20µA and can achieve over 83% efficiency even at 1mA. In contrast to traditional light load schemes, the HyperLight Load® architecture does need not trade off control speed to obtain low standby currents and in doing so, the device only needs a small output capacitor to absorb the load transient as the powered device goes from light load to full load. At higher loads, the MIC33050 provides a constant switching frequency of greater than 4MHz while providing peak efficiencies greater than 93% The MIC33050 is available in fixed output voltage options from 0.72V to 3.3V thereby eliminating external feedback components. The MIC33050 is available in an 12-pin 3mm x 3mm with a operating junction range of -40°C to +125°C.

Additional Features
    • Input voltage range: 2.7V to 5.5V
    • Fixed output voltage options from 0.72V to 3.3V
    • Output current guaranteed up to 600mA
    • Ultra fast transient response
    • 20µA typical quiescent current
    • 4MHz in PWM in constant current mode
    • HyperLight Load® mode
    • No external inductor required
    • Low voltage output ripple
      • 25mVpp in HyperLight Load®mode
      • 3mV output voltage ripple in full PWM mode
    • >93% efficiency
    • >83% at 1mA
    • Fully integrated MOSFET switches
    • Micropower shutdown
    • Thermal shutdown and current limit protection
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Input Voltage Range (V)
2.7 to 5.5
Output Voltage (V)
1.0, 1.2, 1.8, 3.3, Adj
Operating JunctionTemp. Range (°C)
-40 to +125
Control Scheme
PWM
Vout Max (V)
3.3
Output Current (A)
0.6
HyperLight Load®
Yes
