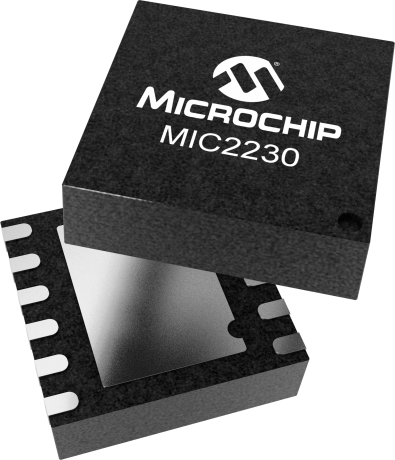

product primary image

MIC2230

High Efficiency Dual 800/800mA Buck Switcher

Status: In Production

Features:

  • High Efficiency: Over 96%
  • Ultra-low quiescent current: Only 28µA
  • Ultra-low shutdown current less than 1µA
  • Fast transient performance
  • 2.5MHz PWM operation
  • High output current capability per channel: 800mA
  • No Schottky Diodes Required
  • Stable with 2.2µH inductor, 2.2µF ceramic cap
  • Adjustable output voltage down to 0.8V
  • Built-in soft-start circuitry
  • Current limit protection
  • Automatic switching into light load mode operation
  • /FPWM pin allows low noise all-PWM mode operation
  • Power good output with internal 5μA current source allows sequencing with programmable delay time
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2230 is dual output, high-efficiency synchronous step-down DC/DC converter. The MIC2230 is ideally suited for portable systems which demand high power conversion efficiencies and fast transient performance, while offered in a very small package. The MIC2230 offers an ultra-low quiescent current in light load mode assuring minimum current draw from battery powered applications in standby modes. The MIC2230 was designed to only require miniature 2.2µH inductors and 10µF ceramic capacitors.

The MIC2230 features a selectable mode that allows the user to trade-off lowest noise performance for low power efficiency. Trickle Mode™ operation provides ultra-high efficiency at light loads, while PWM operation provides very low ripple noise performance. To maximize battery life in low-dropout conditions, MIC2230 can operate with a maximum duty cycle of 100%.

Additional Features
    • High Efficiency: Over 96%
    • Ultra-low quiescent current: Only 28µA
    • Ultra-low shutdown current less than 1µA
    • Fast transient performance
    • 2.5MHz PWM operation
    • High output current capability per channel: 800mA
    • No Schottky Diodes Required
    • Stable with 2.2µH inductor, 2.2µF ceramic cap
    • Adjustable output voltage down to 0.8V
    • Built-in soft-start circuitry
    • Current limit protection
    • Automatic switching into light load mode operation
    • /FPWM pin allows low noise all-PWM mode operation
    • Power good output with internal 5μA current source allows sequencing with programmable delay time



    Parametrics
    Name
    Value
    Vout Max (V)
    5.5
    Temp Range
    -40 to 125

    Documents

    Jump to:

    Development tools data is currently unavailable.

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (Kg)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    MIC2230-AAYML-TR
    0.023840
    0.644302
    12
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2230-GFHYML-TR
    0.023840
    0.644302
    12
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2230-GSYML-TR
    0.023840
    0.644302
    12
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2230-J4YML-TR
    0.023840
    0.644302
    12
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2230-G4YML-TR
    0.023840
    0.644302
    12
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2230-SSYML-TR
    0.023840
    0.644302
    12
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    MIC2230-S4YML-TR
    0.023840
    0.644302
    12
    VDFN
    3x3x0.9mm
    NiPdAu
    e4
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
