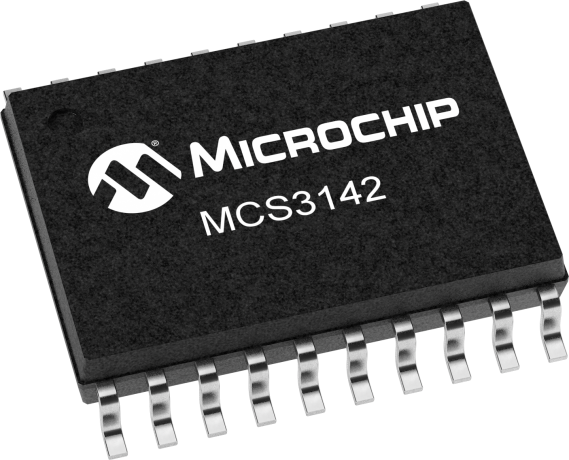

product primary image

MCS3142

Status: In Production

Features:

  • Ultimate KeeLoq Features
  • ■  Timer driven messages
  • ■  Time stamped events
  • ■  Industry standard AES-128 encryption
  • ■  Secure learn mode for pairing
  • ■  Time recovery after power loss
  • Operating Features
  • ■  Operating voltage 1.8–3.6V
  • ■  Operating temperature −40°C to 85°C: industrial
  • ■  20-pin TSSOP package
  • ■  1.8–3.6V operation
  • ■  Four switch inputs
  • ■  15 functions available
  • ■  Configurable button modes
  • ■  One active-low LED drive
  • ■  Configurable minimum code word completion
  • RF Transmitter Features
  • ■  Fully integrated transmitter
  • ■  Operation in 310–928 MHz
  • ■  Configurable bit rate
  • ■  Configurable modulation, supporting OOK and FSK
  • ■  Configurable data modulation,  supporting PWM and Manchester
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The new  MCS3142 Dual KeeLoq  Encoder provides a complete turnkey solution utilizing the Ultimate KeeLoq  Protocol,  a new timer-based solution offering enhancements to the Classic KeeLoq  Protocol structure such as industry-standard AES-128 block cipher, programmable 32-bit serial number, programmable 128-bit encryption key and KeeLoq  Secure Learn Mode (128-bit Seed). It incorporates a timer-driven message counter which continuously increments, independent of events, to provide a better, more secure solution. The time-keeping functionality provides additional protection against capture and replay attack techniques.

The addition of our new Ultimate KeeLoq  Protocol provides the customer the ability to develop highly secure authentication applications for a variety of markets such as security systems (keypads, remote sensors and access control), remote keyless entry (automotive) and authentication (identity and property) applications.

Additional Features

Ultimate KeeLoq Features

■  Timer driven messages

■  Time stamped events

■  Industry standard AES-128 encryption

■  Secure learn mode for pairing

■  Time recovery after power loss

Operating Features

■  Operating voltage 1.8–3.6V

■  Operating temperature −40°C to 85°C: industrial

■  20-pin TSSOP package

■  1.8–3.6V operation

■  Four switch inputs

■  15 functions available

■  Configurable button modes

■  One active-low LED drive

■  Configurable minimum code word completion

RF Transmitter Features

■  Fully integrated transmitter

■  Operation in 310–928 MHz

■  Configurable bit rate

■  Configurable modulation, supporting OOK and FSK

■  Configurable data modulation,  supporting PWM and Manchester

Parametrics
Name
Value
Device Description
KEELOQ® Encoder Devices
Operating Voltage (V)
1.8-3.6
Function Codes
15
Transmission Code Length Bits
192
Code Hoppings Bits
128
Freq. Range
310-928MHz
Modulation
ASK/FSK
Output Power dBm
0/+10dBm
LEDs
1
Encryption Key Length
128
Seed Length
128
ICSP
Yes

Documents

Jump to:

Programming Specifications

Brochures

Development Environment

  • Integrated Development Environments
  • Programmers
  • Demo & Evaluation Boards
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Programmers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price as its predecessor, the PICkit™ 3.

The MPLAB PICkit 4 now has Programmer-to-Go functionality for 8-bit and 32-bit PIC MCUs. The firmware update comes with MPLAB X IDE v5.25. More to come!


The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and

...

Learn More
Add To Cart
MPLAB ICD 4 In-Circuit Debugger
MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

...

Learn More
Add To Cart
PICkit 3 In-Circuit Debugger
PICkit 3 In-Circuit Debugger ( PG164130 )
(Not Recommended for new design)

The PICkit 3 is not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please see the MPLAB PICKit 4.

Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to

...

Learn More
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164306   PartNo: MCS3142 (20ST)
Learn More
Add To Cart
MPLAB ICD 3 In-Circuit Debugger
MPLAB ICD 3 In-Circuit Debugger ( DV164035 )
(Not Recommended for new design)

 The MPLAB ICD 3 is a mature product and no new device support will be added to it as of June 1, 2019. For new designs, consider using the MPLAB ICD 4 (DV164045)

MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for

...

Learn More
Demo & Evaluation Boards
Wireless Security Remote Control Development Kit 433.92 MHz Ultimate KeeLoq
Wireless Security Remote Control Development Kit 433.92 MHz Ultimate KeeLoq ( DM182017-4 )

To support the new Ultimate KeeLoq protocol, we offer the Wireless Security Remote Control Development Kit, which is a demonstration and development platform for wireless security applications. The kit demonstrates two security protocols: Ultimate KeeLoq Protocol and Classic KeeLoq Protocol. It contains a four-button key fob transmitter based on the MCS3142.

Dual KeeLoq Encoder,...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCS3142T-I/ST
0.078000
0.200000
20
TSSOP
4.4mm
Matte Tin
e3
MCS3142-I/ST
0.078000
0.175676
20
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
