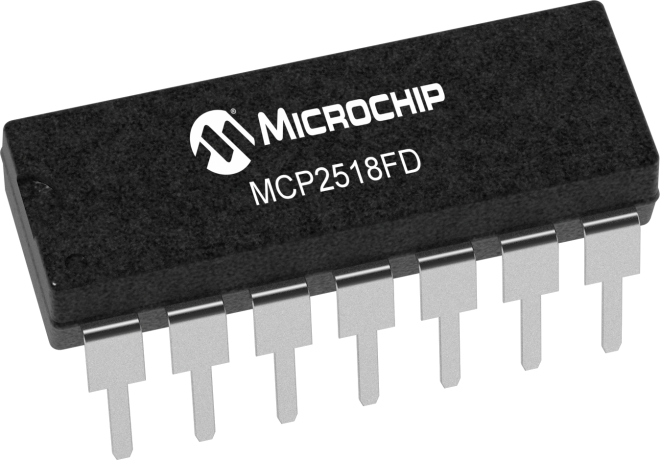

product primary image

MCP2518FD

External CAN FD Controller with SPI Interface

Status: In Production

Features:

  • Conforms to ISO11898-1:2015
  • Supports both CAN 2.0B and CAN FD
  • Data Bit Rate up to 8 Mbps
  • 32-bit Time Stamp
  • Temperature Range: -40°C to +150°C
  • VDD: 2.7V-5.5V
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP2518FD is a cost-effective and small-footprint External CAN FD Controller that can be easily added to a microcontroller with an available SPI interface.  Therefore, a CAN FD channel can be easily added to a microcontroller that is either lacking a CAN FD peripheral or that doesn't have enough CAN FD channels.

The MCP2518FD supports both CAN frames in the Classical format (CAN 2.0B) and CAN Flexible Data Rate (CAN FD) format as specified in ISO11898-1:2015.

Please see our MikroElektronika click Board! https://shop.mikroe.com/mcp2518fd-click

Please see our functional safety feature page CAN/CAN FD

Additional Features
  • Conforms to ISO11898-1:2015
    • Supports both CAN 2.0B and CAN FD
    • Arbitration Bit Rate up to 1 Mbps
    • Data Bit Rate up to 8 Mbps
    • Up to 20MHz SPI Clock Speed
  • Flexible FIFO setup
    • 31 FIFOs configurable as transmit or receive
    • 32 Flexible Filter and Mask Objects
    • One Transmit Queue
  • Misc
    • 32-bit Time Stamp
    • Bus Health Diagnostics and Error Counters
    • Temperature Range: -40°C to +150°C

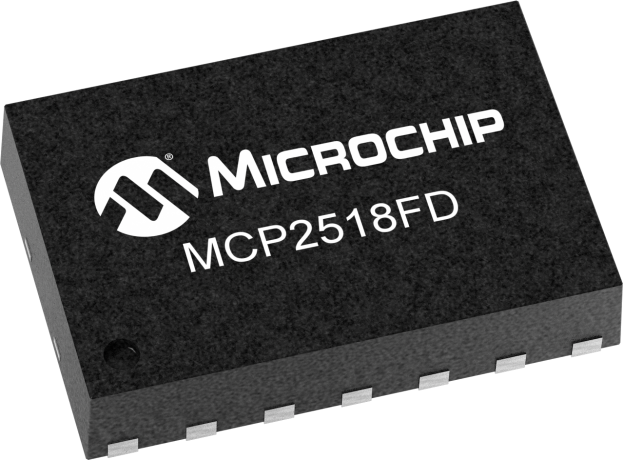

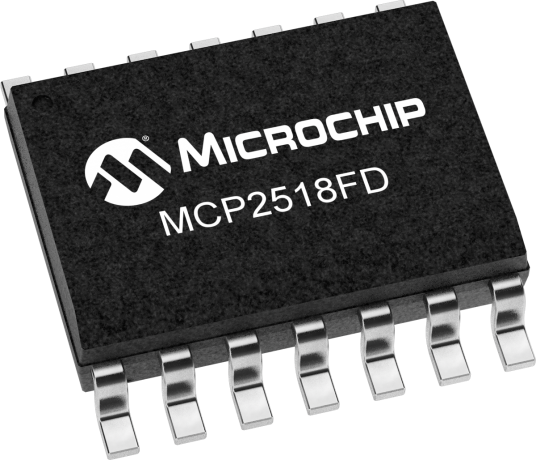

    • Packages: VDFN14 (Wettable Flanks), SOIC14
  • Low power consumption
    • Low power mode current: 10uA, Max
    • VDD: 2.7V-5.5V
    • Active Current Max: 12mA @ 5.5V, 40 MHz CAN Clock
  • Built-In Safety features
    • Loopback mode
    • SPI commands with CRC to detect noise on SPI interface
    • ECC for the SRAM 1 bit correction, 2 bit detection
Parametrics
Name
Value
Version Supported
Yes
Masks
32
Filters
32
Temp. Range (°C)
-40 to 150
Operating Voltage Range (V)
2.7 to 5.5

Documents

Jump to:

Data Sheets

04/24/2019
1063KB

Software Libraries/Firmware

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP251xFD CAN FD Mother Board
MCP251xFD CAN FD Mother Board ( ADM00576 )

The MCP251xFD CAN FD Mother Board provides a simple, low-cost board to evaluate
the MCP2517FD and MCP2518FD families of devices. The board features one mikroBUS™ socket to
accommodate the MCP2517FD or the MCP2518FD click Board.
The MCP251xFD CAN FD Mother Board together with the MCP2517FD or the MCP2518FD click Board
can be used to implement a CAN FD

...

Learn More
Add To Cart
Automotive Networking Development Board
Automotive Networking Development Board ( ADM00716 )

The Automotive Networking Development Board is a low-cost modular development system for Microchip’s 8-bit, 16-bit, and 32-bit microcontrollers targeting CAN and LIN network related applications. The board supports devices using the 100 pin Plug-In Module (PIM) connector for easy device swapping. The board has four Mikrobus™ sockets which allow the user the ability to develop with a...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP2518FDT-E/QBB
0.035800
0.158333
14
VDFN
3x4.5x0.9mm
Matte Tin
e3
MCP2518FDT-H/QBB
0.035800
0.158333
14
VDFN
3x4.5x0.9mm
Matte Tin
e3
MCP2518FDT-H/QBBVAO
0.035800
0.158333
14
VDFN
3x4.5x0.9mm
Matte Tin
e3
MCP2518FDT-E/QBBVAO
0.035800
0.158333
14
VDFN
3x4.5x0.9mm
Matte Tin
e3
MCP2518FDT-H/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2518FDT-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2518FDT-H/SLVAO
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2518FDT-E/SLVAO
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
