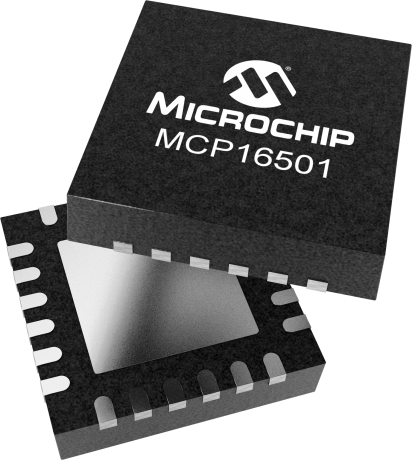

product primary image

MCP16501

Cost and Size Optimized PMIC for eMPU

Status: In Production

Features:

  • Input Voltage: 2.7V to 5.5V
  • Three 1A Output Current Buck Channels with 100% Maximum Duty Cycle Capability
  • One Auxiliary 300 mA Low-Dropout Linear Regulator (LDO)
  • Pin-Selectable Output Voltages for DDR Supply
  • Built-in Channel Sequencing, Safe Start-up and Reset Assertion Delay
  • Support of Hibernate and Low-Power modes
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The MCP16501 is a cost and size optimized integrated PMIC, compatible with the latest Microchip’s Microprocessor Units (MPU) and associated DRAM Memories. The SAMA5, SAM9X60 and SAMA7G54 series MPUs are supported by dedicated PMIC variants programmed for the different supply voltages and power sequencing requirements.

The MCP16501 integrates three DC-DC Buck regulators and one auxiliary LDO, and provides a comprehensive interface to the MPU. All Buck channels can support loads up to 1A and are 100% duty cycle- capable. The 300 mA LDO is provided such that sensitive analog loads can be supported. The DDR memory voltage (Buck2 output) is selectable by means of a 3-state input pin. This method allows greater precision in the output voltage setting by eliminating inaccuracies due to external feedback resistors, while minimizing external component count. The voltage selection set allows easy migration across different generations of memory. The default power channel sequencing is built-in and configured to the requirements of the MPU. A dedicated pin (LPM) facilitates the transition to Low-Power modes and the implementation of Backup mode with DDR in self-refresh (Hibernate mode). The MCP16501 features a low no-load operational quiescent current and it draws less than 10 μA in full shutdown. Active discharge resistors are provided on each output. All Buck channels support safe start-up into pre-biased outputs.

The MCP16501 is available in a 24-pin 4 mm x 4 mm VQFN package with an operating junction temperature range from -40°C to +125°C.

Additional Features
  • Input Voltage: 2.7V to 5.5V
  • Three 1A Output Current Buck Channels with 100% Maximum Duty Cycle Capability
  • 2 MHz Buck Channels PWM Operation
  • ±1% Voltage Accuracy for DDR (Buck2 Output) and Core (Buck3 Output)
  • Low Noise, Forced PWM (FPWM) and Low IQ, Light Load, High-Efficiency Mode Available
  • One Auxiliary 300 mA Low-Dropout Linear Regulator (LDO)
  • Pin-Selectable Output Voltages for DDR Supply
  • Built-in Channel Sequencing, Safe Start-up and Reset Assertion Delay
  • Support of Hibernate and Low-Power modes
  • Leakage-Free Interfacing to MPU in any Operating Condition through Optimized ESD Protection
  • 250 μA Low-Power Mode Typical Quiescent Current (Bucks and LDO ON, No Load)
  • 10 μA Maximum Shutdown Current
  • Cost and Size-Optimized BOM
  • Thermal Shutdown and Current Limit Protection
  • 24-Pin 4 mm × 4 mm QFN Package
  • -40°C to +125°C Junction Temperature Range
Parametrics
Name
Value
Vout Max (V)
3.7
Freq (Hz)
2000
Duty Cycle Max
100
Temp Range
-40 to +125C
LDO
1 Auxiliary
LOWQ Mode
Yes
Type
PMIC
Iq Operating
< 250uA
Iq Off (µA)
< 10uA
VIN Max (V)
5.5
VIN Min (V)
2.7

Documents

Jump to:

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP16501 Evaluation Board
MCP16501 Evaluation Board ( ADM01123 )

MCP16501 evaluation boards are used to evaluate the MCP16501 PMIC. This is an addition to MCP1650x brand new family of PMICs targeted for MPU power. The board will not include I2C communication, as the IC does not support this, but it will still support load transient testing and voltage setting for the channels and stability analysis testing. Dimensions are similiar with the MCP16502 eval board.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP16501TA-E/RMB
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TE-E/RMB
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TB-E/RMB
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TC-E/RMB
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TD-E/RMB
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TA-E/RMBVAO
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TB-E/RMBVAO
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TC-E/RMBVAO
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TD-E/RMBVAO
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
MCP16501TE-E/RMBVAO
0.000000
0.079500
24
VQFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
