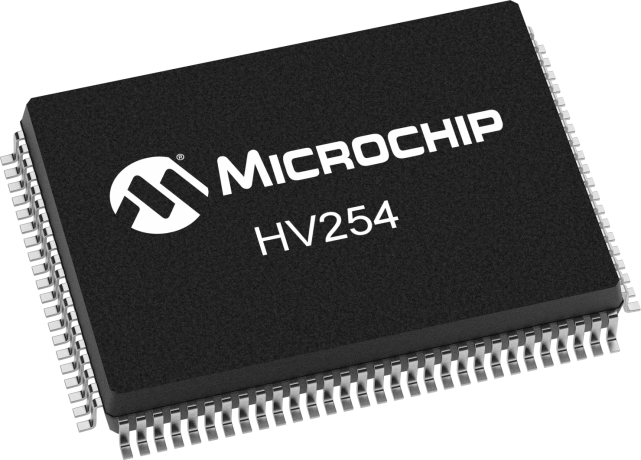

product primary image

HV254

32-Channel High Voltage Amplifier Array

Status: In Production

Features:

  • 32 independent high voltage amplifiers
  • Up to 250V output voltage
  • 3.0V/µs typical output slew rate
  • Very low operating current (typically 45µA per channel)
  • High value internal feedback resistors
  • Fixed gain of 50V/V
  • Integrated silicon diode for temperature sensing
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

HV254 is a 32-channel, high voltage, amplifier array integrated circuit. It operates on a 275V high voltage supply and two low voltage supplies: +5.0V and -5.0V. Each channel has its own input and output. An integrated diode is included to help monitor die temperature. The input voltage can be from a DAC (Digital to Analog Converter) with a voltage range of 0V to the low voltage supply, V+. The output of the HV254 will swing from 7.0 to 250V. It cannot swing to ground. With the internal gain set at 50V/V, a minimum input signal of 140mV will still maintain linearity. Input voltages below 140mV can be applied without damage to the device. However, the amplifier will be saturated. Typical output load is equivalent to a 125MΩ resistor in parallel with a 100pF capacitor. The outputs have a guaranteed slew rate of at least 3.0V/µs. The internal closed loop gain is set at a nominal value of 34.0dB (50V/V). The HV254 is designed to operate with minimal power consumption while maintaining a guaranteed slew rate of 3.0V/µs. High value resistors are used for the gain setting to minimize current on the feedback path.

Additional Features
    • 32 independent high voltage amplifiers
    • Up to 250V output voltage
    • 3.0V/µs typical output slew rate
    • Very low operating current (typically 45µA per channel)
    • High value internal feedback resistors
    • Fixed gain of 50V/V
    • Integrated silicon diode for temperature sensing
Parametrics
Name
Value
Slew Rate (V/µs)
3
Closed Loop Gain (V/V)
50
Feedback Resistance (M Ω)
12
HVOUT Source max (µA)
300
HVOUT Sink max (µA)
300
HVOUT Capacitive Load max (pF)
100
Output Current Limit
Amp only
Package
MQFP-100

Documents

Jump to:

User Guides


840KB

Development tools data is currently unavailable.

Similar Devices

Product
Slew Rate
Closed Loop Gain
Feedback Resistance
Price 5K
3
50
12
$78.19
2
72
12
$122.47
2
72
12
$145.39
9
66.7
5.3
$5.19
0.02
82
4.9
$10.26

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV254FG-G
0.725800
12.121212
100
MQFP
14x20x3.15mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
