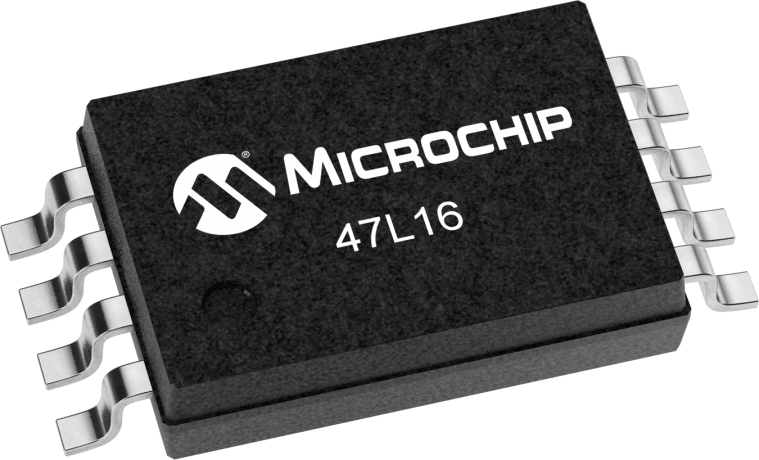

47L16

16Kb 2.7-3.6V I2C Serial EERAM - SRAM with EEPROM Back Up

Status: In Production

Features:

  • Automatic Store to EEPROM upon power-down (using optional external capacitor)
  • Automatic Recall to SRAM Array upon power-up
  • Hardware Store Pin for manual Store Operations
  • Software commands for initiating Store and Recall Operations
  • Store Time 40ms (max)
  • 2.7V -3.6V Operation
  • High-Speed I2C Interface (Up to 1MHz)
  • Non-Volatile External Event Detect Flag
  • Infinite Read and Write Cycles to SRAM Array
  • More than 1 Million Store Cycles to EEPROM
  • Data Retention: >200 Years
  • ESD Protection: >2,000V
  • Reliable Data Storage during Power Loss
  • 1mA active current (typ)
  • 40uA Standby Current  (max)
  • Software Write Protection from 1/64 of SRAM array to whole array
  • Zero Cycle delay reads and writes
  • Cascadable up to four devices
  • Industrial(I): -40oC to +85oC
  • Automotive (E): -40oC to +125oC
  • 8-Lead PDIP, SOIC and TSSOP Packages
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The Microchip Technology Inc 47L16 EERAM is a 16Kbit SRAM with EEPROM Backup. The I2C EERAM Memory is a Low-Cost NVSRAM that Eliminates the Need for an External Battery to Retain Data. The device is organized as 2048 x 8 bits and utilizes the I2C serial interface. The 47L16 provides infinite read and write cycles to the SRAM while the EEPROM cells provide high endurance non-volatile storage of Data. With an external capacitor, SRAM data is automatically transferred to the EEPROM upon power-loss. Data can also be transferred manually by using either the hardware store pin or by software control. Upon power-up, the EEPROM data is automatically recalled to the SRAM. Recall can also be initiated through software control. The unlimited endurance makes the EERAM useful in applications that need to constantly monitor or record data.

The 47L16 EERAM has a 2.7-3.6V operating voltage range and is available in 8-lead SOIC, TSSOP and PDIP packages. The EERAM works from -40C to 125C and is automotive grade qualified.

Additional Features
    • 16Kbit SRAM with EEPROM Back Up
      • Automatic Store to EEPROM upon power-down (using optional external capacitor)
      • Automatic Recall to SRAM Array upon power-up
      • Hardware Store Pin for manual Store Operations
      • Software commands for initiating Store and Recall Operations
      • Store Time 40ms (max)
    • 2.7V -3.6V Operation
    • High-Speed I2C Interface (Up to 1MHz)
    • Non-Volatile External Event Detect Flag
    • High Reliability:
      • Infinite Read and Write Cycles to SRAM Array
      • More than 1 Million Store Cycles to EEPROM
      • Data Retention: >200 Years
      • ESD Protection: >2,000V
      • Reliable Data Storage during Power Loss
    • Low Power CMOS Technology:
      • 1mA active current (typ)
      • 40uA Standby Current  (max)
    • Write Protection:
      • Software Write Protection from 1/64 of SRAM array to whole array
    • Zero Cycle delay reads and writes
    • Cascadable up to four devices
    • Available Temperature Ranges:
      • Industrial(I): -40oC to +85oC
      • Automotive (E): -40oC to +125oC
    • 8-Lead PDIP, SOIC and TSSOP Packages
Parametrics
Name
Value
Density
16K bits (x8)
Op. Volt Range (V)
2.7 to 3.6
Max. Clock Freq.
1 MHz
Page Size (bytes)
16
Write Protect
Quarter, Half, Whole Array
Temp Range (°C)
-40°C to +125°C
Endurance
Unlimited
Data Retention (Years)
200

Documents

Jump to:

IBIS

10/17/2016
201KB

Verilog

Development Environment

  • Demo & Evaluation Boards
  • Programmers
  • Application Examples
Demo & Evaluation Boards
EERAM I2C PICtail Kit
EERAM I2C PICtail Kit ( AC500100 )

The EERAM I²C PICtail™ Kit demonstrates the features and abilities of the 47C04 and 47L16 I²C EERAM devices in standard development platforms. By designing this daughter board with the PICtail Plus and mikroBUS™ connectors, it will operate with the Explorer 8 Development Board, the Explorer 16/32 Development Board, and many other tools. Package contents includes an Info Sheet...

Learn More
Add To Cart
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164344   PartNo: 47L16 (8SN)
  • Socket: AC164344   PartNo: 47L16 (8P)
  • Socket: AC164365   PartNo: 47L16 (8ST)
Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
16K
1 MHz
PDIP-8, SOIC 150mil-8, TSSOP-8
$0.58
4K
1 MHz
PDIP-8, SOIC 150mil-8, TSSOP-8
$0.58

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
47L16-E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
47L16-I/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
47L16T-I/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
47L16T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
47L16-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
47L16-I/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
47L16-E/ST
0.033000
0.090000
8
TSSOP
4.4mm
Matte Tin
e3
47L16T-E/ST
0.033000
0.215600
8
TSSOP
4.4mm
Matte Tin
e3
47L16-I/ST
0.033000
0.090000
8
TSSOP
4.4mm
Matte Tin
e3
47L16T-I/ST
0.033000
0.215600
8
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
