Insulated-Gate Bipolar Transistor (IGBT) Modules

Solutions to Control and Convert Electrical Power in Mid- to High-Power Applications

Merging the high efficiency and rapid switching capabilities of MOSFETs with the high voltage and current handling capacities of bipolar transistors, Insulated-Gate Bipolar Transistor (IGBT) power modules are essential components in contemporary power electronics. These modules are utilized to control and convert electrical power in various applications, including industrial motor drives, renewable energy systems, Electric Vehicles (EVs) and power grids.

IGBT power modules consist of multiple IGBT chips and freewheeling diodes that are encapsulated in a single package, offering a compact and efficient solution for high-power applications. They provide benefits such as reduced power loss, high thermal stability and robust performance under demanding conditions, making them the most prevalent power modules used globally in mid- to high-power voltage applications.

IGBT Modules

IGBT Trench 3

  • Third-generation trench IGBT technology, offering improved performance over earlier planar designs
  • Key Features: Lower conduction losses, moderate switching speed, suitable for general-purpose industrial drives
Parametrics

IGBT Trench 4

  • Fourth-generation trench IGBT, optimized for further reduced losses and higher efficiency
  • Key Features: Lower switching and conduction losses than Trench 3, improved thermal performance, suitable for demanding industrial and motor control applications
Parametrics

IGBT Trench 4 Fast

  • Variant of Trench 4 designed for faster switching applications
  • Key Features: Enhanced switching speed, lower turn-off losses, optimal for applications requiring high-frequency operation (e.g., inverters, UPS)
Parametrics

IGBT Trench 5

  • Fifth-generation trench IGBT, offering further advancements in efficiency and reliability
  • Key Features: Even lower losses, higher ruggedness, improved short-circuit capability, suitable for high-performance industrial and automotive systems
Parametrics

IGBT Trench 7

  • Latest (seventh-generation) trench IGBT technology, leveraging advanced materials and design for maximum efficiency
  • Key Features: Up to 15–20% lower power losses compared to previous generations, reliable operation at elevated temperatures (up to 175°C), optimal for compact and cost-effective power modules
Parametrics

DualPack3

  • A specific module format (often using IGBT Trench 7) designed for compactness and simplified integration
  • Key Features: Compact dual-pack design, cost-effective, supports high-temperature operation, optimized for modern industrial and renewable energy applications
Parametrics
Featured

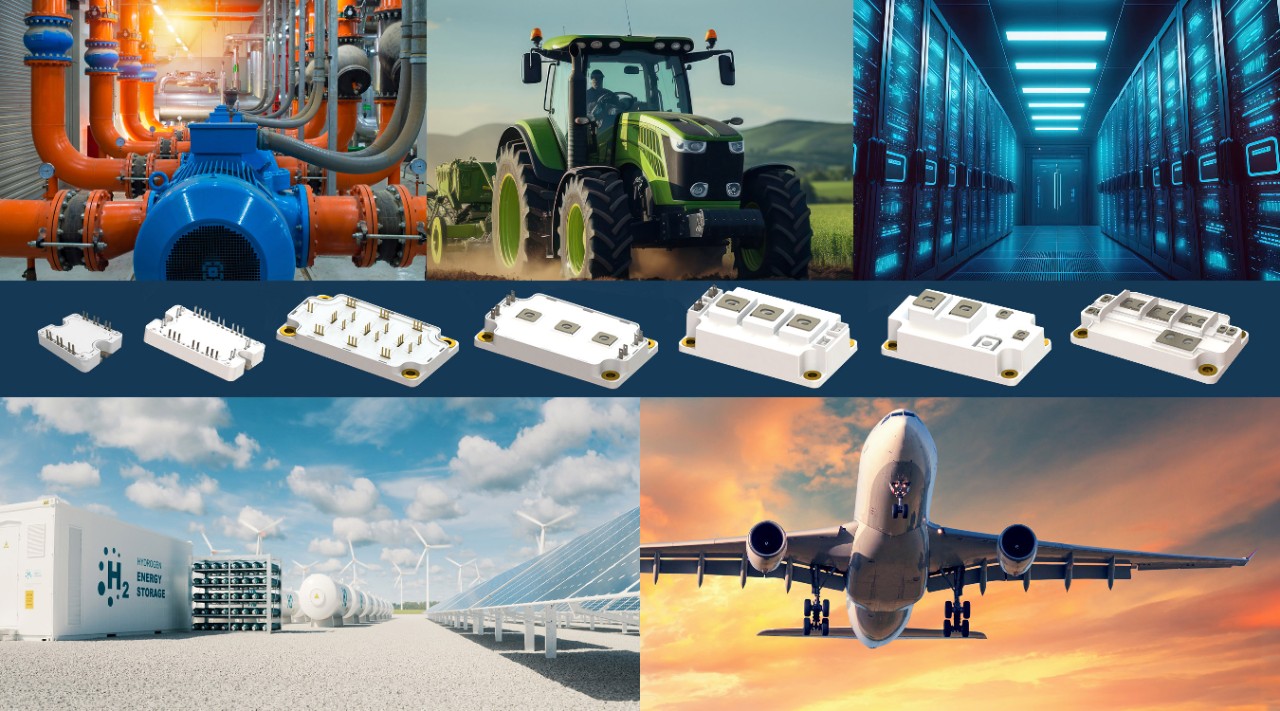

DualPack3 IGBT Modules

The latest DP3 power modules are engineered to meet the increasing demand for compact, cost-effective and simplified power converter solutions across a range of industries. Leveraging the latest IGBT7 technology, these modules achieve up to 15–20% lower power losses compared to previous IGBT4 devices and can reliably operate at elevated temperatures up to 175°C during overload conditions. This results in enhanced performance and precision for high-voltage switching applications, making DP3 modules excellent options for maximizing power density, reliability and user convenience in sectors such as industrial drives, renewable energy systems, traction, energy storage and agricultural vehicles.

Video

IGBT 7 Power Modules: Versatile High-Voltage, Low-Loss Solutions for Power Electronic Systems

Discover our versatile IGBT 7 power modules, offering increased current capability, lower losses and high efficiency in multiple package options. Covering voltages from 1200V to 1700V and currents up to 900A, these modules deliver power, precision and performance for diverse applications.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

Why Choose Our IGBT Power Modules?

Cost Effective

Widespread use across all applications enables economies of scale, availability and cost efficiency.

Ease of Use

IGBT modules are rugged in performance and easy to use due to their simple gate driving mechanism.

Fast Switching

IGBTs can switch on and off rapidly, which is crucial for applications that require precise control of power up to 50 KHz of switching frequency.

Applications

Electric Mobility (HEVs, EVs, CAVs and Airplanes)

IGBT power modules are integral to the powertrain of EVs and Hybrid Electric Vehicles (HEVs) and Construction and Agricultural Vehicles (CAVs). They are also used in actuation and propulsion of More Electric Aircrafts (MEAs). They are used in inverters, DC-DC converters and onboard chargers to manage the power flow between the battery, motor and other electrical components, enhancing the vehicle's performance and efficiency.

Industrial Motor Drives

IGBT power modules are widely used in Variable Frequency Drives (VFDs) and servo drives to control the speed and torque of electric motors in industrial machinery. They provide efficient and precise motor control, which is essential for automation and manufacturing processes.

Power Grids

In High-Voltage Direct Current (HVDC) transmission systems and Static Synchronous Compensators (STATCOMs), IGBT power modules are used to improve power distribution efficiency and grid stability. They enable long-distance power transmission with minimal losses and help in maintaining voltage levels within the grid.
