Flexible Arm® Cortex®-M0+ MCUs Delivering Efficiency, Reliability and Touch Innovation
Our PIC32CM16/32 GV00 and PIC32CM32/64 JH00 MCUs are built on the efficient Arm Cortex-M0+ core and offer scalable performance of up to 48 MHz with market-leading power efficiency and robust feature sets.
PIC32CM GV00/JH00 MCUs
PIC32CM16/32 GV00
Low Power, Rich Features, Faster Development
- Entry-level Arm® Cortex®-M0+ core with up to 48 MHz performance
- Ultra-low power operation from just 1.62V to 3.63V
- 256-channel capacitive touch, with up to 16-bit Analog-to-Digital Converter (ADC) and 10-bit Digital-to-Analog Converter (DAC)
- Great for IoT, consumer and sensor-rich applications
- Simplifies touch development and speeds time to market
PIC32CM32/64 JH00
Reliable Control, Robust Touch, Built for Harsh Environments
- Arm Cortex-M0+ core with up to 48 MHz performance
- Advanced motor control with Pulse-Width Modulation (PWM), dead-time, dithering and fault protection
- Strong analog and computation performance
- Proven 5V capacitive touch
- Reliable operation in harsh conditions
- Applicable for industrial automation, automotive and motor-driven systems
Key Features for Your Application
Lower Power Consumption Than Competitors
Engineered for Energy-Critical Applications
The PIC32CM16/32 GV00 and PIC32CM32/64 JH00 are optimized for low-energy using autonomous peripherals and flexible sleep modes. Features include
- SleepWalking
- Asynchronous clocks
- CPU-free peripheral communication
- Fast wake-up
Enhanced Capacitive Touch
Easy-to-Use Touch Libraries
The Peripheral Touch Controller (PTC) module supports up to 256 mutual capacitance channels for buttons, sliders and wheels using MPLAB® Harmony Touch Library. The PIC32CM64 JH00 variant boosts touch performance with extra Nested Vectored Interrupt Controller (NVIC) lines for faster response and Driven Shield+ technology for improved noise immunity, longer sensing distances and operation through thicker materials.
Reliability in Harsh Conditions
Robust Safety
The PIC32CM JH00 and GV00 MCUs are AEQ-100 qualified and offer robust safety, wide temperature ranges and error correction for reliable performance in harsh environments. Designed for mission-critical use, they offer stability, data integrity and flexible connectivity under extreme conditions.
Security With PDID and MPU
Hardware Attack Prevention
Programming and Debugging Interface Disable (PDID) provides hardware security by blocking external firmware access and preventing code theft. A one-time programmable lock and immutable bootloader enable secure updates. The PIC32CM JH0032 adds a memory protection unit to enforce memory access rules for safer operation.
- Tools
- Software

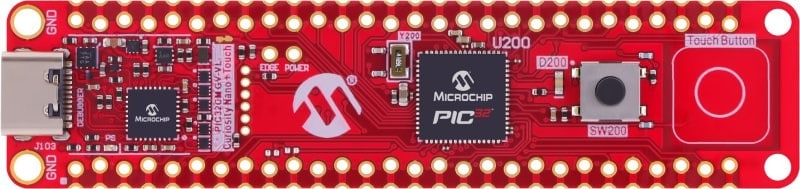

PIC32CM16/32 GV00-Value Line Curiosity Nano + Touch Evaluation Kit
Part Number: EV80D90A
The PIC32CM16/32 GV00-VL Curiosity Nano + Touch Evaluation Kit is a hardware platform to evaluate the PIC32CM3204GV00064 MCU. This board is supported by MPLAB® X IDE and MPLAB Harmony.

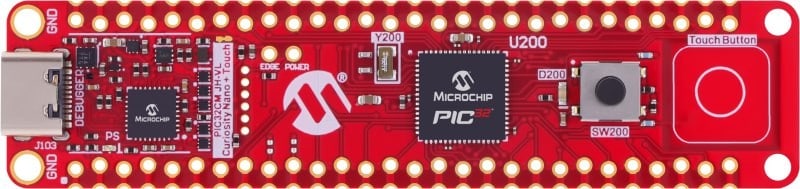

PIC32CM JH-Value Line Curiosity Nano + Touch Evaluation Kit
Part Number: EV16B95A
The PIC32CM JH-VL Curiosity Nano + Touch Evaluation Kit is a hardware platform to evaluate the PIC32CM6408JH00064 microcontroller (MCU). It provides general-purpose embedded control capabilities with an enhanced Peripheral Touch Controller (PTC) and functional safety features.
MPLAB® X Integrated Development Environment (IDE)
MPLAB X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of our MCUs and Digital Signal Controllers (DSCs). It works seamlessly with the MPLAB development ecosystem of software and tools, many of which are completely free.
MPLAB Harmony v3 Software Framework
MPLAB Harmony v3 is a flexible, fully integrated embedded software development framework for 32-bit MCUs. It enables robust framework development of interoperable Real-Time Operating System (RTOS)-friendly libraries with our quick and extensive product support for third-party software integration. MPLAB Harmony v3 includes a set of peripheral libraries, drivers and system services that are readily accessible for application development. The code development format allows for maximum reuse and reduces time to market.
MPLAB Extensions for VS Code®
Jump-start your projects with our MPLAB Extensions for VS Code, which offers a user-friendly interface and robust features tailored for Arm Cortex M0+ MCUs. Benefit from seamless project imports, intuitive debugging tools and the innovative MPLAB AI Coding Assistant. This AI-powered assistant provides real-time code generation, error detection and direct access to our data sheets so that you spend less time troubleshooting and more time innovating.
Target Applications
Automotive
- Door modules
- In-cabin capacitive touch
- Seat controls
- On-Board Diagnostics (OBD)
- Sensor nodes
- Body electronics
Capacitive Touch
- Home appliances
- Automotive door, center console and steering wheel controls
- Industrial controls
- Trackpads
- Keypads
Industrial
- Motor control
- I/O boards
- Industrial automation
- Programmable Logic Controllers (PLCs)
- PIC32CM16/32 GV00
- PIC32CM32/64 JH00
