Part Number: ETH-DC-DUALGBE

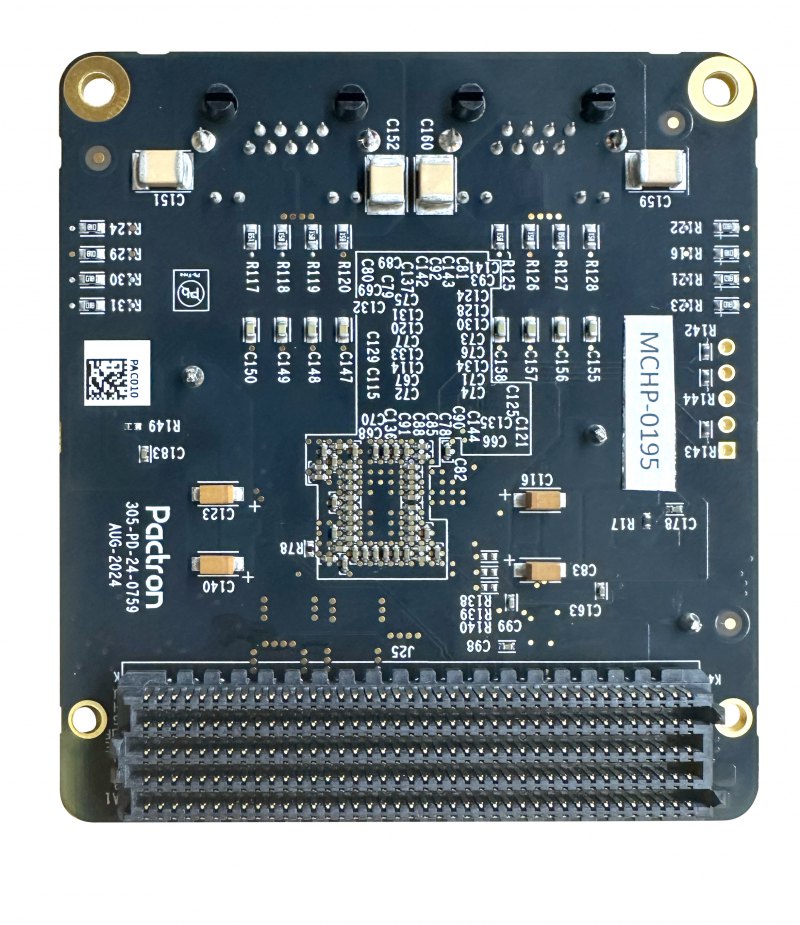

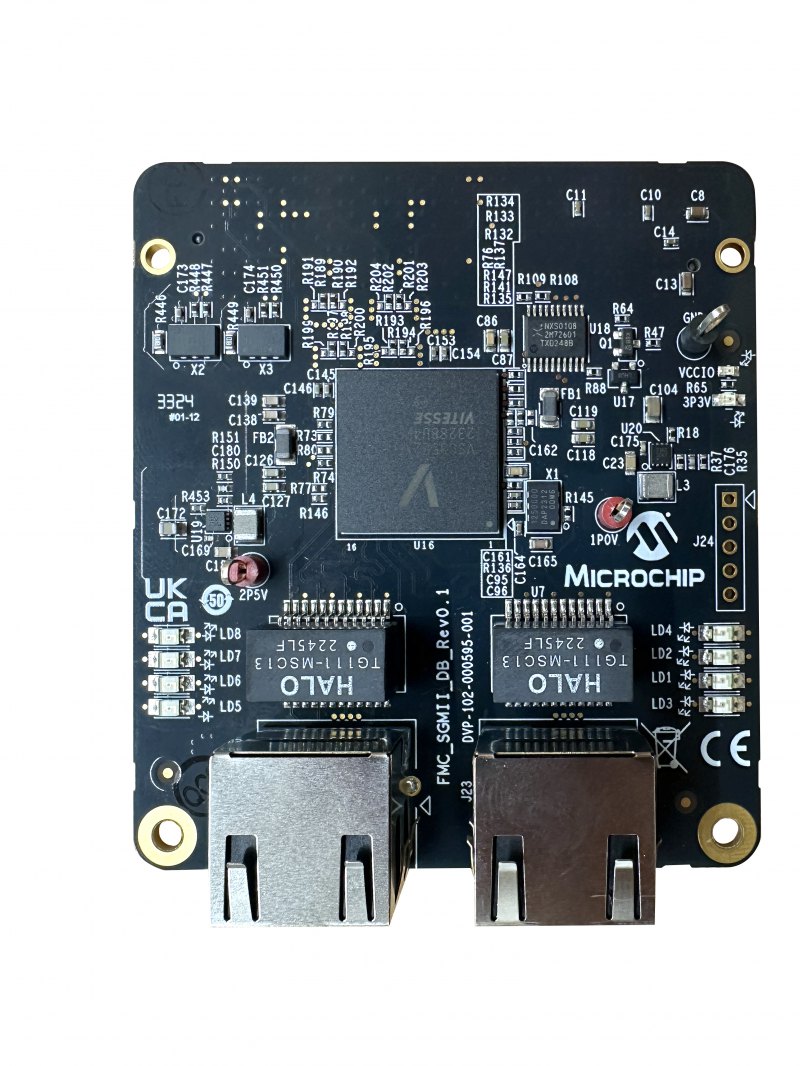

Dual-Port Gigabit Ethernet FMC


Key Features

  • Supports 10/100/1000 Mbps Ethernet
  • Supports IEEE 802.1-compliant Time-Sensitive Networking
  • 1x Vita 57.1 standard HPC FMC connector

Overview


Microchip’s PolarFire® and PolarFire® SoC FPGAs showcase IEEE 1588 TSN capabilities for real-time motor control and reliable Ethernet communication, with tools to speed TSN application development.

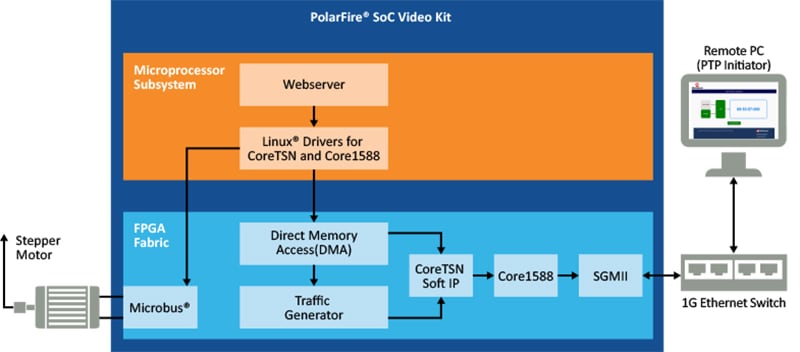

TSN Solution Block Diagram

The PolarFire® SoC Video Kit is required for use with the Dual-Port Gigabit Ethernet FMC.

Application Note AN5892 showcases how PolarFire SoC delivers real-time, time-synchronized Ethernet communication with TSN features such as traffic scheduling and PTP.

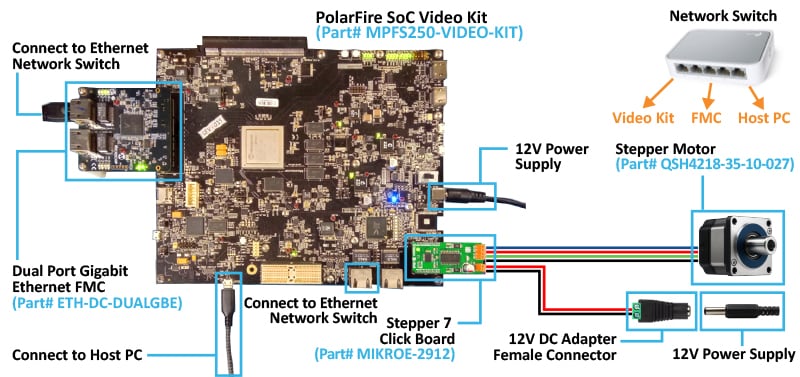

Dual-Port Gigabit Ethernet FMC Demo setup



Package Contents
  • Dual-Port Gigabit Ethernet FMC Daughter Board
  • Quickstart Card



Documentation


Title
Document Id
ETH-DC-DUALGBE Statement of Volatility Download bad11f04-0908-4697-b6d7-88d3f7d0d765
ETh-DC-DUALGBE Schematics Download a6af9178-94c1-414a-8f4c-34373fac96b5

Additional Resources


Licensing

Libero® SoC PolarFire Design Suite offers high productivity with its comprehensive, easy-to-learn, and easy-to-adopt development tools for designing with Microchip’s PolarFire FPGAs. The suite integrates industry standard Synopsys Synplify Pro synthesis and Mentor Graphics ModelSim simulation with best-in-class constraints management and debug capabilities.The PolarFire kit is now supported by a free Libero silver license.

Download the latest Libero SoC PolarFire release from Microchip website. Generate your free silver license at Microchip portal.
