Overview
This product is no longer available for sale.

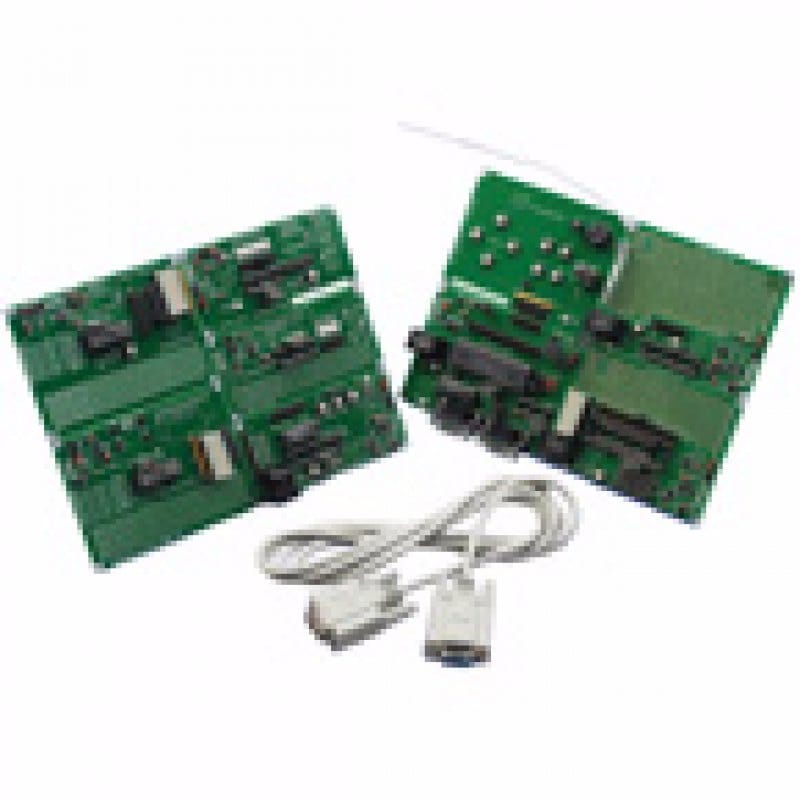

The PICDEM™ LIN board demonstrates the capabilities of several Microchip microcontrollers using the LIN bus protocol. It specifically supports slave node applications with PIC16C432, PIC16C433, PIC16C7XX and master node applications with PIC16X8X and PIC18FXX8. PIC16C432, PIC16C433 are the first industry microcontrollers with on board LIN transceivers according to LIN bus specification Version 1.2.
The PICDEM™ LIN board demonstrates the capabilities of several Microchip microcontrollers using the LIN bus protocol. It specifically supports slave node applications with PIC16C432, PIC16C433, PIC16C7XX and master node applications with PIC16X8X and PIC18FXX8. PIC16C432, PIC16C433 are the first industry microcontrollers with on board LIN transceivers according to LIN bus specification Version 1.2.
- 18-, 28- and 40-pin DIP sockets (although 3 sockets are provided, only one device may be used at a time
- On-board +12V regulator for direct input from 12V.
- RS-232C socket and associated hardware for direct connection to RS-232C interface
- CAN bus interface
- Control panel interface for LIN bus master
- RF stage for keyless entry function
- Seat memory unit
- Motor control slave unit
- Jumper to disconnect on-board RC oscillator
- Prototype area for custom user hardware
The PICDEM™ LIN board demonstrates the capabilities of several Microchip microcontrollers using the LIN bus protocol. It specifically supports slave node applications with PIC16C432, PIC16C433, PIC16C7XX and master node applications with PIC16X8X and PIC18FXX8. PIC16C432, PIC16C433 are the first industry microcontrollers with on board LIN transceivers according to LIN bus specification Version 1.2.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PICDEM LIN User's Guide | User Guide | Download |
