Overview

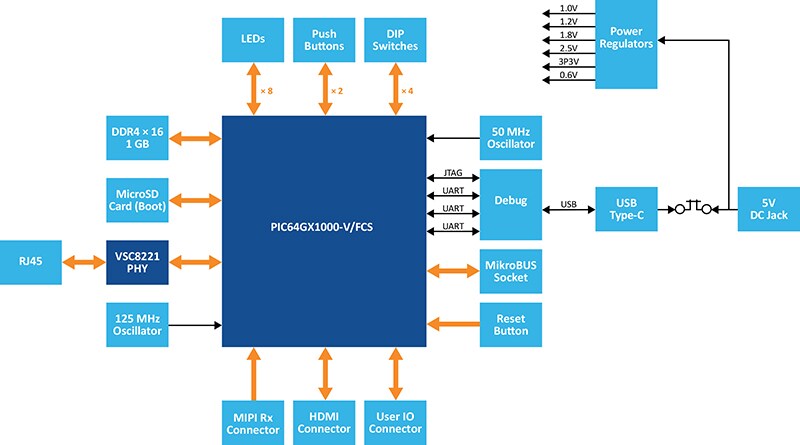

The Curiosity PIC64GX1000 Kit features a quad-core, 64-bit CPU cluster based on the RISC-V application-class processor that supports Linux® and real-time applications, a rich set of peripherals. The kit is ready for rapid testing of applications in an easy-to-use hardware development platform and offers a MikroBUS™ expansion header for Click boards™, a ™ MIPI® CSI 2 Rx connector, and an HDMI output. The expansion boards can be controlled using protocols like I2C and SPI. 1GB of DDR4 memory is available as well as a microSD® card slot for booting Linux. Communication interfaces include one Gigabit Ethernet connector and three UART connections via the USB type C connector and debug via the USB-to-JTAG channel.
- PIC64GX1000 MPU (PIC64GX1000-V/FCS)
- Four 64-bit RISC-V cores
- 1GB DDR4 memory
- One Gigabit Ethernet
- mikroBUS™ socket
- MIPI CSI-2 input (Raspberry Pi MIPI Connector)
- HDMI output
- Three UART
- One micro-SD interface
- USB debug interface
- Form factor 4” x 4"
- Curiosity PIC64GX1000 Kit Board
- USB 2.0 Cable, C Male to C Male
- SanDisk Ultra microSD UHS-I Card 32GB, 120MB/s Read
- Quickstart card
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC64GX1000-Curiosity-Kit-Schematics | Schematics | Download | ||
| PIC64GX1000 Curiosity Kit Statement of Volatility (SoV) | Quality Certificates | Download | ||
| PIC64GX1000 Curiosity Kit User Guide | User Guide | Download | ||
| PIC64GX1000 Curiosity Kit Board Files | BSDL Files | Download | ||
| PIC64GX1000 Curiosity KIT QuickStart Guide | User Guides | PDF | HTML | ||
| Controlling GPIOs on a PIC64GX | User Guide | Link | ||
| Using I2C Peripheral on a PIC64GX | User Guide | Link | ||
| Using SPI Peripheral on a PIC64GX | User Guide | Link |
