Overview
The SAM E54 Xplained Pro evaluation kit is a hardware platform for evaluating the ATSAME54P20A microcontroller (MCU). Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAME54P20A and explains how to integrate the device into a custom design. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.
Related Boards
Development boards with expanded options or features and that support the same set of applications as PIC32C and SAMD5x/E5x MCUs include:
- ATSAME54P20A microcontroller
- Arm® Cortex®-M4F Core
- Embedded Debugger - USB interface. Auto-ID for board identification in Atmel Studio. One yellow status LED. One green board power LED. Symbolic debug of complex data types including scope information. Programming and debugging of on-board SAME54 through Serial Wire Debug (SWD). Data Gateway Interface: SPI, I2C, four GPIOs. Virtual COM port (CDC). Embedded current measurement circuitry (XAM).
- Digital I/O - Two mechanical buttons (user and reset button). One Atmel QTouch button. One yellow user LED. Three Xplained Pro extension headers.
- 256Mb QSPI Flash
- ATECC508 CryptoAuthenticationTM device
- AT24MAC402 serial EEPROM with EUI-48TM MAC address
- Ethernet - RJ45 connector with built-in magnetics, KSZ8091RNA PHY, 10Base-T/100Base-TX IEEE 802.3 compliant Ethernet tranceiver
- SD/SDIO card connector
- Parallel Capture Controller header (ArduCAM compatible)
- ATA6561 CAN transceiver
- Backup SuperCapacitor
- 32.768 KHz & 12 MHz crystal
- Debug connectors - 10-pin Cortex Debug Connector with SWD, 20-pin Cortex Debug + ETM Connector with four bit trace.
- Azure Certified Device with IoT Plug and Play running on the Azure RTOS operating system.
- Supported with a variety of application demo examples
- Updates to Schematics and BOM
- J700 (SD Socket Connector) is not populated
- Please refer to BOM for the new Manufacturer Part Number (MPN) for XC600

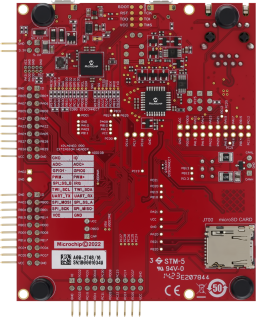

SAM E54 Xplained Pro development board
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| SAM E54 Xplained Pro User's Guide | User Guide | PDF | HTML | ||
| SAM E54 Xplained Pro Design Documentation (New Red PCB) | Board Design Files | Download | ||
| SAM E54 Xplained Pro Design Documentation (Older Blue PCB) | Board Design Files | Download | ||
| How to Move an Application into a Desired Flash Memory Location with the Help of Linker Script on SAM E54 | Tech Brief | Download | ||
| How to Build an Application by Adding a New PLIB, Driver, or Middleware to an Existing MPLAB Harmony v3 Project | Tech Brief | Download | ||
| AN3923 - AES Cipher Modes Using MPLAB Harmony v3 for the SAM E54 | Application Notes | Link | Download | |
| Live Update Application on SAM E54 MCU Using MPLAB Harmony v3 | Application Notes | Link | Download | |
| Dual-Bank Bootloader on SAM E54 Microcontroller (MCU) Using MPLAB Harmony v3 | Application Notes | Link | PDF | HTML | |
| AN3342 - SleepWalking with Event System Using the SAM E54 AN | Application Notes | Link | Download | |
| File Transfer Protocol Using MPLAB Harmony v3 TCP/IP Stack for SAM E54 MCU | Application Notes | Link | Download | |
| Clock System Configuration and Usage on SAM E5x (Cortex M4) Devices | Tech Brief | Download | ||
| AN3466 - Using XDMAC with QSPI on Arm Cortex-M7 MCUs Using MPLAB Harmony v3 | Application Notes | Link | Download | |
| How to Setup MPLAB Harmony v3 Software Development Framework | Tech Brief | PDF | HTML | ||
| SERCOM USART on Microchip Cortex Devices (SAM and PIC32C) | Application Notes | Link | PDF | HTML | |
| CAN to USB bridge and CAN based NVM bootloader Host Application using SAM E54 Xplained Pro Evaluation Kit | Software Libraries And Firmware | Link | ||
| Create a new MPLAB Harmony v3 project using MCC | Training Material | Link | ||
| Update and Configure an Existing MHC-based MPLAB Harmony v3 Project to MCC-based Project | Training Material | Link | ||
| Getting Started with Harmony v3 Peripheral Libraries on SAM D5x/E5x MCUs | Training Material | Link | ||
| Getting Started with Harmony v3 Drivers on SAM E54 MCUs Using FreeRTOS | Training Material | Link | ||
| Low Power Application on SAM E54 (Arm® Cortex® M4) MCUs Using MPLAB® Harmony v3 Peripheral Libraries | Training Material | Link | ||
| Getting Started with SAM E54 Xplained Pro Evaluation Kit for FreeRTOS (Wired) | Training Material | Link | ||
| Microchip University Class - Create a Managed IoT Device with Microsoft Azure and SAME54-XPRO | Training Material | Link | ||
| Vending Machine Application Demo on SAM E54 Xplained Pro Evaluation Kit using MP | Software Libraries And Firmware | Link | ||
| Low Power Application Demo on SAM E54 Xplained Pro Evaluation Kit using MPLAB Ha | Software Libraries And Firmware | Link | ||
| SleepWalking Application Demo on SAM E54 Xplained Pro Evaluation Kit using MPLAB | Software Libraries And Firmware | Link | ||
| EEPROM Temperature Logger Application on SAM E54 Xplained Pro Evaluation Kit using FreeRTOS | Software Libraries And Firmware | Link | ||
| Getting Started Application Demo on SAM E54 Xplained Pro Evaluation Kit using MP | Software Libraries And Firmware | Link | ||
| More application demos on SAM E54 Xplained Pro Evalution Kit | Software Libraries And Firmware | Link |
