Overview

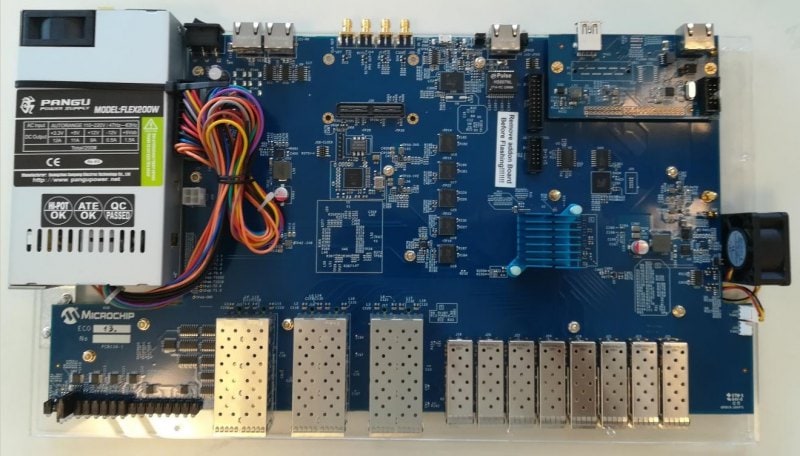

The VSC5640EV ethernet development system can be used to demonstrate the SparX-5,-5i Ethernet switches.
Access to Design Files are available, please click here.
WebStaX, SMBStaX, IStaX Binary Image Files are available on the Microchip SDE.
- 1x VSC7558 Switch (with Enterprise Ethernet features)
- 12x SFP+ front 10G module slots connected to VSC7558 through SFI
- 8x SFP28 front 25G module slots connected to VSC7558 through SFI high speed
- Optional, one additional 10/100/1000BASE-T (RJ45) Ethernet port using an on-board VSC8211 PHY, which can be connected to VSC7558 NPI port through SGMII by adding a loopback add-on PCB
- Four SMAs connectors and two ITU-T G.8275 compliant RS422 interfaces (1 PPS + ToD input and output) for Sync-E and PTP applications
- Serial UART port (USB) for local management and software debugging by using a firmware driven Command Line Interface (CLI)
- Reset button at rear, and user input button on front
- System status LED (bi-color green/red) and port status LED (bi-color green/yellow) per network port for link and activity indication
- Standard 240/110VAC 200W PSU
