Overview

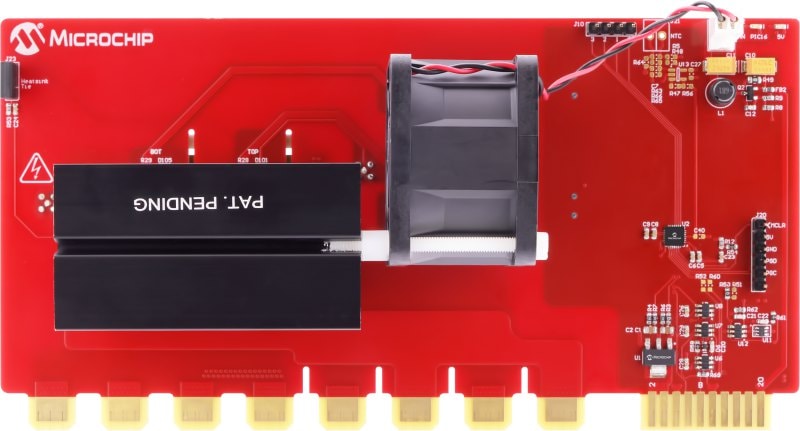

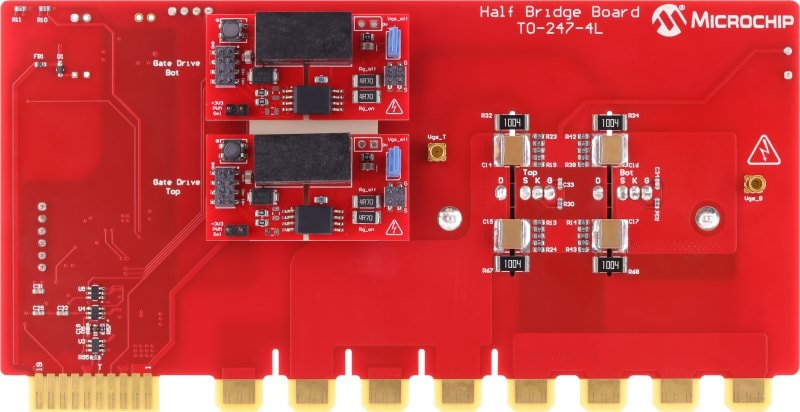

The Half Bridge Board (HBB) is a robust, high-performance evaluation board is a versatile and efficient platform for testing and characterizing mSiC® MOSFETs. Whether you're optimizing your design or pushing the limits of SiC technology, our HBB works seamlessly with the PMB-FET board to streamline your evaluation process. Our board supports two discrete SiC MOSFETs in a TO-247-4L half-bridge configuration, giving you the flexibility to fine-tune switching performance. With support for two Single-Channel Discrete Gate Driver (SCDGD) boards, you can quickly swap gate drivers and adjust parameters for precision control.
We know that thermal management is critical for high-power applications, which is why we've integrated a heatsink and fan to keep your system running efficiently and reliably. Plus, our built-in PWM logic protection prevents cross-conduction events, ensuring stable operation even in demanding conditions. With an operating voltage of up to 800V and a current capacity of up to 20A, the HBB is engineered to handle high-performance SiC MOSFET testing and evaluation. Whether you're developing next-generation power electronics, conducting SiC research, or enhancing learning and teaching, this board delivers the performance, flexibility, and reliability you need.
Applications
- SiC MOSFET Testing and Characterization
- Power Electronics Research and Development
- Educational and Training Programs
Explore Complementary Solutions
- Supports two discrete SiC MOSFETs in a TO-247-4L package and interchangeable Single-Channel Discrete Gate Driver (SCDGD) boards, enabling easy customization of gate drive parameters for precise performance tuning.
- Integrated heatsink and fan provide efficient heat dissipation, ensuring stable operation and improved reliability under high-power conditions.
- Interleaved bus connections minimize stray inductance, enhancing switching efficiency and reducing voltage overshoot for improved circuit stability.
- PWM logic circuitry prevents inadvertent cross-conduction events, safeguarding the system from potential failures and ensuring reliable operation.
- Supports up to 800V and 20A, making it suitable for demanding SiC MOSFET evaluation and high-power applications in advanced power electronics.
1x Half Bridge Evaluation Board
