Overview

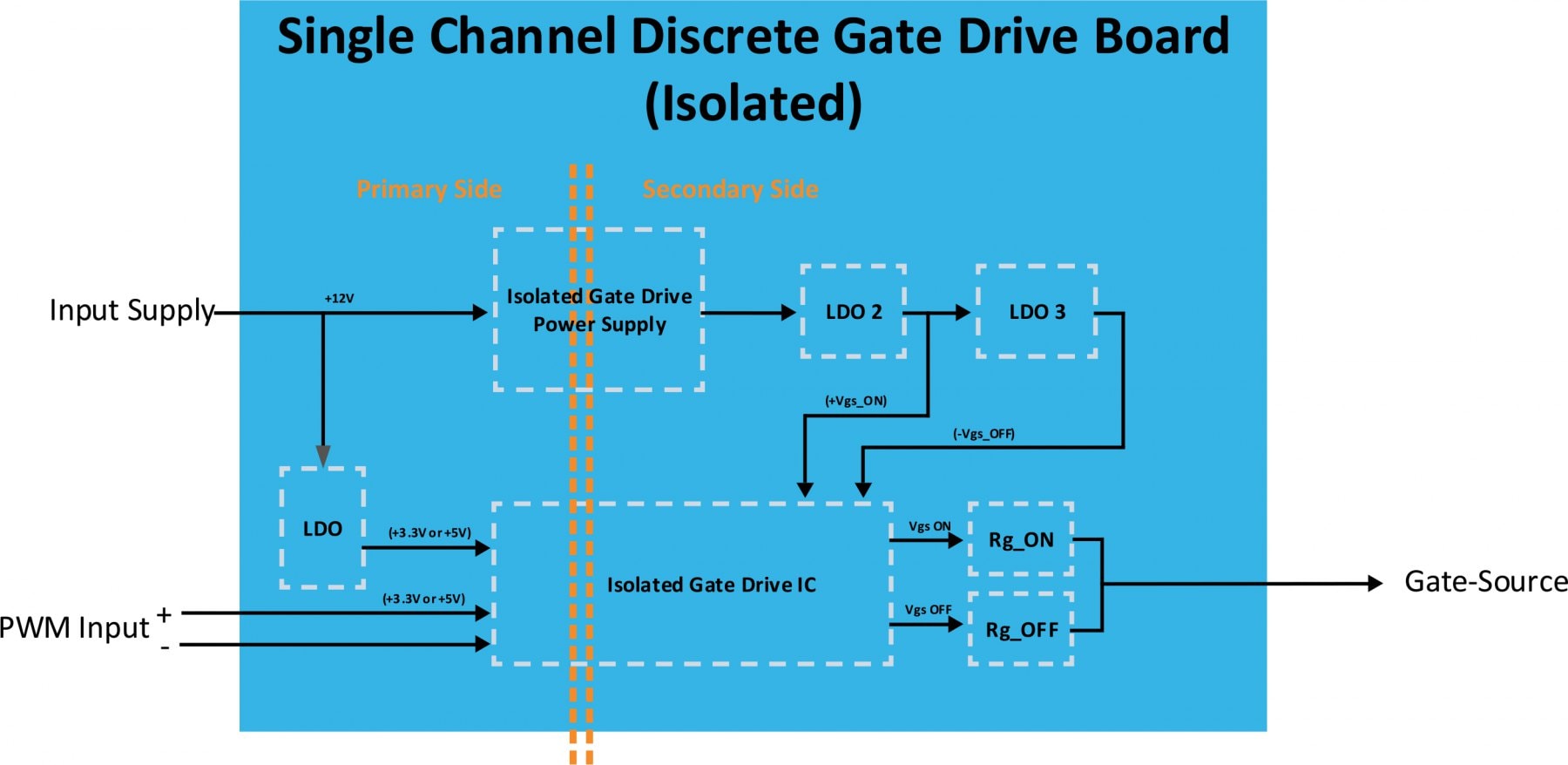

The EV84k75A discrete gate driver evaluation board is designed to facilitate the evaluation of Silicon Carbide (SiC) MOSFET devices, offering superior performance in medium-power and high-frequency applications. This board features a 2W isolated power supply for driving MOSFETs, enhanced EMI immunity through a common-mode choke, and the capability to drive 700V and 1200V mSiC™ MOSFETs with a 5A peak output current. It supports seamless microcontroller interfacing with +3.3V / +5V CMOS/TTL logic on PWM pins, independent under-voltage lockout (UVLO) for safety, and allows for optimized switching with separate gate resistors, making it a comprehensive tool for evaluating and optimizing SiC device performance.
Electrical Characteristics
- Input Supply Voltage: 13.6V to 16.5V (Typical: 15V)
- Default Output Voltage (VGS): +20V / -5V
- Alternative Output Voltage Configurations: +18V / -5V, +15V / -3V
- Working Isolation Voltage: 3000V
- Output Gate Resistor (RG): 0.5 ohm
Maximum Parameters
- Input Supply Voltage (VIN): 15V
- Output Peak Current (IPK): ±5A
- Output Power per Channel (PDRIVE): 2W
- Maximum Switching Frequency (FMAX): 200 kHz
- Ambient Operating Temperature (TA): -40 to 85 °C
Applications
- DC-DC converters
- Uninterruptible power supplies (UPS)
- Industrial motor drives and solar inverters
- Hybrid Electric Vehicle (HEV) or Electric Vehicle (EV)
- Induction welding, cutting and heating
- Frequency conversion
Explore Complementary Solutions
- The 2W isolated power supply enables driving MOSFETs at higher frequencies
- Designed to drive 700V and 1200V mSiC™ MOSFETs with a 5A peak source and sink output current
- Separate gate turn-on and turn-off resistors allow users to optimize switching turn-on and turn-off slopes
- Enhanced electromagnetic interference (EMI) immunity
1x Single-Channel Discrete MOSFET Gate Driver Evaluation Board
Cannot load image!
| Tool Details |
|---|

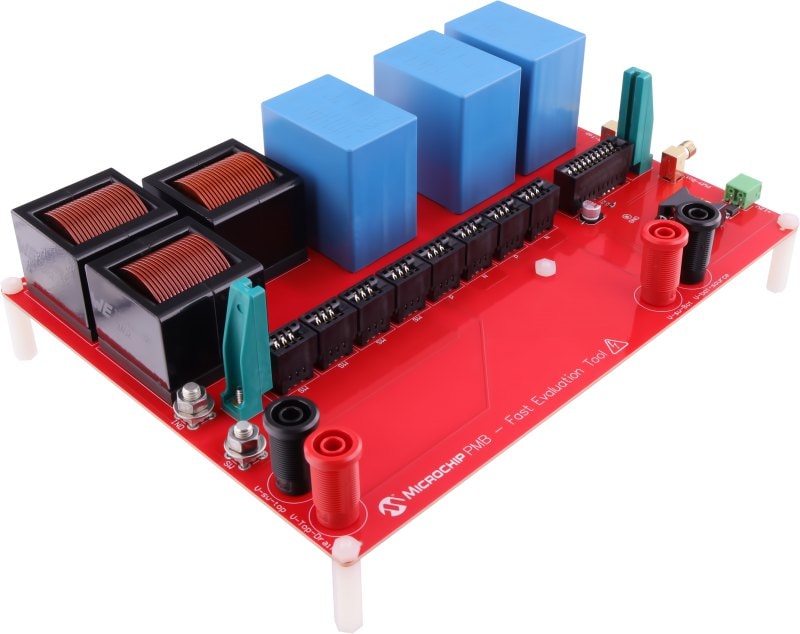

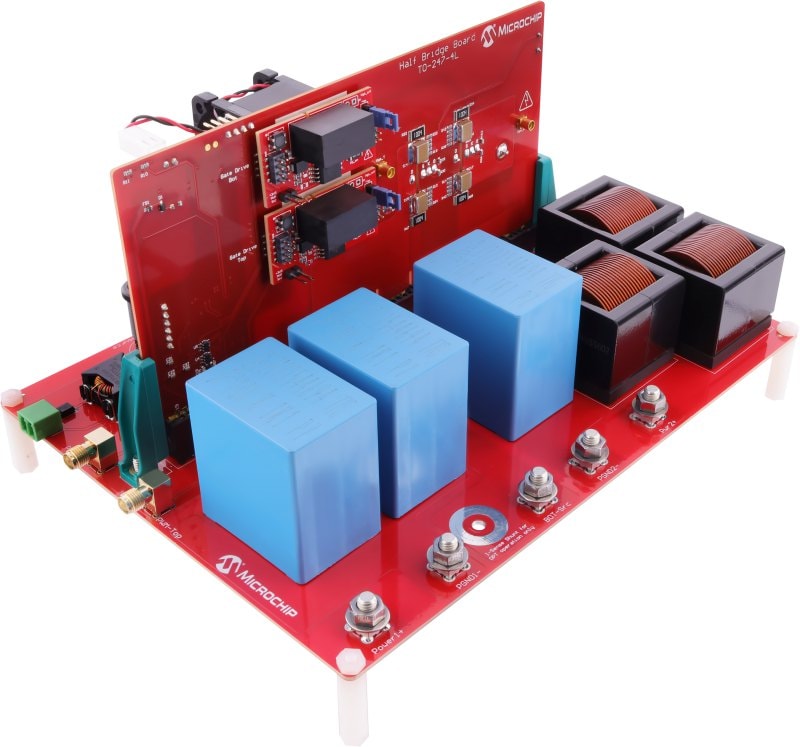

The Power Motherboard (PMB) Fast Evaluation Tool (FET) is designed to provide an easy, versatile and efficient SiC MOSFET testing platform to evaluate conduction and switching losses, perform Double Pulse Testing (DPT), and analyze Buck and Boost converter performance.
|

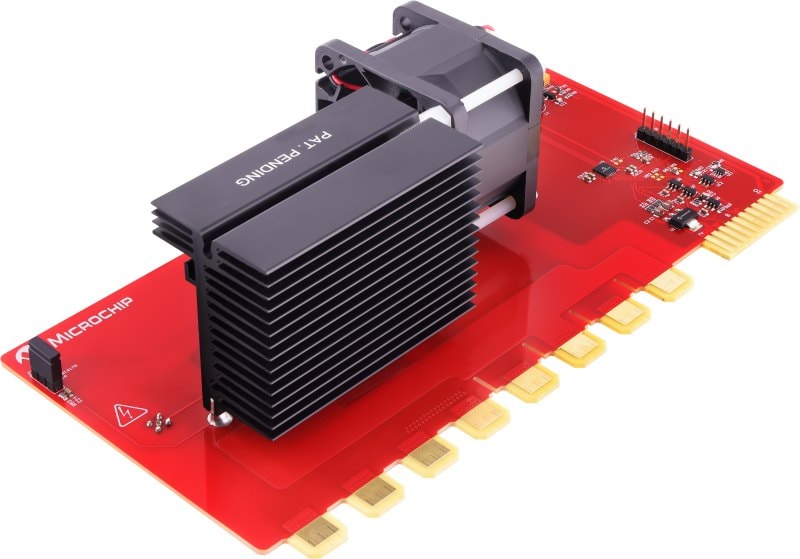

The EV40T43A Half Bridge Evaluation Board provides a ready-to-use platform for testing and evaluating half-bridge power circuit designs, simplifying development by enabling quick prototyping and performance assessment of power switching applications.
|
The SP6LIEVB is a development platform designed to facilitate the testing and evaluation of SP6LI mSiC™ MOSFET power modules, enabling engineers to assess performance and optimize designs for high-efficiency power conversion applications.
|
The EV39N46A Single-Channel Module Gate Driver Evaluation Board is a development platform designed to make it easy to evaluate and demonstrate the performance of a single-channel gate driver for Si, IGBT and mSiC™ MOSFETs and modules.
|
