Overview

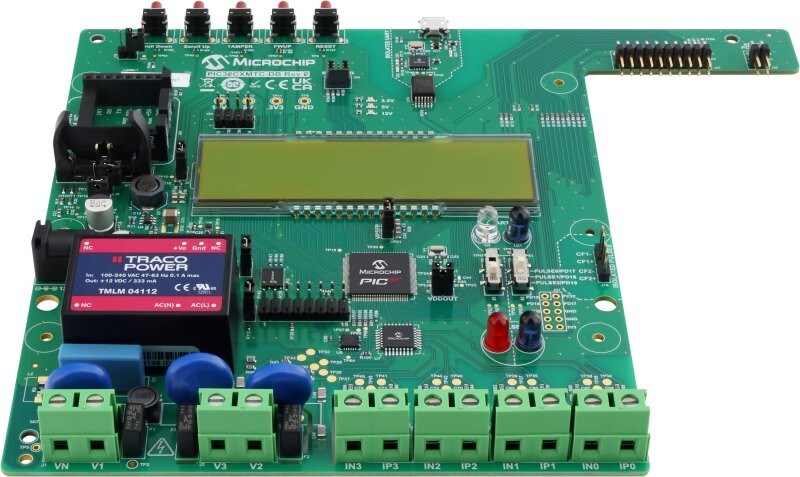

The PIC32CXMTC-DB lets designers quickly evaluate and develop code for smart energy applications built around two high performance 32-bit Arm® Cortex® -M4F processors. PIC32CMXTC dual Arm Cortex-M4F architecture allows the integration of the application layer, communications layers and metrology functions in a single device. PIC32CMXTC features an optimized two-wire interface for reducing the isolated interconnect with our Analog Front End (AFE), making these devices particularly well suited for applications such as poly-phase shunt smart meters.
The board includes a Poly-phase (ATSENSE-301) Energy Metering AFE with three voltage and four current sense channels. Current channels are designed to interface with current transformers, Rogowski coils and shunt current sensors. It can also interface with communications devices such as Power Line Communication (PLC) and/or Radio Frequency (RF) modules. Discover more below.
