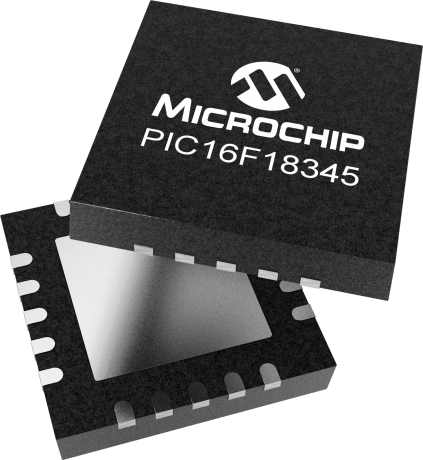

PIC16F18345

In Production

PIC16F18345 microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power applications. The Peripheral Pin Select (PPS) functionality enables pin mapping when using the digital peripherals (CLC, CWG, CCP, PWM and communications) to add flexibility to the application design.

Demonstration Platform
Internet of Things Sensor Badge with interactive control via motion, multiple sensors, RGB LEDs and bluetooth communication.
www.microchip.com/iotsensorbadge



    Features

        • Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
        • Flash Program Memory with self read/write capability
        • 256B EEPROM
        • IDLE and DOZE low power modes
        • Peripheral Module Disable (PMD)
        • Peripheral Pin Select (PPS)
        • 2x 10-bit PWMs
        • 4x Capture, Compare, PWM (CCP)
        • 2x Complementary Waveform Generator (CWG)
        • Numerically Controlled Oscillator (NCO)
        • 4x Configurable Logic Controller (CLC)
        • 17 Channel 10-bit ADC with Voltage Reference
        • 5-bit Digital to Analog Converter (DAC)
        • 2x Comparator
        • 2x SPI/I2C
        • Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
        • 4x 8-bit Timers (TMR0/TMR2)
        • 3x 16-bit Timer (TMR1)
        • Extended Watchdog Timer (WDT)
        • Enhanced Power-On/Off-Reset
        • Low-Power Brown-Out Reset (LPBOR)
        • Programmable Brown-Out Reset (BOR)
        • In Circuit Serial Programming (ICSP)
        • PIC16LF18345 (1.8V – 3.6V)
        • PIC16F18345 (2.3V – 5.5V)
      Parameter Name
      Value
      Program Memory Type
      Flash
      Program Memory (KB)
      14
      CPU Speed (MIPS)
      8
      RAM Bytes
      1,024
      Data EEPROM (bytes)
      256
      Digital Communication Peripherals
      1-UART, 2-SPI, 2-I2C
      Capture/Compare/PWM Peripherals
      4 Input Capture, 4 CCP,
      Timers
      4 x 8-bit, 3 x 16-bit
      ADC
      17 ch, 10-bit
      Comparators
      2
      Temperature Range (C)
      -40 to 125
      Operating Voltage Range (V)
      1.8 to 5.5
      Pin Count
      20
      Low Power
      Yes
      Cap Touch Channels
      17
      Documentation
      Data Sheets
      07/25/2017
      6189KB
        Errata




      Errata
      01/31/2017
      216KB
        Programming Specifications




      Programming Specification
      01/12/2016
      436KB
        Application Notes



      AppNote
      10/28/2013
      501KB
      AppNote
      07/30/2012
      1414KB
      AppNote
      07/25/2012
      1495KB
      AppNote
      10/03/2012
      1047KB
      AppNote
      10/17/2012
      1187KB
      AppNote
      12/05/2012
      572KB
      AppNote
      08/17/2015
      317KB
      AppNote
      05/14/2013
      440KB
      AppNote
      05/10/2013
      1234KB
      AppNote
      09/14/2017
      221KB
      AppNote
      12/03/2014
      1047KB
      AppNote
      09/14/2017
      984KB
      AppNote
      11/30/2015
      706KB
      AppNote
      01/21/2016
      2087KB
      AppNote
      04/10/2017
      1557KB
      AppNote
      02/11/2016
      585KB
      AppNote
      11/09/2012
      622KB
      AppNote
      07/15/2013
      557KB
      AppNote
      08/09/2013
      696KB
      AppNote
      12/11/2013
      270KB
      AppNote
      11/25/2014
      375KB
      AppNote
      04/08/2015
      165KB
      AppNote
      02/23/2015
      588KB
      AppNote
      02/18/2015
      552KB
      AppNote
      03/25/2015
      330KB
      AppNote
      06/04/2015
      435KB
      AppNote
      10/12/2015
      151KB
      AppNote
      04/26/2016
      127KB
        Brochures



      Brochures
      10/21/2015
      1046KB
      Brochures
      07/30/2015
      781KB
        ApplicationNote Literature



      AppNoteLiterature
      02/25/2014
      3307KB
      AppNoteLiterature
      05/30/2017
      3028KB
      AppNoteLiterature
      01/21/2016
      684KB
      AppNoteLiterature
      01/21/2016
      417KB
      AppNoteLiterature
      04/30/2013
      18KB
        Silicon Product




      Silicon Product
      11/28/2013
      0B
        Tips and Tricks



      Tips and Tricks
      10/01/2012
      2041KB
      Tips and Tricks
      09/14/2012
      405KB
      Pricing & Samples
      All pricing shown in USD only.
      Part Number
      Leads
      Package Type
      Temp Range
      Packing
      1+
      26+
      100+
      1000+
      5000+
      Buy
      Sample
      PIC16F18345-E/GZ
      20
      UQFN
      -40C to +125C
      TUBE
      1.20
      1.10
      1.00
      0.92
      0.88

      PIC16F18345-E/P
      20
      PDIP
      -40C to +125C
      TUBE
      1.50
      1.38
      1.25
      1.15
      1.09

      PIC16F18345-E/SO
      20
      SOIC
      -40C to +125C
      TUBE
      1.31
      1.20
      1.09
      1.00
      0.95

      PIC16F18345-E/SS
      20
      SSOP
      -40C to +125C
      TUBE
      1.16
      1.06
      0.96
      0.88
      0.84

      PIC16F18345-I/GZ
      20
      UQFN
      -40C to +85C
      TUBE
      1.10
      1.01
      0.91
      0.84
      0.80
      PIC16F18345-I/P
      20
      PDIP
      -40C to +85C
      TUBE
      1.39
      1.27
      1.15
      1.06
      1.01
      PIC16F18345-I/SO
      20
      SOIC
      -40C to +85C
      TUBE
      1.21
      1.11
      1.01
      0.93
      0.88
      PIC16F18345-I/SS
      20
      SSOP
      -40C to +85C
      TUBE
      1.06
      0.97
      0.88
      0.81
      0.77
      PIC16F18345T-E/SS
      20
      SSOP
      -40C to +125C
      T/R
      1.19
      1.09
      0.99
      0.91
      0.87

      PIC16F18345T-I/GZ
      20
      UQFN
      -40C to +85C
      T/R
      1.12
      1.02
      0.93
      0.85
      0.81

      PIC16F18345T-I/SO
      20
      SOIC
      -40C to +85C
      T/R
      1.23
      1.13
      1.02
      0.94
      0.90

      PIC16F18345T-I/SS
      20
      SSOP
      -40C to +85C
      T/R
      1.08
      0.99
      0.90
      0.82
      0.78

      PIC16LF18345-E/GZ
      20
      UQFN
      -40C to +125C
      TUBE
      1.20
      1.10
      1.00
      0.92
      0.88

      PIC16LF18345-E/P
      20
      PDIP
      -40C to +125C
      TUBE
      1.50
      1.38
      1.25
      1.15
      1.09

      PIC16LF18345-E/SO
      20
      SOIC
      -40C to +125C
      TUBE
      1.31
      1.20
      1.09
      1.00
      0.95

      PIC16LF18345-E/SS
      20
      SSOP
      -40C to +125C
      TUBE
      1.16
      1.06
      0.96
      0.88
      0.84

      PIC16LF18345-I/GZ
      20
      UQFN
      -40C to +85C
      TUBE
      1.10
      1.01
      0.91
      0.84
      0.80
      PIC16LF18345-I/P
      20
      PDIP
      -40C to +85C
      TUBE
      1.39
      1.27
      1.15
      1.06
      1.01
      PIC16LF18345-I/SO
      20
      SOIC
      -40C to +85C
      TUBE
      1.21
      1.11
      1.01
      0.93
      0.88
      PIC16LF18345-I/SS
      20
      SSOP
      -40C to +85C
      TUBE
      1.06
      0.97
      0.88
      0.81
      0.77
      PIC16LF18345T-I/GZ
      20
      UQFN
      -40C to +85C
      T/R
      1.12
      1.02
      0.93
      0.85
      0.81

      PIC16LF18345T-I/SO
      20
      SOIC
      -40C to +85C
      T/R
      1.23
      1.13
      1.02
      0.94
      0.90

      PIC16LF18345T-I/SS
      20
      SSOP
      -40C to +85C
      T/R
      1.08
      0.99
      0.90
      0.82
      0.78


      ** Device not available to purchase online. Please contact a sales office for pricing information.
      Open a microchipDIRECT account today!

      Development Tools
      • Demo & Eval Boards
      • Emulation & Debuggers
      • Programmers
      • MPLABXpress PIC16F18345 Evaluation Board ( DM164141 )

        MPLABXpress


        Xpress Your Creativity

        Brilliant ideas are fleeting. As soon as they are recognized, they must be captured quickly, and made real with the highest possible urgency. In embedded design, the creative process is often blunted by the massive array of choices required to simply begin the development cycle. The tasks of selecting a target MCU, finding the appropriate...

      • Curiosity ( DM164137 )

        Curiosity

        Satisfy Your Curiosity
        Your next embedded design idea has a new home. Curiosity is a cost-effective, fully integrated 8-bit development platform targeted at first-time users, Makers, and those seeking a feature-rich rapid prototyping board. Designed from the ground-up to take full advantage of Microchip's MPLAB X development environment, Curiosity includes an integrated programmer/debugger,...

      • Explorer 8 Development Kit ( DM160228 )

        Explorer

        Summary
        The Explorer 8 Development Kit is a full-featured development board and platform for 8-bit PIC® microcontrollers. This kit is a versatile development solution, featuring several options for external sensors, off-board communication and human interface. Additionally, it offers ample room for expansion, making it an excellent solution for developers and engineers looking for a...

      • PICDEM Lab II Development Platform ( DM163046 )

        PICDEM

        Summary
        The PICDEM™ Lab II Development Board is a development and teaching platform for use with 8-bit PIC® microcontrollers (MCUs). At its center, a large prototyping breadboard enables users to easily "experiment" with different values and configurations of analog components for system optimization. Several external connectors allow for user-customizable expansion, while our...

      • MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

        MPLAB

        The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs). This speed is provided by a 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield faster communications, downloads and debugging. It...

      • PICkit 3 In-Circuit Debugger ( PG164130 )

        PICkit

        Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit debugging offers these benefits:

        • Low cost
        • Minimum of additional hardware needed for debug
        • Expensive sockets or adapters are not required...

        Debug Features:
        Pgm-memory HW breakpoints:1

      • MPLAB ICD 3 In-Circuit Debugger ( DV164035 )

        MPLAB

        MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU) devices. It debugs and programs PIC® Flash microcontrollers and dsPIC® DSCs with the powerful, yet easy-to-use graphical user interface of MPLAB Integrated Development Environment (IDE).

        Debug Features:
        Pgm-memory HW breakpoints:1
        Pgm-memory SW breakpoints:Unlimited

      • MPLAB REAL ICE PROBE KIT ( DV244005 )

        MPLAB

        MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
        The MPLAB REAL ICE probe is connected...

        Debug Features:
        Pgm-memory HW breakpoints:1
        Pgm-memory SW breakpoints:Unlimited

      • MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

        MPLAB

        The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs). This speed is provided by a 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield faster communications, downloads and debugging. It...

      • PICkit 3 In-Circuit Debugger ( PG164130 )

        PICkit

        Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit debugging offers these benefits:

        • Low cost
        • Minimum of additional hardware needed for debug
        • Expensive sockets or adapters are not required...

      • MPLAB PM3 Universal Device Programmer ( DV007004 )

        MPLAB

        The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

        • Socket: AC164395   PartNo: PIC16F18345 (20GZ)
        • Socket: AC164307   PartNo: PIC16F18345 (20SS)
      • MPLAB ICD 3 In-Circuit Debugger ( DV164035 )

        MPLAB

        MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU) devices. It debugs and programs PIC® Flash microcontrollers and dsPIC® DSCs with the powerful, yet easy-to-use graphical user interface of MPLAB Integrated Development Environment (IDE).

      • MPLAB REAL ICE PROBE KIT ( DV244005 )

        MPLAB

        MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
        The MPLAB REAL ICE probe is connected...

      Similar Devices
      Product
      Pins
      Flash
      RAM
      Price5K
      Notes
      8
      3.5
      256
      $0.53
      Numerically Controlled Oscillator, Data signal Modulator, Advanced Low Power Capabilities
      14
      3.5
      256
      $0.57
      Numerically Controlled Oscillator, Data signal Modulator, Advanced Low Power Capabilities
      14
      7
      512
      $0.64
      Numerically Controlled Oscillator, Data signal Modulator, Advanced Low Power Capabilities
      14
      14
      1,024
      $0.71
      Numerically Controlled Oscillator, Data signal Modulator, Advanced Low Power Capabilities
      14
      28
      2,048
      $0.78
      Numerically Controlled Oscillator, Data signal Modulator, Advanced Low Power Capabilities
      20
      7
      512
      $0.70
      Numerically Controlled Oscillator, Data signal Modulator, Advanced Low Power Capabilities
      20
      14
      1,024
      $0.77
      Numerically Controlled Oscillator, Data signal Modulator, Advanced Low Power Capabilities
      20
      28
      2,048
      $0.84
      Numerically Controlled Oscillator, Data signal Modulator, Advanced Low Power Capabilities
      RoHS Information
      Part
      Number
      Device
      Weight
      Shipping
      Weight
      Lead
      Count
      Package
      Type
      Package
      Width
      Solder
      Composition
      JEDEC
      Indicator
      RoHS

      China
      EFUP
      PIC16F18345-E/P
      1.512900
      2.500000
      20
      PDIP
      .300in
      Matte Tin
      e3
      PIC16F18345-I/P
      1.512900
      2.500000
      20
      PDIP
      .300in
      Matte Tin
      e3
      PIC16F18345-I/PREL
      1.512900
      2.500000
      20
      PDIP
      .300in
      Matte Tin
      e3
      PIC16F18345-E/SO
      0.542000
      0.973684
      20
      SOIC
      .300in
      Matte Tin
      e3
      PIC16F18345-I/SO
      0.542000
      0.973684
      20
      SOIC
      .300in
      Matte Tin
      e3
      PIC16F18345T-I/SO
      0.542000
      0.311875
      20
      SOIC
      .300in
      Matte Tin
      e3
      PIC16F18345T-E/SS
      0.164200
      0.416250
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F18345-E/SS
      0.164200
      0.343284
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F18345-I/SS
      0.164200
      0.343284
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F18345T-I/SS
      0.164200
      0.416250
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F18345T-E/SSVAO
      0.164200
      0.416250
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F18345T-I/GZ
      0.020700
      0.181818
      20
      UQFN
      4x4x0.5mm
      Matte Tin
      e3
      PIC16F18345-E/GZ
      0.020700
      0.065934
      20
      UQFN
      4x4x0.5mm
      Matte Tin
      e3
      PIC16F18345-I/GZ
      0.020700
      0.065934
      20
      UQFN
      4x4x0.5mm
      Matte Tin
      e3
      To see a complete listing of RoHS data for this device, please Click here
      Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
