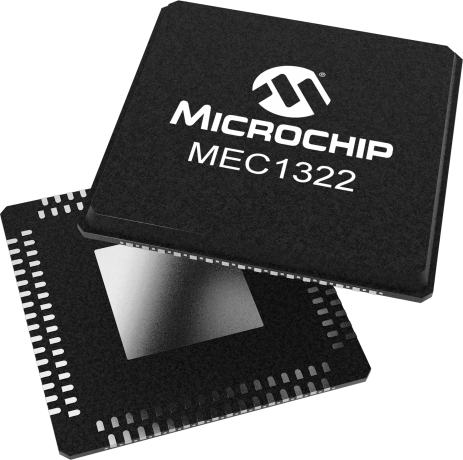

product primary image

MEC1322

Status: In Production

Features:

  • 32-bit system controller
  • 132 DQFN package
  • External SPI Flash
  • 96K Optimized for Code
  • 32K Optimized for Data
  • 64B CMOS
  • 18x8 keyboard scan matrix
  • 116 GPIO Pins
  • 5 SMBus ports
  • 5 Analog to digital converter channels
  • 4 LED
  • 2 Low-power timers
  • 4 PWM
  • 2 Fan Tachometer Inputs
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MEC1322 incorporates a high-performance 32-bit embedded microcontroller with 128 Kilobytes of SRAM and 32 Kilobytes of Boot ROM which communicates with the system host using the Intel® Low Pin Count (LPC) bus. The MEC1322 has two Serial Peripheral Interface (SPI) memory interfaces that allow the Embedded Controller (EC) to read its code from external SPI flash memory: private SPI and/or shared SPI. The Shared SPI interface allows for Embedded Controller code to be stored in a shared SPI chip along with the system BIOS. It provides support for loading EC code from the private or shared SPI flash device on a VCC1 power-on. The MEC1322 is directly powered by two separate suspend supply planes (VBAT and VCC1) and senses the runtime power plane (VCC) to provide “Instant On” and system power management functions.

Additional Features
    • 32-bit system controller
    • 132 DQFN package
    • External SPI Flash
    • 128K SRAM (Code and Data)
      • 96K Optimized for Code
      • 32K Optimized for Data
    • 64B CMOS
    • 18x8 keyboard scan matrix
    • 116 GPIO Pins
    • 5 SMBus ports
    • 5 Analog to digital converter channels
    • 4 LED
    • 2 Low-power timers
    • 4 PWM
    • 2 Fan Tachometer Inputs
Parametrics
Name
Value
Keyboard Scan Matrix
18x8
UART
Y
Host Interface
LPC
Crypto Engine
Yes
Code Storage
External SPI Flash
Operating Temperature
0° C to +70° C
Low Power Timers
2
Fan Tachometer Inputs
2
Max Operating Frequency
48 MHz
Data RAM
128KB RAM (Code and Data)64B CMOS
HW Auto Fan Controller
1
Breathing/ Blinking LED
4
GPIO
116
PWM
4
Package
132 DQFN
VBAT-Powered, Power Control Interface
N
LED
4
Analog to Digital Converter
5 ch
SMBus Ports
5
BC Link
1
SPI_Host
2
Flash/Code RAM
128KB RAM (Code and Data)
PECI
3
System Controller
32-bit
ACPI Interfaces
2
Counter/Timers
6

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Price5K
$2.75
$2.75
$3.31
$1.76
$1.90
$2.03
$2.16
$2.27
$3.96
$3.93

$4.21
$5.06

$5.06
$2.42
$3.45
$3.23
$3.58
$5.62
$6.69
$5.56
$11.01
$1.58
$1.67
$2.41
$2.49
$2.53
$2.75
$5.56
$2.53
$2.75
$1.55
$2.53

$2.53
$2.53
$2.53
$2.78

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MEC1322-LZY
0.102000
1.964286
132
DQFN
11x11x0.9mm
Matte Tin
e3
Rohs icon
efup china icon
MEC1322-LZY-C0
0.102000
1.964286
132
DQFN
11x11x0.9mm
Matte Tin
e3
Rohs icon
efup china icon
MEC1322-LZY-C0-TR
0.102000
0.452000
132
DQFN
11x11x0.9mm
Matte Tin
e3
Rohs icon
efup china icon
MEC1322-SZ-C0
0.128300
0.826923
144
WFBGA
9x9x0.8mm
SAC
e8
Rohs icon
efup china icon
MEC1322-SZ-C0-TR
0.128300
0.273333
144
WFBGA
9x9x0.8mm
SAC
e8
Rohs icon
efup china icon
MEC1322-NU
0.557500
2.888889
128
TQFP
14x14x1mm
Matte Tin
e3
Rohs icon
efup china icon
MEC1322-NU-C0
0.557500
2.888889
128
TQFP
14x14x1mm
Matte Tin
e3
Rohs icon
efup china icon
MEC1322I-NU-C0
0.557500
2.888889
128
TQFP
14x14x1mm
Matte Tin
e3
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
