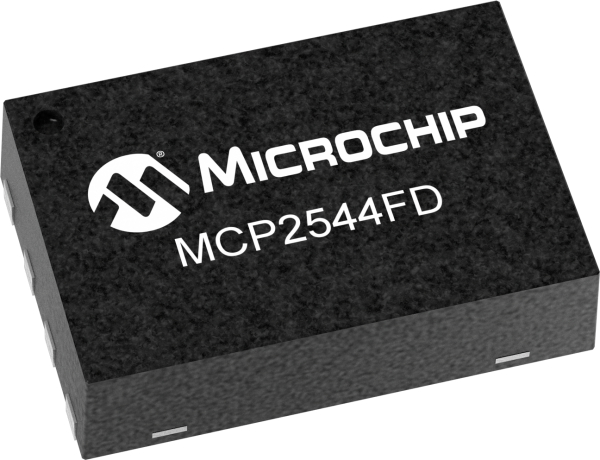

MCP2544FD

CAN FD Transmitter with Wake-Up Pattern Option

Status: In Production

Features:

  • Supports both Classic CAN or CAN Flexible Data Rate applications
  • Optimized for CAN FD (Flexible Data rate) at 2, 5 and 8 Mbps Operation
  • Meets the latest ISO/DIS 11898-2:2015 specification
  • Supports Wake-up pattern
  • AEC-Q100 Grade 0
  • Very Low Standby Current (5 μA, typical)
  • VIO Supply Pin to Interface Directly to CAN Controllers and Microcontrollers with 1.7V to 5.5V I/O
  • An Unpowered Node or Brown-Out Event will Not Load the CAN Bus
  • Permanent Dominant Detection on TXD
  • Permanent Dominant Detection on Bus
  • Power-on Reset and Voltage Brown-Out Protection on VDD Pin
  • Protection Against Damage Due to Short-Circuit Conditions (Positive or Negative Battery Voltage)
  • Protection Against High-Voltage Transients in Automotive Environments
  • Automatic Thermal Shutdown Protection
  • Suitable for 12V and 24V Systems
  • Extremely robust meeting automotive EMC hardware requirements
  • Smallest package option in the industry 2x3 DFN-8L
  • Also available in SOIC-8L and 3x3 DFN-8L
  • Extended (E): -40°C to +125°C
  • High (H): -40°C to +150°C
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP2544FD CAN transceiver is designed for high-speed CAN FD applications up to 8Mbps communication speed. The maximum propagation delay was improved to support longer bus length.The device meets the automotive requirements for CAN FD bit rates exceeding 2 Mbps, low quiescent current, electromagnetic compatibility (EMC) and electrostatic discharge (ESD).

For product comparison, please consider: MCP2542FD

Additional Features
    • Supports both Classic CAN or CAN Flexible Data Rate applications
    • Optimized for CAN FD (Flexible Data rate) at 2, 5 and 8 Mbps Operation
    • Meets the latest ISO/DIS 11898-2:2015 specification
    • Supports Wake-up pattern
    • AEC-Q100 Grade 0
    • Very Low Standby Current (5 μA, typical)
    • VIO Supply Pin to Interface Directly to CAN Controllers and Microcontrollers with 1.7V to 5.5V I/O
    • CAN Bus Pins are Disconnected when Device is Unpowered
      • An Unpowered Node or Brown-Out Event will Not Load the CAN Bus
    • Detection of Ground Fault:
      • Permanent Dominant Detection on TXD
      • Permanent Dominant Detection on Bus
    • Power-on Reset and Voltage Brown-Out Protection on VDD Pin
    • Protection Against Damage Due to Short-Circuit Conditions (Positive or Negative Battery Voltage)
    • Protection Against High-Voltage Transients in Automotive Environments
    • Automatic Thermal Shutdown Protection
    • Suitable for 12V and 24V Systems
    • Extremely robust meeting automotive EMC hardware requirements
    • Smallest package option in the industry 2x3 DFN-8L
    • Also available in SOIC-8L and 3x3 DFN-8L
    • Temperature ranges:
      • Extended (E): -40°C to +125°C
      • High (H): -40°C to +150°C
Parametrics
Name
Value
Version Supported
Yes
Temp. Range (°C)
-40 to +150
Operating Voltage Range (V)
4.5 to 5.5

Documents

Jump to:

Data Sheet


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP2544FDT-H/MNY
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
MCP2544FDT-H/MF
0.023800
0.172727
8
DFN
3x3x0.9mm
Matte Tin
e3
MCP2544FD-E/MF
0.023800
0.041667
8
DFN
3x3x0.9mm
Matte Tin
e3
MCP2544FDT-E/MF
0.023800
0.172727
8
DFN
3x3x0.9mm
Matte Tin
e3
MCP2544FDT-E/MNY
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
MCP2544FD-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2544FD-H/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2544FDT-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2544FDT-H/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
