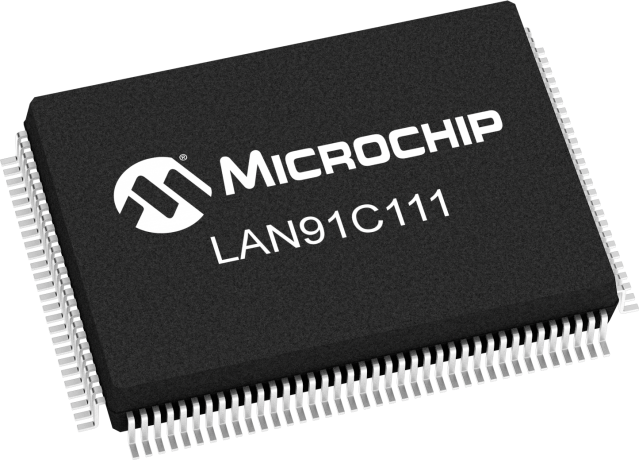

product primary image

LAN91C111

10/100 Base-T/TX Ethernet Controller with 16/32 Bit Interface

Status: In Production

Features:

  • Single Chip Ethernet Controller
  • Dual Speed - 10/100 Mbps
  • Fully Supports Full Duplex Switched Ethernet
  • Supports Burst Data Transfer
  • 8 Kbytes Internal Memory for Receive and Transmit FIFO Buffers
  • Enhanced Power Management Features
  • Optional Configuration via Serial EEPROM Interface
  • Supports 8, 16 and 32 Bit CPU Accesses
  • Internal 32 Bit Wide Data Path (into Packet Buffer Memory)
  • Built-in Transparent Arbitration for Slave Sequential Access Architecture
  • Flat MMU Architecture with Symmetric Transmit and Receive Structures and Queues
  • 3.3V Operation with 5V Tolerant I/O Buffers
  • Single 25 MHz Reference Clock for Both PHY and MAC
  • External 25 MHz Output Pin for an External PHY Supporting PHY''s Physical Media
  • Low Power CMOS Design
  • ARM
  • SH
  • Power PC
  • Coldfire
  • 680X0, 683XX
  • MIPS R3000
  • 3.3V MII (Media Independent Interface) MAC-PHY Interface Running at Nibble Rate
  • MII Management Serial Interface
  • 128 Pin QFP RoHS compliant package
  • 128 Pin TQFP 1.0 mm height RoHS compliant package
  • Commercial Temperature Range from 0°C to 70°C (LAN91C111)
  • Industrial Temperature Range from -40°C to 85°C (LAN91C111i)
  • Fully Integrated IEEE 802.3/802.3u - 100BASE-TX/10BASE-T Physical Layer
  • Auto Negotiation: 10/100, Full/Half Duplex
  • On Chip Wave Shaping - No External Filters Required
  • Adaptive Equalizer
  • Baseline Wander Correction
  • Link
  • Activity
  • Full Duplex
  • 10/100
  • Transmit
  • Receive
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The Microchip LAN91C111 is designed to facilitate the implementation of a third generation of Fast Ethernet connectivity solutions for embedded applications. For this third generation of products, flexibility and integration dominate the design requirements. The LAN91C111 is a mixed signal Analog/Digital device that implements the MAC and PHY portion of the CSMA/CD protocol at 10 and 100 Mbps. The design will also minimize data throughput constraints utilizing a 32-bit, 16-bit or 8-bit bus Host interface in embedded applications.

The total internal memory FIFO buffer size is 8 Kbytes, which is the total chip storage for transmit and receive operations.

The Microchip LAN91C111 is software compatible with the LAN9000 family of products.


*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

For product comparison, please consider: LAN9218

Additional Features

    Features

    • Single Chip Ethernet Controller
    • Dual Speed - 10/100 Mbps
    • Fully Supports Full Duplex Switched Ethernet
    • Supports Burst Data Transfer
    • 8 Kbytes Internal Memory for Receive and Transmit FIFO Buffers
    • Enhanced Power Management Features
    • Optional Configuration via Serial EEPROM Interface
    • Supports 8, 16 and 32 Bit CPU Accesses
    • Internal 32 Bit Wide Data Path (into Packet Buffer Memory)
    • Built-in Transparent Arbitration for Slave Sequential Access Architecture
    • Flat MMU Architecture with Symmetric Transmit and Receive Structures and Queues
    • 3.3V Operation with 5V Tolerant I/O Buffers
    • Single 25 MHz Reference Clock for Both PHY and MAC
    • External 25 MHz Output Pin for an External PHY Supporting PHY's Physical Media
    • Low Power CMOS Design
    • Supports Multiple Embedded Processor Host Interfaces
      • ARM
      • SH
      • Power PC
      • Coldfire
      • 680X0, 683XX
      • MIPS R3000
    • 3.3V MII (Media Independent Interface) MAC-PHY Interface Running at Nibble Rate
    • MII Management Serial Interface
    • 128 Pin QFP RoHS compliant package
    • 128 Pin TQFP 1.0 mm height RoHS compliant package
    • Commercial Temperature Range from 0°C to 70°C (LAN91C111)
    • Industrial Temperature Range from -40°C to 85°C (LAN91C111i)

    Network Interface

    • Fully Integrated IEEE 802.3/802.3u - 100BASE-TX/10BASE-T Physical Layer
    • Auto Negotiation: 10/100, Full/Half Duplex
    • On Chip Wave Shaping - No External Filters Required
    • Adaptive Equalizer
    • Baseline Wander Correction
    • LED Outputs (User Selectable - Up to Two LED Functions at One Time)
      • Link
      • Activity
      • Full Duplex
      • 10/100
      • Transmit
      • Receive
Parametrics
Name
Value
Description
10Base-T/100Base-TX Ethernet Controller with 16/32 bit interface
Ethernet Bandwidth
10/100Mbps
MAC
Yes
PHY
Yes
TX/RX RAM Buffer(Bytes)
8K
Interrupt Pin
1
LEDs
2
# Ethernet Ports
1
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
Interface
16-bit or 32-bit
Vdd I/O (V)
3.3

Documents

Jump to:

IBIS

06/02/2003
288KB
02/22/2005
276KB
02/16/2007
268KB

Development Environment

  • Software Libraries
Software Libraries
LAN9000 Diagnostic and Setup Utilities (ETX, ISMC9000, MIIPHY, CIS and ENABLERS

LAN9000 Diagnostic and Setup Utilities (ETX, ISMC9000, MIIPHY, CIS and ENABLERS

Learn More
LAN91C111 DOS ODI Driver Version 4.5

LAN91C111 DOS ODI Driver Version 4.5

Learn More
LAN91C111 Linux Driver Version 2.03 Source

LAN91C111 Linux Driver Version 2.03 Source

Learn More
LAN91C111 Packet Driver Version 1.2C

LAN91C111 Packet Driver Version 1.2C

Learn More
LAN91C111 VxWorks Driver Version 2.1

LAN91C111 VxWorks Driver Version 2.1

Learn More
LAN91C111 Windows 98 Driver Version 3.12B

LAN91C111 Windows 98 Driver Version 3.12B

Learn More
LAN91C111 Windows CE Driver 5.04/4.x for X86

LAN91C111 Windows CE Driver 5.04/4.x for X86

Learn More
LAN91C111 Windows CE Driver Version 3.0

LAN91C111 Windows CE Driver Version 3.0

Learn More
LAN91C111 Windows XP Embedded Driver Version 5.1.1.0

LAN91C111 Windows XP Embedded Driver Version 5.1.1.0

Learn More
SRC-111-CENET Source Code

SRC-111-CENET Source Code

Learn More
SRC-111-CENET86 Source Code

SRC-111-CENET86 Source Code

Learn More
SRC-111-CENETXS Source Code

SRC-111-CENETXS Source Code

Learn More
SRC-111-NDIS Source Code

SRC-111-NDIS Source Code

Learn More
SRC-111-PKT Source Code

SRC-111-PKT Source Code

Learn More
SRC-111-VX Source Code

SRC-111-VX Source Code

Learn More
SRC-111-XP Source Code

SRC-111-XP Source Code

Learn More

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10Mbps
SPI
$2.03
10/100Mbps
SPI, Parallel
$2.60
10/100Mbps
SPI, Parallel
$2.81
10/100Mbps / FX
8-bit or 16-bit
$3.97
10/100Mbps
8-bit or 16-bit
$13.42
10/100Mbps
8/16/32-bit, MII
$7.99
10/100Mbps
8/16/32-bit
$5.36
10/100Mbps
8-/16-/32-bit or SPI
$2.42
10/100/1000Mbps
8/16-bit
$18.27
10/100Mbps
32 bit Host Bus
$18.24
10/100Mbps
HSIC
$5.87
10/100Mbps
16 bit Host Bus
$6.18
10/100Mbps
16-bit or 32-bit
$8.26
10/100Mbps
16 bit Host Bus
$8.43
10/100Mbps
16-bit or 32-bit
$13.48
10/100Mbps
16-bit or 32-bit

10/100Mbps
16 bit PCMCIA and Host Bus

10/100Mbps
16-bit or 32-bit
$16.55
10Mbps
16 bit PCMCIA and Host Bus
$11.03
10/100Mbps
16 bit Host Bus
$5.20
10/100Mbps
16 bit
$6.26
10/100Mbps
16 bit Host Bus, MII
$7.42
10/100Mbps
16 bit Host Bus, MII
$10.67
10/100Mbps
32 bit Host Bus
$13.37
10/100Mbps
16 bit Host Bus
$3.74
10/100Mbps
16 bit Host Bus
$4.67
10/100Mbps
8/16-bit Host Bus or SPI
$3.87
10/100Mbps
32 bit PCI 3.0
$3.02

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LAN91C111-NS
1.806400
6.803030
128
QFP
14x20x2.7
Matte Tin
e3
LAN91C111I-NS
1.806400
6.803030
128
QFP
14x20x2.7
Matte Tin
e3
LAN91C111-NU
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
LAN91C111I-NU
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
