ATSAMG54

Status: In Production

Features:

  • ARM Cortex-M4 with up to 96 Kbytes SRAM on I/D bus providing 0 wait state execution at up to 96 MHz
  • Memory Protection Unit (MPU)
  • DSP Instructions, Floating Point Unit (FPU), Thumb®-2 instruction set
  • 512 Kbytes embedded Flash
  • 96 Kbytes embedded SRAM
  • Embedded voltage regulator for single-supply operation
  • Power-on reset (POR) and Watchdog for safe operation
  • Quartz or ceramic resonator oscillators: 3 to 20 MHz with clock failure detection and 32.768 kHz for RTT or system clock
  • High-precision 8/16/24 MHz factory-trimmed internal RC oscillator. In-application trimming access for frequency adjustment
  • Slow clock internal RC oscillator as permanent low-power mode device clock
  • PLL range from 48 MHz to 120 MHz for device clock
  • PLL range from 24 MHz to 48 MHz for USB device and USB OHCI
  • Up to 30 peripheral DMA (PDC) channels
  • 256-bit General-Purpose Backup Registers (GPBR) 16 external interrupt lines
  • 102 μA/MHz running Fibonacci in SRAM(Active mode)
  • Wait mode down to 8 μA
  • Wake-up time less than 5 μs

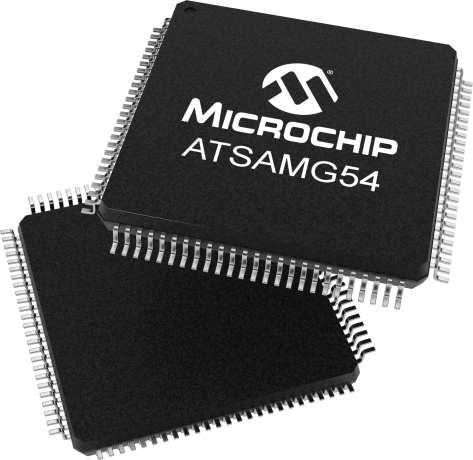

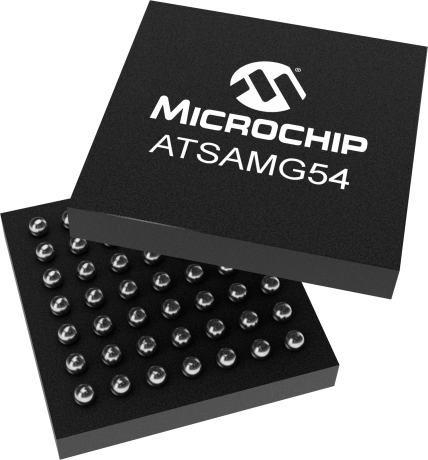

  • 49-lead WLCSP, 100-pin LQFP, 14 x 14 mm, pitch 0.5 mm
  • Industrial (-40° C to +85° C)
  • One USART with SPI mode
  • 2 Inter-IC Sound Controllers (I2S)
  • Two UARTs
  • Three Two-Wire Interface (TWI) modules featuring two TWI masters and one high-speed TWI slave
  • One fast SPI at up to 24Mbit/s
  • Two three-channel 16-bit Timer/Counters (TC) with Capture, Waveform, Compare and PWM modes
  • One 32-bit Real-Time Timer (RTT)
  • One 32-bit Real-Time Clock (RTC)
  • Up to 38 controllable I/O lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and on-die series resistor termination. Individually programmable open-drain, pull-up and pull-down resistor and synchronous output
  • Two PIO Controllers provide control of up to 25 I/O lines
  • Two-way one-channel Pulse Density Modulation (PDM) (interfaces up to two microphones in PDM mode)
  • One 8-channel ADC, resolution up to 12 bits, sampling rate up to 800 kSps
  • Serial Wire/JTAG Debug Port(SWJ-DP)
  • Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.
  • Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.
  • Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.
  • Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.
  • Instrumentation Trace Macrocell (ITM) for support of printf style debugging.
  • IEEE1149.1 JTAG Boundary-scan on all digital pins.
  • ASF-Atmel software Framework – SAM software development framework
  • Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.
  • DMA support, Interrupt handlers Driver support
  • USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks
  • RTOS integration, FreeRTOS is a core component
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The Microchip's SAM G54 embeds a Cortex-M4 CPU with an FPU (floating point unit) that ensures maximum throughput. This is very important as it allows you to minimize the active power consumption and get to sleep faster in order to reduce the overall power consumption. Additionally, the device has 16 DMA channels, which give extremely high throughput.

The combination of ultra-low power consumption, fast wake-up time and high throughput is what gives the SAM G the edge in space- and power-constrained consumer applications such as sensor hubs. It wakes up quickly, has the throughput needed to reduce the amount of time spent in active mode, and then goes back to sleep with SRAM retention to conserve energy.

This gives the best performance and longest battery lifetime. It is fully-functional all the way down to 1.7V; including flash reads and writes, as well as full ADC operation. This allows for a more flexible power supply scheme that will squeeze extra runtime out of a battery.

Additional Features

    Microcontroller Features

    Core

    • ARM Cortex-M4 with up to 96 Kbytes SRAM on I/D bus providing 0 wait state execution at up to 96 MHz

    • Memory Protection Unit (MPU)

    • DSP Instructions, Floating Point Unit (FPU), Thumb®-2 instruction set

    Memories

    • 512 Kbytes embedded Flash

    • 96 Kbytes embedded SRAM

    System

    • Embedded voltage regulator for single-supply operation

    • Power-on reset (POR) and Watchdog for safe operation

    • Quartz or ceramic resonator oscillators: 3 to 20 MHz with clock failure detection and 32.768 kHz for RTT or system clock

    • High-precision 8/16/24 MHz factory-trimmed internal RC oscillator. In-application trimming access for frequency adjustment

    • Slow clock internal RC oscillator as permanent low-power mode device clock

    • PLL range from 48 MHz to 120 MHz for device clock

    • PLL range from 24 MHz to 48 MHz for USB device and USB OHCI

    • Up to 30 peripheral DMA (PDC) channels

    • 256-bit General-Purpose Backup Registers (GPBR)

      16 external interrupt lines

    Power Consumption/Low Power modes

    • 102 μA/MHz running Fibonacci in SRAM(Active mode)

    • Wait mode down to 8 μA

    • Wake-up time less than 5 μs

    Package

    • 49-lead WLCSP, 100-pin LQFP, 14 x 14 mm, pitch 0.5 mm

    Temperature operating range

    • Industrial (-40° C to +85° C)

    Peripheral Features

    • One USART with SPI mode

    • 2 Inter-IC Sound Controllers (I2S)

    • Two UARTs

    • Three Two-Wire Interface (TWI) modules featuring two TWI masters and one high-speed TWI slave

    • One fast SPI at up to 24Mbit/s

    • Two three-channel 16-bit Timer/Counters (TC) with Capture, Waveform, Compare and PWM modes

    • One 32-bit Real-Time Timer (RTT)

    • One 32-bit Real-Time Clock (RTC)

    I/O

    • Up to 38 controllable I/O lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and on-die series resistor termination. Individually programmable open-drain, pull-up and pull-down resistor and synchronous output

    • Two PIO Controllers provide control of up to 25 I/O lines

    Audio Features

    • Two-way one-channel Pulse Density Modulation (PDM) (interfaces up to two microphones in PDM mode)

    Analog Features

    • One 8-channel ADC, resolution up to 12 bits, sampling rate up to 800 kSps

    Debugger Development Support

    • Serial Wire/JTAG Debug Port(SWJ-DP)

    • Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.

    • Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.

    • Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.

    • Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.

    • Instrumentation Trace Macrocell (ITM) for support of printf style debugging.

    • IEEE1149.1 JTAG Boundary-scan on all digital pins.

    Integrated Software Libraries and Tools

    • ASF-Atmel software Framework – SAM software development framework

    • Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.

    • DMA support, Interrupt handlers Driver support

    • USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks

    • RTOS integration, FreeRTOS is a core component

Parametrics
Name
Value
Part Family
ATSAMG54
Max CPU Speed MHz
96
Program Memory Size (KB)
512
SRAM (KB)
96
Auxiliary Flash (KB)
0.512
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
1.62 to 3.6
Direct Memory Access Channels
28
SPI
1
I2C
3
Peripheral Pin Select / Pin Muxing
Yes
ADC Input
8
Max ADC Resolution (Bits)
12
Max ADC Sampling Rate (ksps)
800
Input Capture
12
Max 16-bit Digital Timers
3
Internal Oscillator
8,16,24Mhz,32Khz
Hardware RTCC/RTC
Yes
Max I/O Pins
38
Pincount
100
Low Power
Yes

Documents

Jump to:

Data Sheet

12/01/2014
3936KB

Application Notes

Download All

Schematics

White Papers

05/01/2013
443KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
SLCD1 Xplained Pro extension kit
SLCD1 Xplained Pro extension kit ( ATSLCD1-XPRO )

SLCD1 Xplained Pro is an extension kit with a 96-segment LCD display. It connects to Xplained Pro evaluation kits with segment LCD extension headers. For supported kits, see the related tools tab.

Learn More
Add To Cart
I/O1 Xplained Pro extension kit
I/O1 Xplained Pro extension kit ( ATIO1-XPRO )

I/O1 Xplained Pro provides a light sensor, temperature sensor, and microSD card. It connects to the extension headers of any Xplained Pro Evaluation Kit.

Learn More
Add To Cart
SAM-ICE
SAM-ICE ( AT91SAM-ICE )

SAM-ICE is a JTAG emulator designed for SAMA5, SAM3, SAM4, SAM7 and SAM9 ARM® core-based MCUs and MPUs, including Thumb mode. It supports download speeds up to 720K Bytes per second and maximum JTAG speeds up to 12 MHZ. It also supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV) from SAM-ICE hardware V6.

Learn More
Add To Cart
Ethernet1 XPRO
Ethernet1 XPRO ( ATETHERNET1-XPRO )

Ethernet1 Xplained Pro is an extension board in the Xplained Pro evaluation platform. The board enables the user to experiment with Ethernet network connectivity applications.

Learn More
Add To Cart
OLED1 Xplained Pro extension kit
OLED1 Xplained Pro extension kit ( ATOLED1-XPRO )

OLED1 Xplained Pro is an extension kit with a 128x32 OLED display, 3 LEDs and 3 push buttons. It connects to the extension headers of any Xplained Pro evaluation kit.

Learn More
Add To Cart
PROTO1 Xplained Pro extension kit
PROTO1 Xplained Pro extension kit ( ATPROTO1-XPRO )

PROTO1 Xplained Pro provides easy prototyping on the Xplained Pro platform. It connects to the extension headers of any Xplained Pro evaluation kit and can be used as a gateway to other Xplained Pro extension boards with its own Xplained Pro extension header.

Learn More
Add To Cart
RS-485 Xplained Pro
RS-485 Xplained Pro ( ATRS485-XPRO )

The RS485 Xplained Pro extension evaluation kit is ideal for evaluation and prototyping applications involving RS485 / 422 features of the SAM C21 Cortex®?-M0+ processor-based microcontrollers. SAM C21 Xplained Pro board can be purchased individually. The ATRS485-XPRO extension evaluation kit does not include Xplained Pro boards. For compatible Xplained Pro board please see the Related...

Learn More
Add To Cart
SAM G55 Xplained Pro
SAM G55 Xplained Pro ( ATSAMG55-XPRO )

The SAM G55 Xplained Pro evaluation kit is ideal for evaluation and prototyping with the SAM G55 Cortex®-M4 processor-based microcontrollers. Extension boards to the SAM G55 Xplained Pro can be purchased individually.

The ATSAMG55-XPRO evaluation kit does not include extension boards.

For compatible Xplained Pro extension board please see the Related Tools tab.

Learn More
Add To Cart
