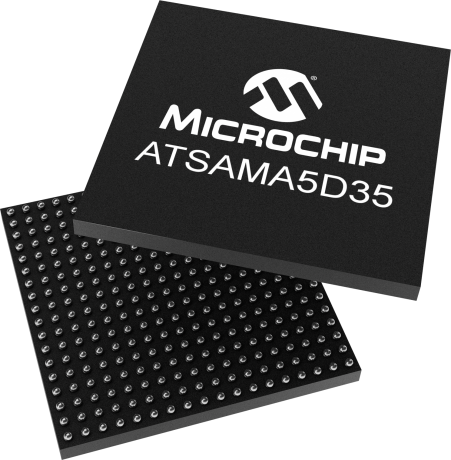

product primary image

ATSAMA5D35

Status: In Production

Features:

  • Low System Cost and High Value Integration:
  • Gigabit EMAC and 10/100 EMAC
  • 0.8mm ball pitch package reduces PCB design complexity
  • Simple power management scheme
  • Ultra-Low Power Consumption:
  • Ultra-low-power architecture for extensive battery life
  • <200uA retention mode with fast wake-up
  • Application Security:
  • Hardware encryption engine
  • Extensive Ecosystem:
  • Free Linux® and Qt SDK
  • Complete set of C examples for non-OS users
  • Low-Cost Development board
  • Multiple third-party software and hardware partners
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SAMA5D3 series is a high-performance, ultra-low-power ARM Cortex-A5 processor-based MPU.  The Cortex-A5 runs up to 536MHz and features a 128KB L2 cache and a floating-point unit.  It supports multiple memories, including DDR2 and LPDDR2.  It integrates powerful peripherals for connectivity:  Gigabit EMAC and/or 10/100 EMAC, 3 HS USB ports, up to 2 CAN ports, up to 3 SDIO/SD/MMC, up to 7 UARTs; and for user interface applications:  TFT LCD controller, touch controller, and a CMOS sensor (camera) interface.  These devices offer application security functions to protect against hacking such as a hardware encryption engine supporting AES, 3DES, as well as secure Hash Algorithm (SHA) and True Random Number Generator (TRNG) and a secure boot loader.  These devices come with a free main-lined Linux distribution.

Additional Features
    • Low System Cost and High Value Integration:

    - Gigabit EMAC and 10/100 EMAC

    - 0.8mm ball pitch package reduces PCB design complexity

    - Simple power management scheme

    - 4-layer PCB

    • Ultra-Low Power Consumption:

    - Ultra-low-power architecture for extensive battery life

    - <200uA retention mode with fast wake-up

    - 5uA in backup mode

    • Application Security:

    - Hardware encryption engine

    - Secure boot

    • Extensive Ecosystem:

    - Free Linux® and Qt SDK

    - Complete set of C examples for non-OS users

    - Low-Cost Development board

    - Multiple third-party software and hardware partners

Parametrics
Name
Value
Part Family
SAMA5D3
Core
Cortex-A5
FPU
Yes
Max CPU Speed (MHz)
536
Core Voltage Range (V)
1.08 to 1.32
Vbat/Vddbu battery backup
Yes
Internal Oscillator
32kHz, 12MHz
SRAM (KB)
128
L1 Cache Memory (Instructions) (KB)
32
L1 Cache Memory (Data) (KB)
32
DRAM Interface
LPDDR/DDR2/LPDDR2
DRAM Bus Size (Bits)
32
NAND Interface
Yes
ECC Bits on NAND Interface
24
Number of EBIs
1
SDIO/SD-CARD/eMMC
3
Direct Memory Access Channels
39
Max I/O Pins
160
Pincount
324
UART
6
ISO 7816
4
SPI
6
I2C
3
SSC
2
CAN
2
Type of CAN Module
CAN
USB Device and Host Ports
1 HS
USB Host Only Ports
2 HS
10/100 Ethernet MAC
1
10/100/1000 Ethernet MAC
1
Ethernet PTP & AVB Support
Ethernet PTP
Camera Interface
Yes
Secure Bootloader
Yes
Crypto Engine
Yes
ADC Input
12
Max ADC Resolution (bits)
12
Max ADC Sampling Rate (ksps)
1000
Hardware RTCC/RTC
Yes
Watch Dog Timer
Yes
Max 16-Bit Digital Timers
4
Max 32-Bit Digital Timers
6
Input Capture
6
Standalone Output Compare/Standard PWM
6
Quadrature Encoder Interface
2
Temperature Range (C)
-40 to 105

Documents

Jump to:

Data Sheets

09/14/2018
8052KB

Application Notes

Download All

Brochures

03/14/2018
2472KB
12/10/2016
499KB
07/25/2019
306KB

User Guides

Development Environment

  • Integrated Development Environments
  • Demo & Evaluation Boards
Integrated Development Environments
AT91SAM-ICE
SAM-ICE ( AT91SAM-ICE )

SAM-ICE is a JTAG emulator designed for SAMA5, SAM3, SAM4, SAM7 and SAM9 ARM® core-based MCUs and MPUs, including Thumb mode. It supports download speeds up to 720K Bytes per second and maximum JTAG speeds up to 12 MHZ. It also supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV) from SAM-ICE hardware V6.

The AT91SAM-ICE catalog part number (CPN) will be moving to End of

...

Learn More
DV164232
J-32 Debug Probe ( DV164232 )

The J-32 Debug Probe Debugger/Programmer provides affordable, fast and easy debugging and programming for Microchip’s PIC32 and SAM MCU and SAM MPU products. It is fully integrated into Microchip’s powerful MPLAB® X Integrated Development Environment and easy-to-use Integrated Programming Environment. Connecting existing hardware is simple as it keeps the

...

Learn More
Linux4SAM.org
Linux4SAM (Linux software and tools) ( Linux4SAM.org )

The Linux OS and Microchip’s microprocessors (MPUs) have gone hand in hand since 2002 when our first MPU, the AT91RM9200, was introduced. By supporting mainline Linux, you receive the full support of the open source community to create high-quality solutions. Microchip has been mainlining its kernel, bootloader and drivers since 2004, and mainlining has become a centerpiece of our Linux...

Learn More
SAM-BA In-system Programmer
SAM-BA In-system Programmer ( SAM-BA In-system Programmer )

Microchip SAM Boot Assistance (SAM-BA) software provides an open set of tools for in-system programming of Microchip ARM Thumb-based microcontrollers and microprocessors.

The latest generations of MPUs are support on SAM-BA v3 available on the SAM-BA github site.
For MCUs and legacy MPUs the latest versions of SAM-BA v2

...

Learn More
Software Package
Software Package ( Software Package )

Microchip’s software packages deliver a set of C-drivers that run on the evaluation kits and exercise all peripherals. The software packages are also very useful for board bring-up as well as quick prototyping.

The software packages consist of drivers, software services and libraries. For Microchip’s microprocessors, each software module is provided with full source code,

...

Learn More
Demo & Evaluation Boards
SAMA5D3-XPLD
SAMA5D3-XPLD ( ATSAMA5D3-XPLD )

The SAMA5D3 Xplained is a fast prototyping and evaluation platform for microprocessor-based design. The board comes with a rich set of ready to use connectivity and storage peripherals and expansion headers for easy customization. A Linux distribution and software package gets you evaluating fast. A USB device connector can be used to power the board as well as programming and debugging it.

Learn More
Add To Cart
KSZ9477 Managed Switch Evaluation Board with SAMA5D36 MPU
KSZ9477 Managed Switch Evaluation Board with SAMA5D36 MPU ( EVB-KSZ9477-1 )

This is the evaluation board for the KSZ9477S 7-Port Gigabit Ethernet Switch (also KSZ9567 and KSZ8567). The SAMA5D3 processor manages the switch and includes the ATECC508A security encoder. The DSC1101 is the reference clock for GigE communication. The EVB can be used to implement IEEE 1588v2, AVB and DLR/HSR (available on KSZ9477 only) network redundancy. Combine multiple boards to implement

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATSAMA5D35A-CN
0.508300
1.515873
324
LFBGA
15x15x1.4mm
SAC105
e8
ATSAMA5D35A-CNR
0.508300
1.450000
324
LFBGA
15x15x1.4mm
SAC105
e8
ATSAMA5D35A-CU
0.508300
1.515873
324
LFBGA
15x15x1.4mm
SAC105
e8
ATSAMA5D35A-CUR
0.508300
1.450000
324
LFBGA
15x15x1.4mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
