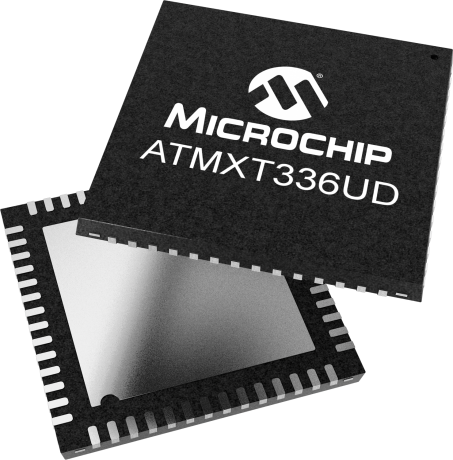

product primary image

ATMXT336UD

Status: In Production

Features:

  • IEC/UL 60730 Class B Certified (mXT336UD-MAUHA1 only)
  • IEC 61000-4-6, 7Vrms, Class A (normal touch operation) conducted noise immunity
  • Scaled Deltas (remove false touches while cleaning with bleach or Windex)
  • Supports multi finger thick glove (5mm) touch
  • Supports thick lenses up to 10mm glass
  • Adaptive Sensing (Self and Mutual cap)
  • Communication via I2C interface
  • Supports up to 10 concurrent touches in real time with touch area reporting
  • Superior moisture performance
  • High voltage option via internal voltage pump to increase signal to noise ratio (SNR)
  • Operating temperature range of -40 to +85 deg C
  • Package: 56-pin XQFN
  • Comprehensive evaluation kit including touch sensor
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The ATMXT336UD touchscreen controller family has 2 derivatives and is aimed at display sizes up to 7-inch used in Industrial, Appliance or medical designs. Proprietary differential touch sensing delivers unparalleled noise immunity ensuring superior touch performance even in harsh environments. It enables detection and tracking of multi-finger thick gloved touch through a wide variety of overlay materials and thicknesses, even in the presence of moisture, water and even salt water. This SNR combined with a high acquisition speed provides a fast, accurate and reliable a touch position. The controller also incorporates a new self and sensor diagnostic function, which constantly monitors the integrity of the touch system.

A derivative of the MXT336UD touchscreen family, the HA1 version is aimed at the home appliance market where Functional Safety is required. This device is IEC/UL 60730 certified and offers unique safety-related features that enable system shut off through an intuitive soft button on a touchscreen, removing the requirement for an external safety certified stop or cancel button and associated microcontroller (MCU). They also allow an appliance to detect a touchscreen or appliance failure and shut down automatically through a variety of self-test capabilities.

Support: off the shelf maXTouch standard modules are available to help shorten development time and reduce risk. Microchip also has a strong selection of factory trained global touch sensor module partners to help support custom touch sensor and/or touchscreen display designs.

Parametrics
Name
Value
Interface Type
I2C
Max Screen Size (Inch)
7.1
Touch Response
> 100 Hz
Temperature Range (degC)
-40 to 85
Number of Touches
10
Max Nodes Supported
336

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
D21 Bridge Board
D21 Bridge Board ( THW1027 )

This maXTouch USB Bridge product provides an interface to connect the I2C or SPI compatible based maXTouch devices to PC-based applications through a USB port.

The D21 bridge board significantly improves data throughput, increasing test and production efficiency. This board is twice as fast as other maXTouch bridge boards (ATUSB-PCB-80146 and ATUSB-I2C-AUTO-PCB).

Learn More
Add To Cart
ATMXT336U-DEV-PCB
ATMXT336U-DEV-PCB ( ATMXT336U-DEV-PCB )

This PCB (ATMXT336U-DEV-PCB) is for the evaluation and development of Microchip maXTouch applications using the ATMXT336U Touchscreen Sensor IC.

Learn More
Add To Cart
ATEVK-MXT336U-A
ATEVK-MXT336U-A ( ATEVK-MXT336U-A )

This kit (ATEVK-MXT336U-A) is for the evaluation and development of Microchip maXTouch applications using the ATMXT336U Touchscreen Sensor IC.

Learn More
Add To Cart
ATUSB-HSBB-PCB
ATUSB-HSBB-PCB ( ATUSB-HSBB-PCB )

This maXTouch USB Bridge product is an ARM-based interface to convert I2C or SPI and debug signals to USB and communicate with the PC-based applications. This product is designed to be used with Microchip Automotive maXTouch touchscreen controllers.

Learn More
Add To Cart
USB Interface PCB
USB Interface PCB ( ATUSB-PCB-80146 )

This maXTouch USB Bridge product provides an interface to connect the I2C compatible based maXTouch devices to PC-based applications through a USB port.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT336UD-MAUHA1
0.051300
0.506122
56
XQFN
6x6x0.4mm
Matte Tin
e3
ATMXT336UD-MAURHA1
0.051300
0.325250
56
XQFN
6x6x0.4mm
Matte Tin
e3
ATMXT336UD-MAU001
0.051300
0.506122
56
XQFN
6x6x0.4mm
Matte Tin
e3
ATMXT336UD-MAUR001
0.051300
0.325250
56
XQFN
6x6x0.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
