High Reliability, Low Cost and Short Lead Times for New Space Applications

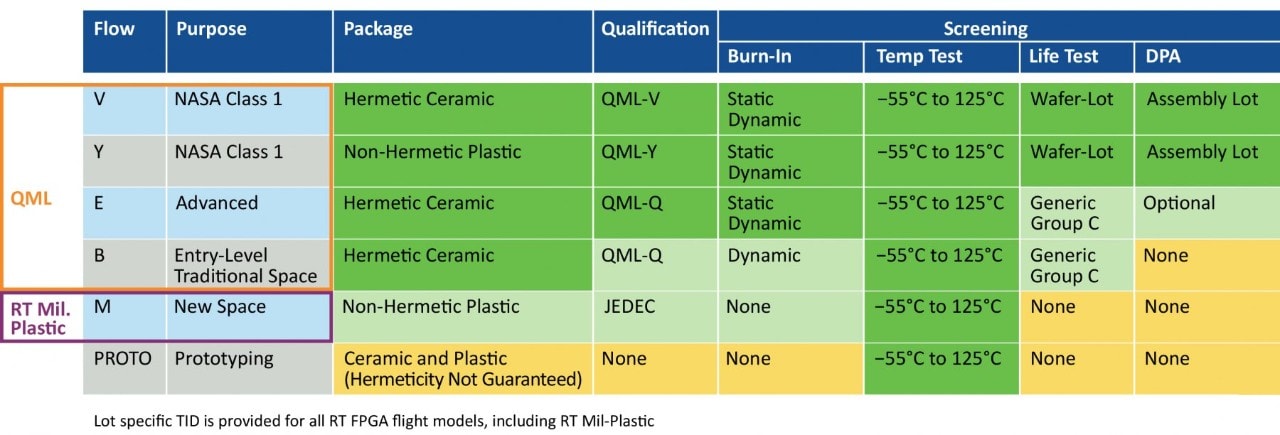

Qualification and Screening Flows
Key Benefits of RT Mil-Plastic FPGAs
Radiation Tolerance
RT Mil-Plastic FPGAs offer the same silicon reliability and radiation performance as QML FPGAs.
Reliability
Using the same technology as the equivalent QML components, our RT Mil-Plastic FPGAs offer the highest reliability in the industry.
Screening and Qualification
The reduced screening flows and JEDEC qualification for RT Mil-Plastic FPGAs result in lower costs and shorter lead times for satellite constellations.

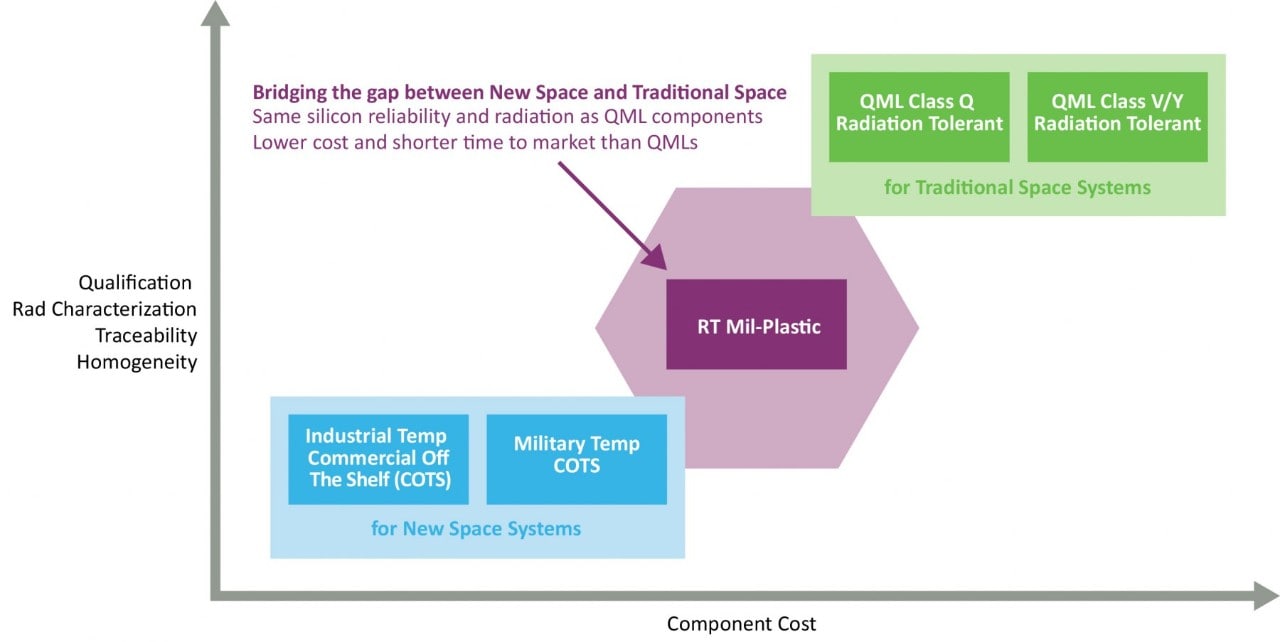

Ability to Solve Key Market Issues
RT Mil-Plastic FPGAs provide a faster and more economical production path for developers of New Space missions while delivering high reliability and radiation protection.
Featured Applications and Capabilities
RT Mil-Plastic FPGAs are excellent options for New Space constellations, medical electronics, nuclear power plant control and many other applications.
Space
Radiation and Reliability
Radiation-Tolerant FPGAs
RTG4 FPGAs
AEC-Q Reports
PolarFire® FPGAs
|
