Overview

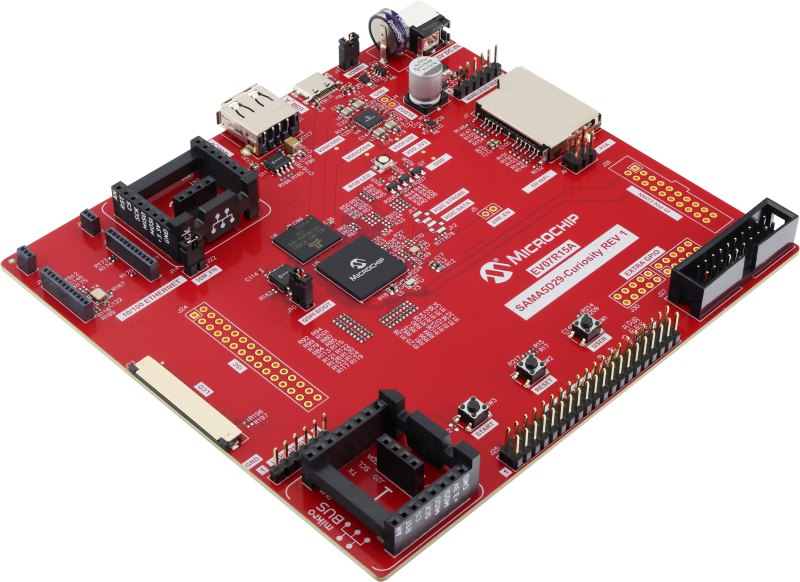

The SAMA5D29 Curiosity Board is intended for evaluating and prototyping with the SAMA5D2 series microprocessors and associated SIPs. The SAMA5D2 series is a high-performance, low-power Arm Cortex-A5 CPU-based embedded microprocessor (MPU) running up to 500 MHz, with support for multiple memories such as DDR2, DDR3L, LPDDR2, LPDDR3, and QSPI and e.MMC Flash. The device integrates powerful peripherals for connectivity and user interface applications, and offers advanced security functions (Arm TrustZone® , tamper detection, secure data storage, secure boot, etc.), as well as high-performance crypto accelerators AES, SHA and TRNG.
The SAMA5D29 Curiosity Board features connectors and expansion headers for easy customization and quick access to leading edge embedded features such as MIKROE Click boards™ and Raspberry Pi expansion header. The kit is supported by mainline Linux distribution as well as bare metal software frameworks and RTOS allowing you to easily get started with your development.
- SAMA5D29-CN Microprocessor
- Cortex-A5 running up to 500MHz
- 128KB SRAM
- 24-bit RGB LCD Display Interface
- 12-bit RGB camera
- 10/100 Ethernet RMII Ethernet Slot
- 2 I2SMCC
- 2 CAN-FD via mikroBUS
- 3 High-Speed USB ports
- One 16-bit, 4Gb LPDDR2
- One 64 Mb QSPI NOR Flash
- 1 SD card slot (full-size)
- 2 HS USB ports (1x Type-A; 1x Type-C)
- Bluetooth UART header
- 40-pin Raspberry Pi GPIO expansion header
- 2 mikroBUS™ connectors
- USB powered
- SAMA5D29 Curiosity Board
- USB-A to USB Micro-AB cable
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| SAMA5D29 Curiosity User's Guide | User Guide | Download | ||
| SAMA5D29 Data Sheet | Data Sheets | PDF | HTML | ||
| SAMA5D29 Silicon Errata and Data Sheet Clarification | Errata | PDF | HTML | ||
| Getting Started with the SAMA5D29-Curiosity Board (EV07R15A) | Tech Brief | PDF | HTML | ||
| Linux Basics and Solutions for Microprocessors | Application Notes | Link | Download | |
| SAMA5D2 Linux® Secure Boot | Application Notes | Link | Download | |
| CAN FD and LCD Integration Harmony Application | Software Libraries and Firmware | Download | ||
| EV07R15A design and manufacturing files | Board Design Files | Download | ||
| Getting Started Linux OS Development | Software | Link | ||
| SAMA5D2 Series Boot Process | Software | Link | ||
| MPLAB Harmony v3 Application Examples (USB, Ethernet etc.) | Software | Link | ||
| Developer Help ( Training Modules) | Software | Link |
