Robust Security for Embedded Systems
Protecting embedded systems with robust security is essential in Internet of Things (IoT), automotive, medical, consumer, wireless, industrial and other connected designs. Security standards are available and constantly evolving to reinforce requirements of IoT applications. Many automotive Original Equipment Manufacturers (OEMs) are including security in their design specifications to protect Electronic Control Units (ECUs) in connected vehicles from attacks.
No matter what market or application they address, these security specifications all contain similar requirements:
- Unique passwords for all devices without default passwords
- Secure storage to isolate sensitive cryptographic keys
- Firmware verification at boot to ensure integrity before execution and after software updates
- Secure communication between devices or ECUs and the external world
dsPIC33A DSCs with Integrated Cryptographic Accelerators
Real-Time Control, Functional Safety, Advanced Analog
- Crypto accelerator for ECC, RSA, AES, SHA algorithms
- Security module for device locking, configurable Flash access control and Immutable Root of Trust (IRT)
- Immutable secure boot
- Secure firmware upgrade (with live update)
- IP protection
- Secure debug
- Flash configurable as One-Time Programmable (OTP) memory
- Specialized features for digital power, motor control, advanced sensing, touch and high-performance designs
- Automotive AEC-Q100 Grade 0 qualified
dsPIC33C MPT DSC with Integrated HSM
Real-Time Control, Functional Safety, Robust Security
- Robust security with the simplicity of an MCU
- Off-die secure subsystem that is compliant with the EVITA Full Specification for automotive security
- Immutable secure boot
- Secure firmware upgrade (with live update)
- Secure on-board communication and message authentication
- Electronic Control Unit (ECU) authentication
- WPC 1.3 Qi® high-power wireless charger authentication
- IP protection
- Disable debug mode
- Flash configurable as One-Time Programmable (OTP) memory
- Specialized features for digital power, motor control, advanced sensing, touch and high-performance designs
- Automotive AEC Q100 Grade 1 qualified
dsPIC33C DSCs
High-Performance Dual- and Single-Core DSCs, Functional Safety
- 100 MHz performance for real-time control and deterministic response
- CodeGuard security and Flash OTP for secure, immutable boot and firmware upgrades
- Excellent for high-performance embedded, digital power, motor control and functional safety applications requiring security
- For use with our ATECC608 or TA100 secure elements for robust security
Secure applications can be designed using either the dsPIC33A DSC with cryptographic accelerators or the dsPIC33C DSCs combined with our ATECC608 CryptoAuthentication™ and TrustAnchor100 (TA100) CryptoAutomotive™ security ICs.
Our dsPIC33C DSCs deliver high performance, low power consumption and an application-specific feature set for low-power security, sensor interfacing, real-time control, functional safety, digital power conversion, Qi® wireless charger and motor control applications.
dsPIC33 DSCs for Your Secure Applications
dsPIC33 DSC Development Ecosystem for Secure Applications
- dsPIC33A DSCs with Cryptographic Accelerators
- dsPIC33C and dsPIC33C-MPT DSCs
Secure Boot and Secure Firmware Upgrades: dsPIC33A DSC Bootloader Demo
The dsPIC33A DSC bootloader demo leverages the Crypto Accelerator Module (CAM) and hardware security features of the dsPIC33A DSC to implement secure boot and secure firmware upgrades.
Cryptographic Library for dsPIC33A DSCs
This library provides an easy-to-use abstraction layer for the crypto accelerators on dsPIC33A DSCs.
Key Features
- Comprehensive library supporting symmetric and public-private key cryptography, hashing functions, digital signature algorithms and True Random Number Generators (TRNG)
- Essential building block for implementing security use cases such as secure boot, secure firmware updates and secure communication
Secure Boot and Secure Firmware Upgrades: dsPIC® Bootloader Library
The bootloader in MPLAB® Code Configurator (MCC)/MPLAB Harmony leverages the hardware- security features of the dsPIC33A and dsPIC33C to implement secure boot and secure firmware upgrades. This library can also be used for applications using the dsPIC33 DSCs with ATECC608 and TA100.
CryptoAuthLib Library
Designed to work with the ATECC608 CryptoAuthentication and TA100 CryptoAutomotive devices, this software support library is available with MCC as a component of any application or device driver that requires crypto services from a crypto coprocessor. It works seamlessly with the dsPIC33C DSCs.
Node Authentication and Secure Communication: Cloud Connectivity
Visit our Internet of Things area to learn about reference applications for the dsPIC33C DSCs that use the CryptoAuthLib library to showcase Amazon Web Service (AWS) and Microsoft® Azure® Cloud connectivity. These reference applications, which are based on our PIC-IoT series of development boards, demonstrate secure node authentication and secure communication.
Secure Provisioning
Avoid the high risks of exposure to your keys and reduce the costs of mass production by leveraging our secure key provisioning service. Our Trust platform provisioning service prevents your credentials from being exposed at any time during product development and production, while also eliminating the need for extensive knowledge of and the necessary secure networks to handle cryptographic keys securely.
Secure Bootloader Solutions by wolfSSL
With its minimalistic approach, the wolfBoot bootloader enables designs with low footprints and high performance. It is a part of wolfSSL's suite of security products, which also includes the wolfCrypt advanced crypto engine.

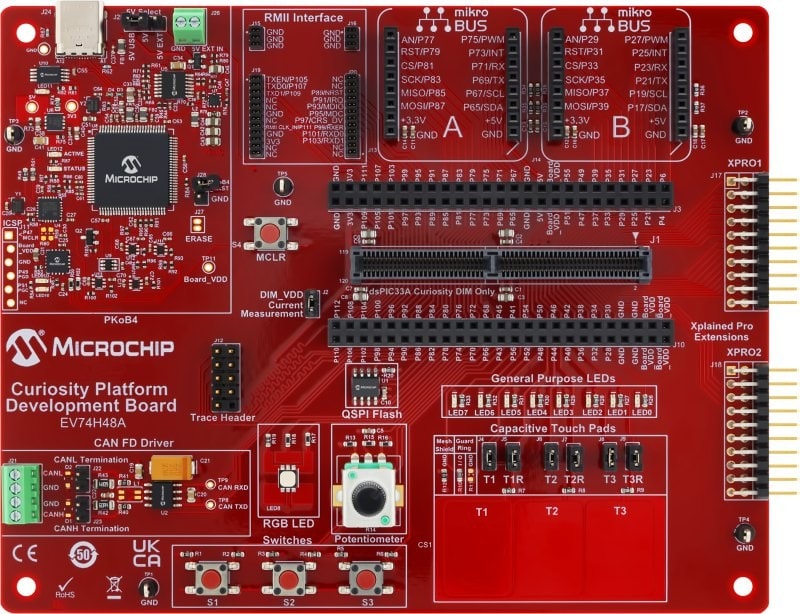

Curiosity Platform Development Board
Part Number: EV74H48A
This board enables you to explore the capabilities of the dsPIC33A DSC family. The board operation requires the insertion of a 120-pin, general-purpose Dual-In-Line Module (DIM) with the dsPIC33A DSC.

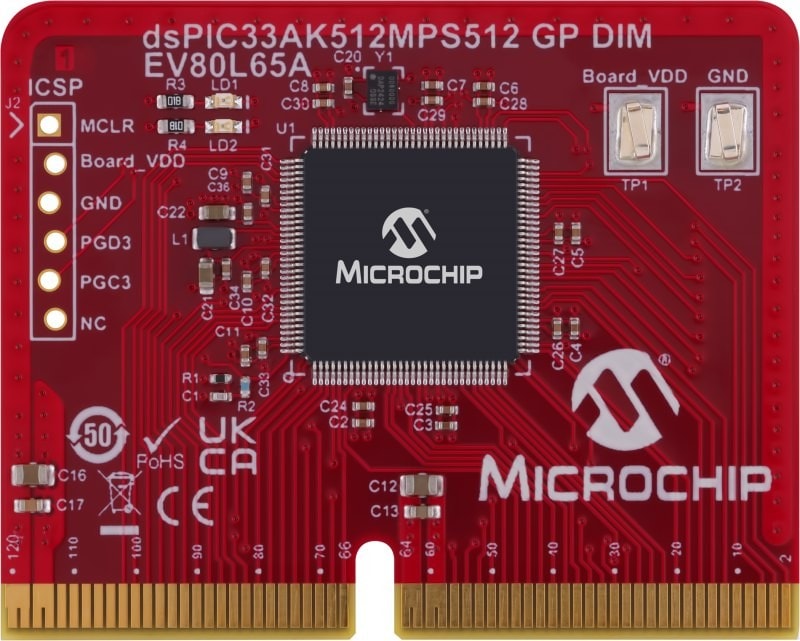

dsPIC33AK512MPS512 General-Purpose DIM
Part Number: EV80L65A
This DIM helps to design general-purpose and robust applications using the dsPIC33AK512MPS512 DSC family of devices with the EV74H48A Curiosity Platform Development Board.

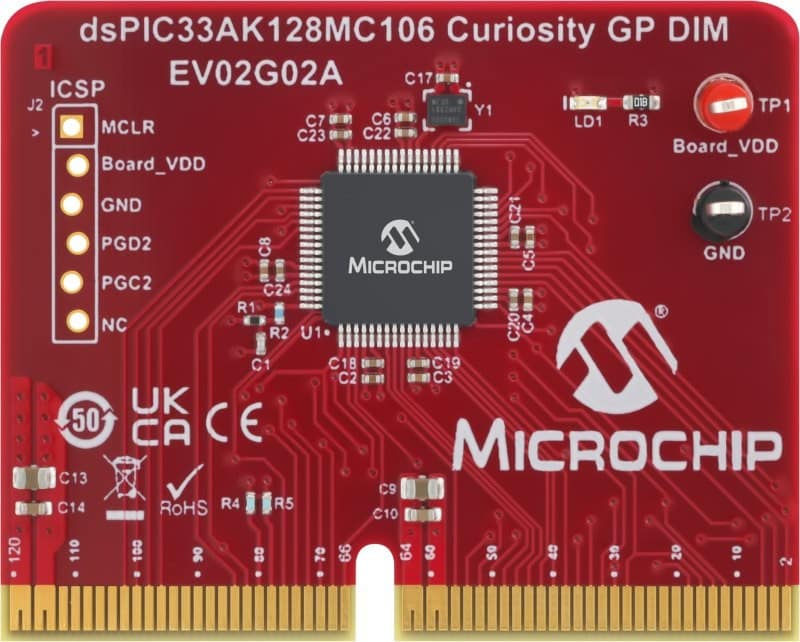

dsPIC33AK128MC106 General-Purpose DIM
Part Number: EV02G02A
This DIM demonstrates the capabilities of the dsPIC33AK128MC106 family using the EV74H48A Curiosity Platform Development Board for a variety of applications.

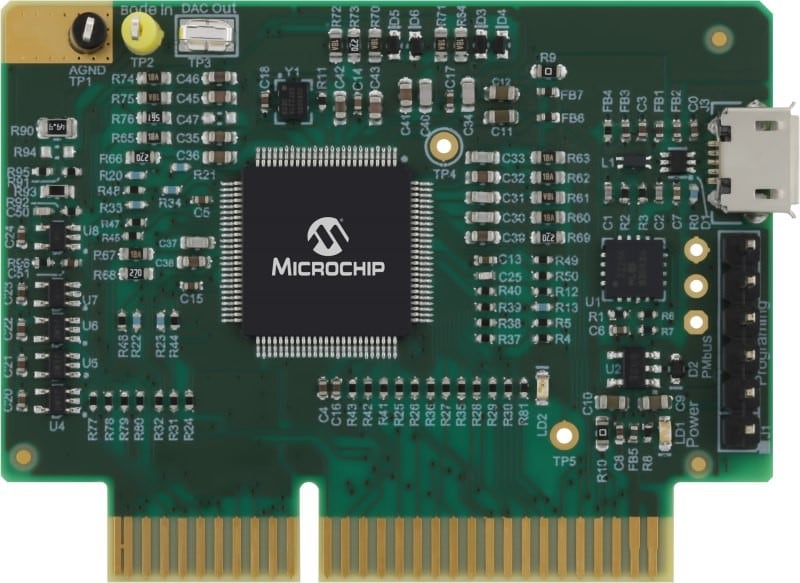

dsPIC33CK512MPT608 Digital Power PIM
Part Number: EV08U25A
This DP PIM allows the controller to be easily swapped out for various dsPIC33 family devices providing flexibility and reducing customers’ development efforts.

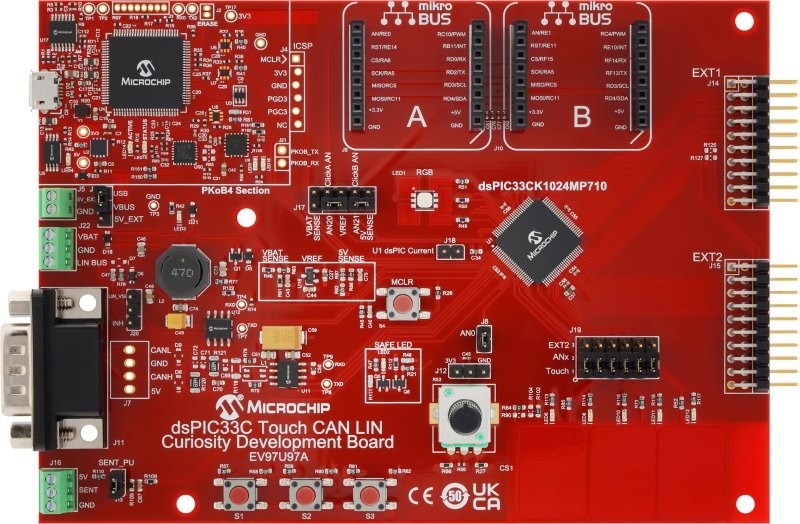

dsPIC33C Touch CAN LIN Curiosity Development Board
Part Number: EV97U97A
The onboard touch buttons, slider and QT Touch extension boards interfaced via the Xplained Pro connector simplify the evaluation of different capacitive touch use cases.
dsPIC33CK512MPT608 Secure DSC PIM
Part Number: EV10H29A
This PIM helps with the evaluation of dsPIC33CK512MPT608 and dsPIC33CK256MPT608 secure DSCs. The PIM works with the DM240001-2 Explorer 16/32 Development Board.

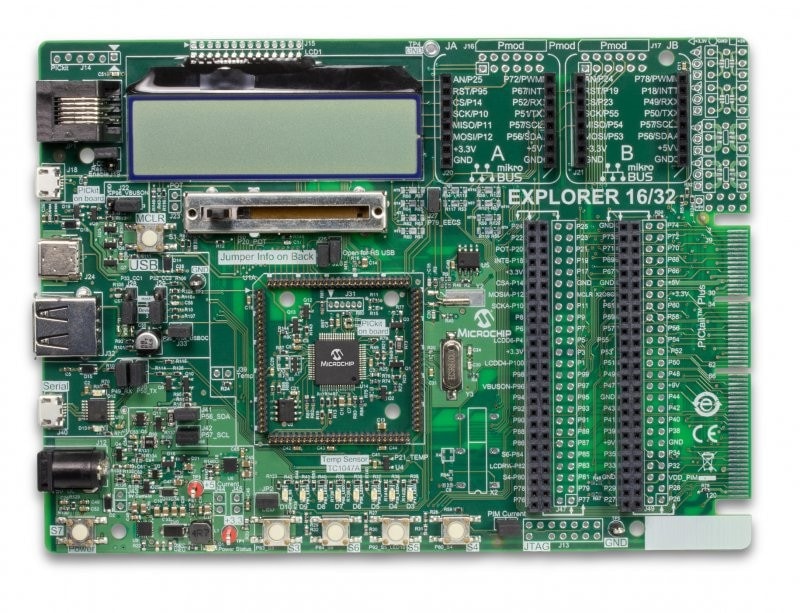

Explorer 16/32 Development Board
Part Number: DM240001-2
This is a flexible and convenient development and testing platform with all the necessary hardware for 16-bit MCUs, dsPIC® DSCs and 32-bit PIC32 MCUs.
dsPIC33CK Curiosity Development Board
Part Number: DM330030
The dsPIC33CK Curiosity Development Board is a cost-effective development and demonstration platform for the dsPIC33CK family of single-core high performance DSCs.

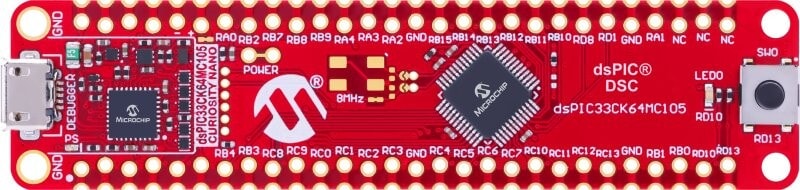

dsPIC33CK Curiosity Nano Evaluation Kit
Part Number: EV88G73A
A cost-effective hardware platform to evaluate the dsPIC33CK family of DSCs. This board provides easy access to all features of the dsPIC33CK64MC105 DSC for rapid prototyping.
TA100 8-Pin SOIC CryptoAutomotive Socket Board
Part Number: AC164167
The socket board is used with MCU boards that support the mikroBUS™ extension header and develop applications and require the TA100 or TA101 devices.
ATECC608B Trust
Part Number: DT100104
This is an add-on board for our CryptoAuth Trust Platform Development Kit and other development boards that contain a mikroBUS header. The board helps prototype applications that utilize the ATECC608B or ATECC08C devices.

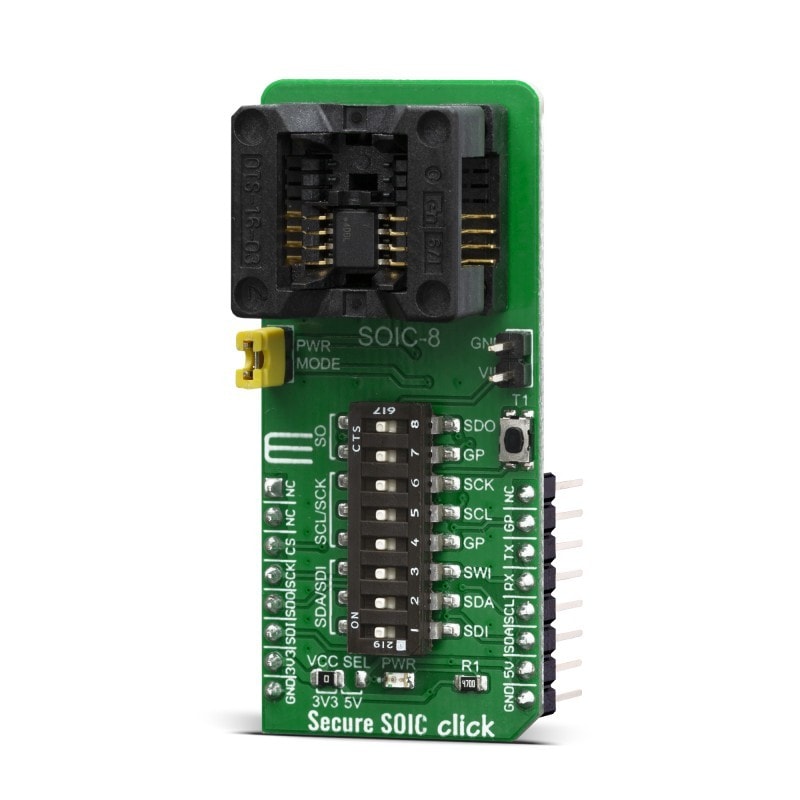

Secure SOIC/UDFN Click
Part Numbers: MIKROE-3788/MIKROE-3746
The secure SOIC Click is designed for our CryptoAuthentication™ devices in an 8-pin SOIC package.
This secure UDFN Click is designed for the CryptoAuthentication devices in an 8-pin UDFN package.
These boards support the SPI, I2C and Single Wire Interface (SWI)-based ICs from the CryptoAuthentication family for various security applications.
OCP Power Supply – SPDM Solution Demonstration Application
This demo application utilizes a dsPIC33C MPT secure DSC or dsPIC33C DSC in conjunction with the TA100 CryptoAutomotive™ security IC to implement the Security Protocol and Data Model (SPDM) specification. This enables a digital power solution that satisfies the security requirements for an OCP-compliant power supply.
Security Webinars
Join our security experts and partners to learn about the latest trends and new developments for safeguarding your designs.
Technical Training Courses on Embedded Security
Available for free and on demand from Microchip University, our dsPIC Bootloaders Using MCC: Device Side offers a live demonstration of implementing a bootloader, secure boot and secure firmware upgrades.
dsPIC® DSC Bootloaders Using MCC–Device Side
Focuses on developing a secure 16-bit bootloader and a generic bootloader with dsPIC33 DSCs
Cryptography Primer
Fundamentals of symmetric and asymmetric cryptography and how to apply each in real-world situations
Microchip's Coordinated Vulnerability Disclosure Process
In the event of the discovery of a vulnerability in any of our products, tools, software or firmware solutions, our Product Security Incident Response Team (PSIRT) is set up to ensure that the vulnerability is mitigated and communicated responsibly. Use the link below to follow our coordinated disclosure process to report your findings.
