Overview

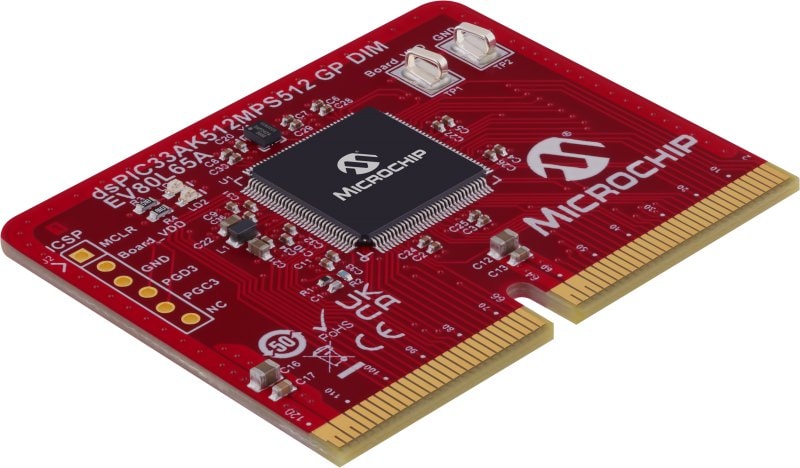

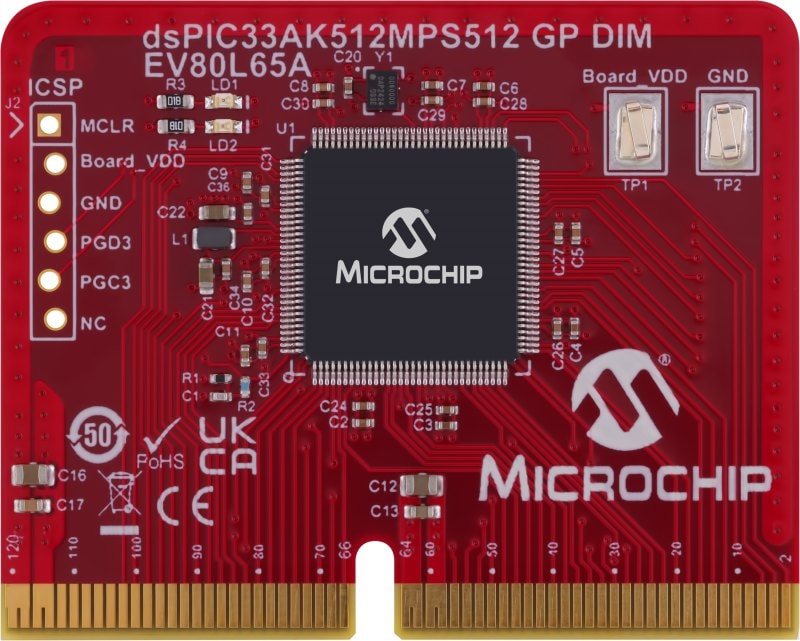

The dsPIC33AK512MPS512 General Purpose DIM (EV80L65A) is designed to demonstrate the capabilities of the dsPIC33AK512MPS512 family using the Curiosity Platform Development Board (EV74H48A) for a wide variety of applications.
Curiosity Platform Development Board
The Curiosity Platform Development Board (EV74H48A) is a full-featured development and demonstration platform enabling customers to explore the capabilities of the dsPIC33A Digital Signal Controller (DSC) family. The board operation requires the insertion of a 120-pin General Purpose Dual In-Line Module (DIM) containing a dsPIC33A DSC device
- 120-pin connector supports higher-pin count packages
- DIMs have a reduced socketing insertion force
- Keyed design ensures correct board orientation
- Provides support for the entire dsPIC33AK512MPS512 DSC family
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| dsPIC33AK512MPS512 General Purpose Dual In-Line Module (DIM) Information Sheet | Information Sheets | Download | ||
| dsPIC33AK512MPS512 GP DIM Board Design Files | Board Design Files | Download | ||
| dsPIC33AK512MPS512 Curiosity GP DIM Out of Box Demo Code Project | Code Examples | Link |
| Tool Details |
|---|
The Curiosity Platform Development Board (EV74H48A) is a full-featured development and demonstration platform enabling customers to explore the capabilities of the dsPIC33A Digital Signal Controller (DSC) family and also the PIC32A MCU family. The board operation requires the insertion of a 120-pin General Purpose Dual In-Line Module (DIM) containing a dsPIC33A DSC device or a PIC32A MCU device.
|
