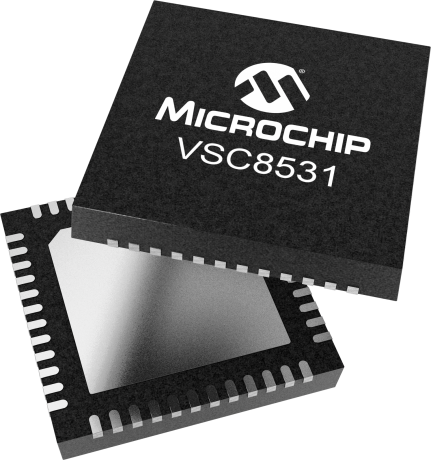

product primary image

VSC8531

1 Port GbE Cu PHY with RGMII/RMII (Ind. Temp)

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Low-power, small form-factor Cu PHY with IEEE 802.3az Energy Efficient Ethernet (EEE) and Wake-on-LAN (WoL), with widest I/O LVCMOS support. The VSC8531 device, offered in a tiny 6 mm x 6 mm single-row QFN package, is designed for space-constrained 10/100/1000BASE-T applications. It features integrated line-side termination to conserve board space, lower EMI, and improve system performance. Additionally, integrated RGMII version 2.0 standard timing compliant compensation eliminates the need for on-board delay lines. The device supports the industry's widest range of LVCMOS levels for a parallel MAC interface including 1.5 V, 1.8 V, 2.5 V, and 3.3 V, as well as 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V support on the MDIO/MDC interface. VSC8531 includes Microsemi's EcoEthernet™ 2.0 technology with Energy Efficient Ethernet and power saving features to reduce power based on link state and cable reach. It optimizes power consumption at all link operating speeds, and features Wake-on-LAN power management using magic packets.

Additional Features
    • EcoEthernet™ 2.0, with Energy Efficient Ethernet (EEE)
    • Widest voltage range, fully-compliant parallel MAC interface device
    • Tiny 6 mm x 6 mm QFN package
    • Configurable drive strength on MAC interface enables better control of system-level EMI/EMC
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000Mbps
LEDs
4
EEE
Yes
Temp. Range Min. (°C)
-40
Wake-on-LAN
No
Automotive
No
Interface1
RMII/RGMII
Ethercat
Yes
Copper Support
Yes
MAC I/O Voltage
1.5/1.8/2.5/3.3
Cable Diagnostics
Yes
On-Chip Termination
Yes
