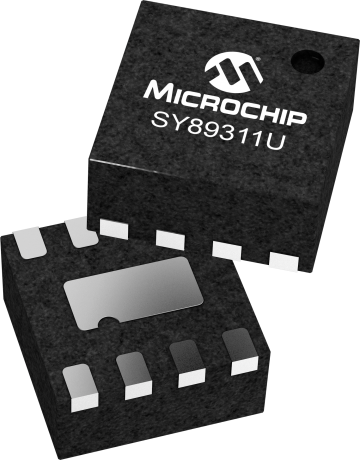

SY89311U

Status: In Production

Features:

  • 2.5V, 3.3V, and 5V power supply
  • >Guaranteed AC parameters over temperature:
  • fMAX >3.0GHz
  • <20ps output-to-output skew
  • <200ps tr/tf
  • <300ps propagation delay
  • 51fsRMS phase jitter (typical)
  • 100K compatible I/O
  • Wide temperature range: –40°C to +85°C
  • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The SY89311U is a precision, high-speed 1:2 differential fanout buffer. Having within-device skews and output transition times significantly improved over the EL11V, the SY89311U is ideally suited for those applications which require the ultimate in AC performance in a small package.The differential inputs of the SY89311U employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open, the Q outputs will be LOW.The differential inputs can accept 10/100K ECL/PECL signals (external termination required) and the outputs are 100K ECL/PECL compatible..

Additional Features
    • 2.5V, 3.3V, and 5V power supply
    • >Guaranteed AC parameters over temperature:
    • fMAX >3.0GHz
    • <20ps output-to-output skew
    • <200ps tr/tf
    • <300ps propagation delay
    • 51fsRMS phase jitter (typical)
    • 100K compatible I/O
    • Wide temperature range: –40°C to +85°C
    • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:2
Input
ECL/PECL/LVPECL/LVECL
Output
ECL/PECL/LVPECL/LVECL
Supply Voltage
2.5/3.3/5
Max Freq (GHz)
3
Max Prop Delay (ps)
300
Max Within Device Skew (ps)
20
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
ECL/PECL/LVPECL/LVECL

Documents

Jump to:

Data Sheets


288KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89311UMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
