Linear Low-Dropout (LDO) Regulators for High-Voltage Automotive Applications
We offer several high-voltage LDO regulators for automotive applications. These LDOs feature high operating input voltage ranges (>45V) and extensive protection capabilities. AEC-Q100 Grade 0 or Grade 1 qualified, these high-performance LDOs are capable of regulating voltages in nearly every automotive application, spanning from switch gear to head units and body electronics.
What Are Applicable Automotive Applications?
- Window and wiper operations
- Seat controls
- Head unit
- Body electronics
- Break out box
- Taillights/headlights
Battery Voltage Levels Supported
- 12V
- 48V
Featured LDO Product

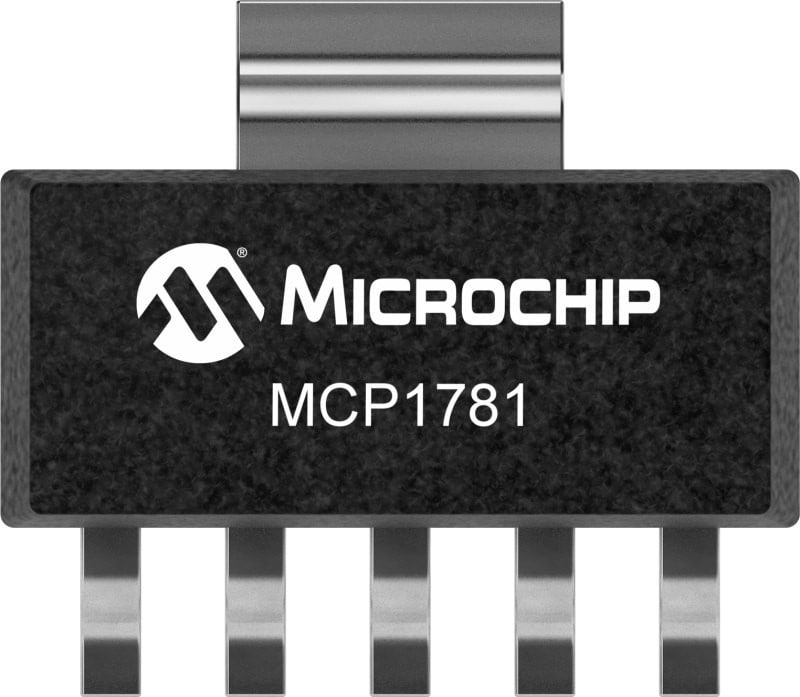

MCP1781
200 mA High-Voltage Automotive LDOQuick Glance:
- Wide input voltage: 4.3-55V
- Output Regulated Voltages: 3.3V and 5.0V (see datasheet)
- Low Quiescent Supply Current: 34 µA typical
- AEC-Q100 Automotive Qualified, See Product Identification System (Grade 0, PPAP Capable)
- Extended Operating Temperature Range: -40°C to +150°C
- Thermal Shutdown Protection: 164°C
