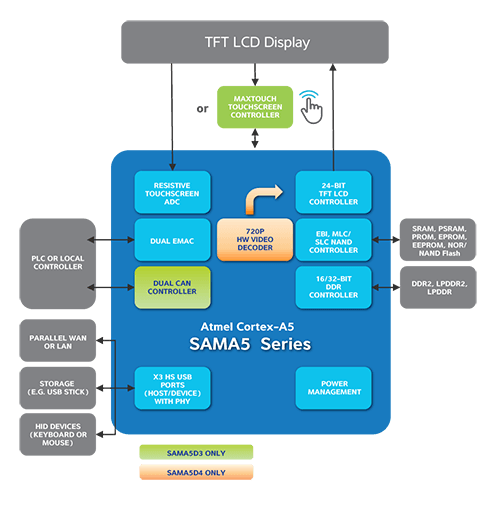

HMI Control Panels

Key Design Considerations

High-performance, high-bandwidth architecture to sustain large screen resolution
Consumer-grade user interface

Up to 600 MHz powerful Arm^® Cortex^®-A5 core with Neon™ technology/vFPU and L2 cache for graphic accelerations as well as a 16-/32-bit DDR memory interface delivering the data bandwidth to achieve high screen resolution and complex animation
720p hardware video decoder to play back H264, VP8 videos
24-bit TFT LCD controller with overlays supporting up to XGA resolution
Free Linux^® distribution with OpenMax/Gstreamer, Qt SDK, free Android™ port, as well as other popular GUIs
