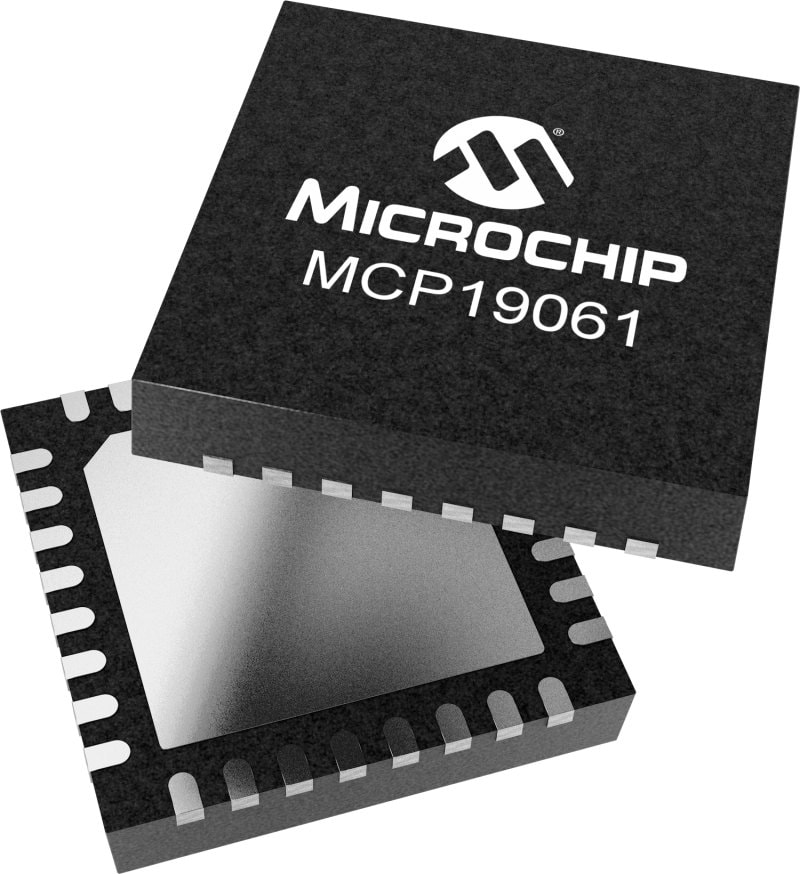

mcp19061-rtb-flipflop2
UCS4002-6NX-FlipFlop2
240214-apid-photo-mcp19061-dual-usb-dcp-reference-board-dynamic2-transparent
240214-apid-photo-mcp19061-dual-usb-dcp-reference-board-front-transparent
240214-apid-photo-mcp19061-dual-usb-dcp-reference-board-back-transparent
240214-apid-photo-mcp19061-dual-usb-dcp-reference-board-angle3-transparent
mcp19061-rtb-flipflop2
UCS4002-6NX-FlipFlop2

Part Number: EA72M20A

USB-C Power Delivery Dual Charging Port Demonstration Kit

  • USB-PD Dual Charging Port demo is used for charging USB-PD connected devices, providing output voltages from 3V to 20V and output currents from 0.5A to 3A.
  • Maximum input voltage ranges from 6A to 18V (Recommended value: 12V)
  • Support total output power of > 100W.
  • Operate in conjunction with the GUI through USB-to-serial bridge.
  • All operational parameters are programmable by utilizing the two integrated UPD microcontrollers.
  • MCP19061 device operates in a 4-switch buck-boost topology for the purpose of supplying USB loads and charging two USB channels.
  • UCS4002 device provides USB-C protection with VCONN-FETs.
  • Fully assembled, programmed and tested to evaluate and demonstrate digitally controlled “Smart Charging” applications for various USB-PD loads.
View Purchasing Options
Contact Us

Overview

The USB-C Power Delivery Dual Charging Port Demo kit is part of Microchip’s Early Access program which allows our customers to purchase our new MCP19061 USB Power Delivery Four Switch Buck-Boost Analog Front End and UCS4002 USB Type-C Port Protection Device, before they are officially released.

Dev Tools Summer Sale

Use Coupon Code: SUMMERSALE

Save 20% on select development tools until the end of July!

Package Contents
  • Demo Board
  • Serial interface board (breakout board)
  • Samples:
    • 5 pcs MCP19061T-E/RTB
    • 5 pcs UCS4002-E/6N
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP19061 Dual Charge Port Board User's Guide Download 730d9c43-7cac-4d04-8d05-b300b5f5a6ad
MCP19061 USB Dual Charge Port (EA72M20A) BOM Download 1a7c40f5-aa75-44a5-99d2-c7da2cf8b4c1
MCP19061 USB Dual Charge Port (EA72M20A) Gerbers Download a2d4b254-11a9-4d1e-9092-eb9692f878ab
MCP19061 USB DCP KIT (EA72M20A) EU-REACH-Statement Download 4c666910-4145-4a3e-a225-44d7a891579a
MCP19061 USB DCP KIT (EA72M20A) China-RoHS-Declaration Download 795e3692-8336-4eec-85cb-28606f1275ae
MCP19061 USB DCP KIT (EA72M20A) EU-DoC Download 7e15eb68-0a08-4164-96f2-eba1931addb1
MCP19061 USB DCP KIT (EA72M20A) UK-DoC Download 41f352ef-f955-443f-85dc-77fac9be70f0

Silicon Products

Product
Title
Product
Title
MCP19061 Synchronous Four Switch Buck-Boost Analog Front End MCP19061 Synchronous Four Switch Buck-Boost Analog Front End
