Overview

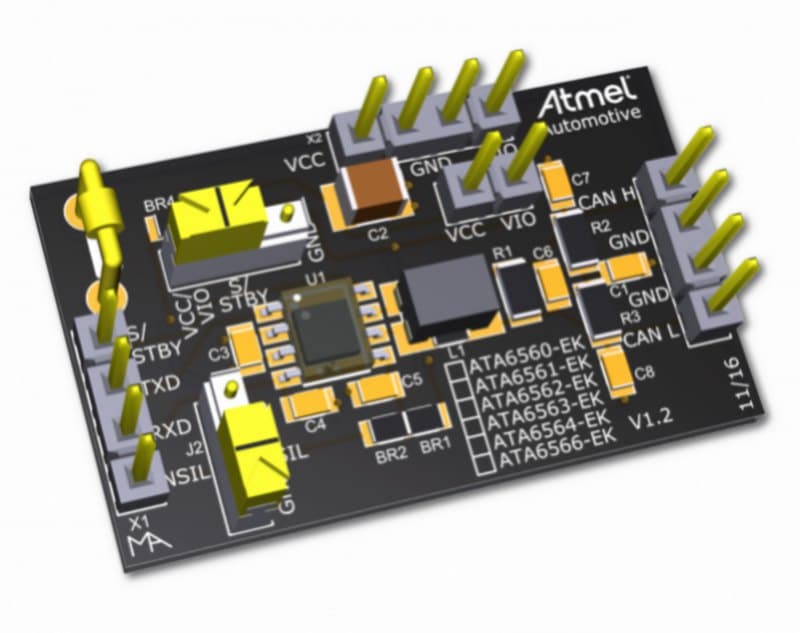

The development board for the ATA6564 enables users to rapidly carry out prototyping and testing of new CAN designs with the ATA6564 high-speed CAN transceivers.
The ATA6564 is a high-speed CAN transceiver that provides an interface between a controller area network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed (up to 5Mbit/s) automotive CAN applica- tions delivering differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. It offers superior electromagnetic compatibility (EMC) and electrostatic discharge (ESD) performance, as well as features such as:
• Ideal passive behavior to the CAN bus when the supply voltage is off
• Direct interfacing to microcontrollers with supply voltages from 3V to 5V
● All components necessary to put the ATA6564 into operation are included
● Placeholders for some optional components for extended functions are included (e.g., common-mode choke)
● All pins are easily accessible
● Footprint for DFN8 and SO8 package
● Ground coulter clip for easy probe connection during oscilloscope measurement
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| ATA6564 High-Speed CAN Tranceiver with Silent Mode - CAN FD Ready | Data Sheets | Download | ||
| ATA6560 ATA6561 ATA6562 ATA6563 ATA6564 ATA6566 Evaluation Kit User’s Guide | User Guide | Download | ||
| ATAN0134: ATA6560 - CAN Transceiver VHDL-AMS Demonstration (Level 2) | Application Notes | Link | Download | |
| ATAN0133: ATA6560 - CAN Transceiver VHDL-AMS Demonstration (Level 1) | Application Notes | Link | Download | |
| ATAN0132: ATA6560 - CAN Transceiver VHDL-AMS Model (Level 2) | Application Notes | Link | Download | |
| ATAN0131: ATA6560 - CAN Transceiver VHDL-AMS Model (Level 1) | Application Notes | Link | Download |
