VSC8541RT

1 Port GbE Cu PHY with SyncE, (R/G/RG)MII

Status: In Production

Features:

  • Ethernet Bandwidth 10/100/1000Mbps
  • Interface - RMII/MII/RGMII/GMII
  • No Single Event Latch-up Below a LET Threshold of 78 MeV.cm2 /mg @125°C
  • Total Ionizing Dose of 100 krad(Si)

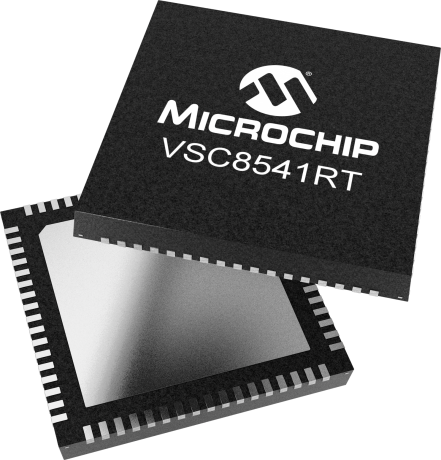

  • VQFN68, 68-lead VQFN, 8 mm x8 mm body size, 0.4 mm pin pitch and 0.9 mm maximum height

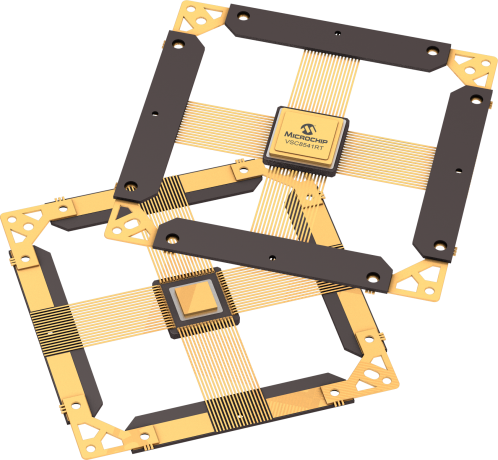

  • CQFP68, 68-lead CQFP, 13.05 mm x13.05 mm body size, 0.635 mm pin pitch and 3.68 mm maximum height
View More

  • Radiation Data
    Available

  • Buy
    Now
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The VSC8541RT device is a radiation tolerant single port Gigabit Ethernet copper PHY targeting space-constrained 10/100/1000BASE-T applications. It withstands the harsh aerospace environment with enhanced radiation performances, extreme temperatures, vacuum and high reliability.

Low-power, small form-factor Cu PHY with IEEE 802.3az Energy Efficient Ethernet (EEE), Wake-on-LAN (WoL), Synchronous Ethernet (SyncE), Start of Frame (SOF), and Fast Link Failure 2.0 (FLF2) indication, with widest I/O LVCMOS support.  The VSC8541RT device  is designed for space-constrained 10/100/1000BASE-T applications. It features integrated line-side termination to conserve board space, lower EMI, and improve system performance. Additionally, integrated RGMII version 2.0 standard timing compliant compensation eliminates the need for on-board delay lines.

The device supports the industry’s widest range of LVCMOS levels for a parallel MAC interface including: 1.5 V, 1.8 V, 2.5 V, and 3.3 V, as well as 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V support on the MDIO/MDC interface. It includes Microchip’s EcoEthernet™ 2.0 technology with Energy Efficient Ethernet and power saving features to reduce power based on link state and cable reach. It optimizes power consumption at all link operating speeds, and features Wake-on-LAN power management using magic packets. The device has a recovered clock output for Synchronous Ethernet applications. Programmable clock squelch control is included to inhibit undesirable clocks from propagating and to help prevent timing loops. Microchip's patented Ring Resiliency™ allows a PHY port to switch between master and slave timing references with no link drop while in 1000BASE-T mode.  VSC8541RT also includes Fast Link Failure (FLF) indication for high availability networks. FLF indication identifies the onset of a link failure in less than 1 ms typical, which goes beyond the IEEE 802.3 standard requirement of 750 ms ±10 ms (link master). In addition, the device adds a programmable threshold for applications where indication of even a potential link drop must be known at the microsecond level (<10 μs).

This space-qualified version of the product adds:  Ceramic & Hermetic packages, extended temperature range -55°C to 125°C, extended qualification flow equivalent to QML-V or QML-Q space grade.

Additional Features
  • Main Characteristics
    • Ethernet Bandwidth 10/100/1000Mbps
    • Interface - RMII/MII/RGMII/GMII
    • EcoEthernet™ 2.0, with Energy Efficient Ethernet (EEE)
    • Fast Link Failure™ 2.0 (FLF2) with failure indication for commutator ring applications
    • Widest voltage range, fully-compliant parallel MAC interface device
    • Start of Frame (SOF) sync for ingress and egress enables high accuracy calculation of latency
    • Configurable drive strength on MAC interface enables better control of system-level EMI/EMC
    • Synchronous Ethernet support and Ring Resiliency\u2122
  • Radiation Performances
    • No Single Event Latch-up Below a LET Threshold of 78 MeV.cm2 /mg @125°C
    • Total Ionizing Dose of 100 krad(Si)
  • Packages
    • VQFN68, 68-lead VQFN, 8 mm x8 mm body size, 0.4 mm pin pitch and 0.9 mm maximum height
    • CQFP68, 68-lead CQFP, 13.05 mm x13.05 mm body size, 0.635 mm pin pitch and 3.68 mm maximum height

Documents

Jump to:

Supporting Collateral

Board Design Files

Brochures


491KB

3359KB

Quality-Reliability-ISOs


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC8541WZBRT-E
0.000000
0.000000
68
CQFP
13.05x13.05x3.40mm
NiAu
e4
VSC8541WZBRT-MQ
0.000000
0.000000
68
CQFP
13.05x13.05x3.40mm
NiAu
e4
VSC8541WZBRT-SV
0.000000
0.000000
68
CQFP
13.05x13.05x3.40mm
NiAu
e4
VSC8541XMVRT-ENG
0.154000
0.884615
68
VQFN
8x8x0.9mm
Matte Tin
e3
VSC8541XMVRT-HP
0.154000
0.884615
68
VQFN
8x8x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
