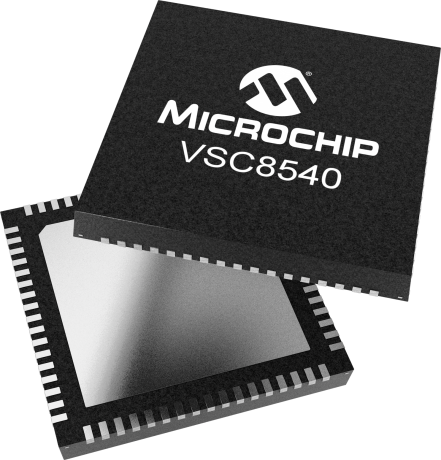

product primary image

VSC8540

1 Port FE Cu PHY with SyncE, RGMII (Ind. Temp

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Low-power, small form-factor Cu PHY with IEEE 802.3az Energy Efficient Ethernet (EEE), Wake-on-LAN (WoL), Synchronous Ethernet (SyncE), and Fast Link Failure 2.0 (FLF2) indication, with widest I/O LVCMOS support. The VSC8540-04 device, offered in a small 8 mm x 8 mm single-row QFN package, is designed for space-constrained 10BASE-TX and EtherCAT® applications. It features integrated line-side termination to conserve board space, lower EMI, and improve system performance. Additionally, integrated RGMII version 2.0 standard timing compliant compensation eliminates the need for on-board delay lines. The device supports the industry's widest range of LVCMOS levels for a parallel MAC interface including 1.5 V, 1.8 V, 2.5 V, and 3.3 V, as well as 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V support on the MDIO/MDC interface. It includes Microsemi's EcoEthernet™ 2.0 technology with Energy Efficient Ethernet and power saving features to reduce power based on link state and cable reach. It optimizes power consumption at all link operating speeds, and features Wake-on-LAN power management using magic packets. The device has a recovered clock output for Synchronous Ethernet applications. Programmable clock squelch control is included to inhibit undesirable clocks from propagating and to help prevent timing loops. VSC8540-04 also includes Fast Link Failure 2.0 indication for high availability networks. As in the original FLF feature on previous generation PHYs, FLF 2.0 indicator identifies the onset of a link failure in less than 1 ms typical (using the default values), which goes beyond the IEEE 802.3 standard requirement of 750 ms ? ms (link master). FLF2 goes beyond the previous FLF indicator by adjusting the programmable threshold for applications where indication of even a potential link drop must be known at the microsecond level (<10 ?s).

Additional Features
  • EcoEthernet™ 2.0, with Energy Efficient Ethernet (EEE)
    • EcoEthernet™ 2.0, with Energy Efficient Ethernet (EEE)
    • Fast Link Failure™ 2.0 (FLF2) with failure indication for commutator ring applications
    • Widest voltage range, fully-compliant parallel MAC interface device
    • Synchronous Ethernet support
    • Small 8 mm x 8 mm QFN package
    • Configurable drive strength on MAC interface enables better control of system-level EMI/EMC
Parametrics
Name
Value
Ethernet Bandwidth
10/100Mbps
LEDs
4
EEE
Yes
Temp. Range Min. (°C)
-40
Wake-on-LAN
No
Automotive
No
Interface1
RMII/RGMII
Ethercat
Yes
Copper Support
Yes
SyncE
Yes
MAC I/O Voltage
1.5/1.8/2.5/3.3
Cable Diagnostics
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets

06/03/2019
1201KB
06/04/2019
1258KB

Supporting Collateral


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC8540XMV-05
0.154000
0.884615
68
VQFN
8x8x0.9mm
Matte Tin
e3
VSC8540XMV-04
0.154000
0.884615
68
VQFN
8x8x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
