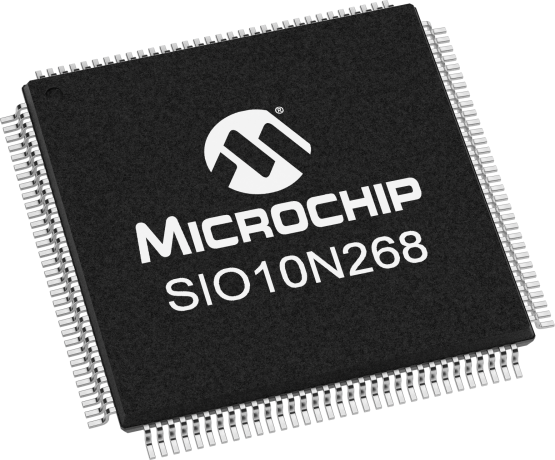

product primary image

SIO10N268

Super I/O Controller

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SIO10N268 is a single chip I/O device that can be used on the ISA or LPC bus. It is a 3.3V operational (5.0V tolerant), PC 99/2001, and ACPI 1.0 compliant Super I/O Controller.

This device includes SMSC’s true CMOS 765B floppy disk controller with advanced digital data separator and Multi-Mode parallel port with ChiProtectTM circuitry plus EPP and ECP support.

Implements the LPC bus interface when in LPC Mode. In this mode, the X-Bus Interface is enabled to interface to external I/O devices that have an 8-bit data bus and to standard ISA memory devices, up to 2MB, which can serve as BIOS flash. The I/O Address, DMA Channel and Hardware IRQ of each device in the part may be reprogrammed through the internal configuration registers.The SIO10N268 is a single chip I/O device that can be used on the ISA or LPC bus. It is a 3.3V operational (5.0V tolerant), PC 99/2001, and ACPI 1.0 compliant Super I/O Controller.
This device includes SMSC’s true CMOS 765B floppy disk controller with advanced digital data separator and Multi-Mode parallel port with ChiProtectTM circuitry plus EPP and ECP support.

Implements the LPC bus interface when in LPC Mode. In this mode, the X-Bus Interface is enabled to interface to external I/O devices that have an 8-bit data bus and to standard ISA memory devices, up to 2MB, which can serve as BIOS flash. The I/O Address, DMA Channel and Hardware IRQ of each device in the part may be reprogrammed through the internal configuration registers.

Family parts
SIO10N268-NU

Additional Features
  • 3.3V Operating Voltage
  • 128 VTQP Package
  • 33 GPIO pins
  • 2 Blink LED
  • Watchdog timer
  • 4 16C550 Compatible UARTs
  • ACPI 1.0 Compliant
  • CMOS 765B Floppy Disk Controller
  • Multi-mode parallel port with ChiProtectTM, EPP and ECP Support
  • Supports ISA Plug-and-Play Standard (Version 1.0a)
  • One UART includes additional support for Serial Infrared Interface. Complies with: IrDA v1.2 (Fast IR), HPSIR, and ASKIR formats, and Consumer IR.)
Parametrics
Name
Value
Parallel Port
Yes
GPIO Pins
33
Operating Voltage
3.3V
Op Temp Max
70
Interface
LPC or ISA

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K

$0.62
$0.67
$1.35
$0.89
$2.79


$7.28
$9.62
$5.35
$5.78
$8.65
$5.56
$2.30
$5.07
$1.35
$1.80
$2.44
$4.99

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SIO10N268-NU
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
