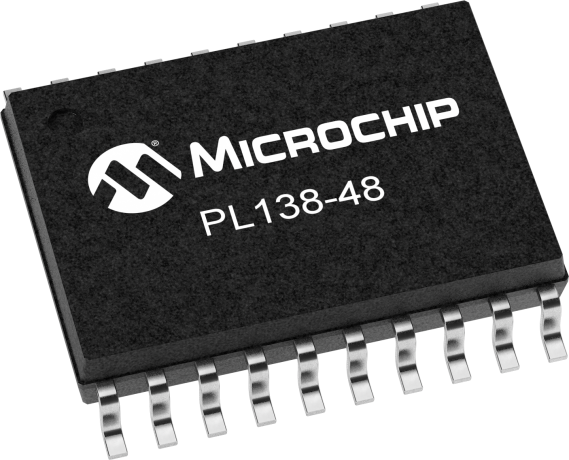

PL138-48

Status: In Production

Features:

  • Four differential 2.5V/3.3V LVPECL output pairs
  • Output Frequency: ≤1GHz
  • Two selectable differential input pairs
  • LVPECL, LVCMOS, LVDS, HCSL, SSTL, LVHSTL, CML
  • Output Skew: 25ps (typ.)
  • Part-to-part skew: 140ps (typ.)
  • Propagation delay: 1.5ns (typ.)
  • Additive Jitter: <100fs (typ.)
  • Operating Supply Voltage: 2.375V ~ 3.63V
  • Operating temperature range from -40°C to 85°C
  • Package availability: 20-pin TSSOP
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PL138-48 family is a high performance low-cost 1:4 outputs Differential LVPECL fanout buffer.The family of Differential LVPECL buffers are designed to operate from a single power supply of 2.5V±5% or 3.3V±10%. The differential input pairs are designed to accept most standard input signal levels, using an appropriate resistor bias network, and produce a high quality set of outputs with the lowest possible skew on the outputs, which is guaranteed for part-to-part or lot-to lot skew.Designed to fit in a small form-factor package, PL138 family offers up to 1GHz of output operation with very low-power consumption, and lowest additive jitter of any comparable device. The Output Enable feature, when activated, allows the IC to consume less than 10µA of current.

Additional Features
    • Four differential 2.5V/3.3V LVPECL output pairs
    • Output Frequency: ≤1GHz
    • Two selectable differential input pairs
    • Translates any standard single-ended or differential input format to LVPECL output. It can accept the following standard input formats and more:
      • LVPECL, LVCMOS, LVDS, HCSL, SSTL, LVHSTL, CML
    • Output Skew: 25ps (typ.)
    • Part-to-part skew: 140ps (typ.)
    • Propagation delay: 1.5ns (typ.)
    • Additive Jitter: <100fs (typ.)
    • Operating Supply Voltage: 2.375V ~ 3.63V
    • Operating temperature range from -40°C to 85°C
    • Package availability: 20-pin TSSOP
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
2:4 PECL buffer 50fs Typ, 100fs Max Additive Phase Jitter
Input
LVDS/LVPECL/LVHSTL/SSTL/HCSL/LVCMOS
Output
LVPECL
Supply Voltage
2.5/3.3
Max Freq (GHz)
1
Max Prop Delay (ps)
890
Icc (mA)
145
Max Within Device Skew (ps)
37
OE
True
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
LVPECL

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL138-48OC
0.078000
0.175676
20
TSSOP
4.4mm
Matte Tin
e3
PL138-48OC-R
0.078000
0.200000
20
TSSOP
4.4mm
Matte Tin
e3
PL138-48OI
0.078000
0.175676
20
TSSOP
4.4mm
Matte Tin
e3
PL138-48OI-R
0.078000
0.200000
20
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
