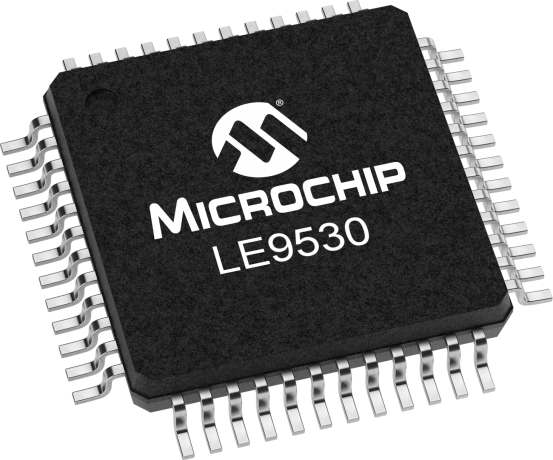

LE9530

Dual Ch Ringing SLIC

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le9530 Dual Ringing SLIC device is a dual-channel device optimized to provide battery feed, ringing, and supervision on voice loops found in short-loop VoIP applications. This device is optimized to interface to the Broadcom BCM3378/3380/3382 and BCM6816 devices, or a similar codec. The Le9530 device operates independently from a single, user-adjusted battery and a +3.3 V VCC per channel. Each channel provides forward and reverse battery feed, voice transmission, power ringing, an ultra low-power scan state, ground start (Tip open), and a disconnect state. A test load switch is also included to support integrated test algorithms.

Additional Features
  • Dual Architecture
    • Two fully independent integrated SLIC channel
    • No impulse noise crosstalk in any operation states to the listening channel in forward or reverse active states
  • Two Power Supplies
    • Single user adjusted battery input per channel
    • 3.3 V for VCC
  • High Voltage Design
    • Meets Comcast Ringing requirements without clipping distortion
    • Robust solution with no damage during extended ringing cycles or switching the ringer on and off
    • Allows use of 50 Ohm protection resistors and lower cost lower current rated protectors
    • Up to -145 V ringing battery Le9530D
    • Up to -100 V ringing battery Le9530C
  • Channel Independent Eight Operating States
    • Scan state for minimal power dissipation
    • Active Forward Battery 25mA DC Current Limit
    • Active Reverse Battery 25mA DC Current Limit
    • Active Forward Battery 40mA DC Current Limit
    • Active Reverse Battery 40mA DC Current Limit
    • Tip Open Ground Start
    • Ringing
    • Disconnect (Default Power Up Mode)
  • Per Channel Ringing Inputs for Optimized Interface to BCM SoC Devices
    • Allows to accept driving signals from per channel voice outputs as well as from PWM outputs
  • Ultra-Low On-Hook Power
  • Loop Start, Ring Trip, and Ground Start Detections
    • Loop closure detection with hysteresis to minimize dial pulse distortion
  • Thermal Shutdown Protection with Hysteresis
  • Test Load Switch
  • Supports integrated test algorithms
Parametrics
Name
Value
Application
Broadband Gateway SLIC
Series
VE950
Loop Length
Short
Battery Topology
Tracking
SOC Interface
Parallel
Output Voltage (V) max
145
Number of Ports
2
Release
True

Documents

Jump to:

Data Sheets


898KB

Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE9530CETC
0.181000
0.896000
48
TQFP
7x7x1mm
Matte Tin
e3
LE9530CETCT
0.181000
0.746667
48
TQFP
7x7x1mm
Matte Tin
e3
LE9530DETC
0.181000
0.896000
48
TQFP
7x7x1mm
Matte Tin
e3
LE9530DETCT
0.181000
0.746667
48
TQFP
7x7x1mm
Matte Tin
e3
LE9530CPQC
0.123100
0.853846
48
VQFN
7x7x1mm
Matte Tin
e3
LE9530CPQCT
0.123100
0.473333
48
VQFN
7x7x1mm
Matte Tin
e3
LE9530DPQC
0.123100
0.853846
48
VQFN
7x7x1mm
Matte Tin
e3
LE9530DPQCT
0.123100
0.473333
48
VQFN
7x7x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
