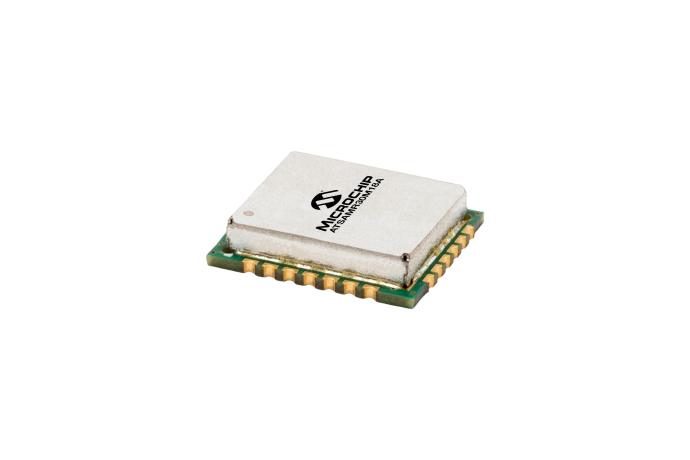

ATSAMR30M18

802.15.4 RF Module

Status: In Production

Features:

  • Compact 802.15.4 Sub-GHz module
  • ATSAMR30E18A SiP with ARM Cortex-M0+ MCU and Sub-GHz transceiver
  • Integrated Ultra Low Power Transceiver for 700/800/900MHz ISM band
  • 256 KB Flash
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The ATSAMR30M18A is the world's most compact 802.15.4 Sub-GHz module for the IoT. It operates in the 780 MHz (China), 868 MHz (Europe) and 915 MHz (North America) Sub-GHz frequency bands, and is optimized for low power applications such as wireless sensors, building and home automation devices, alarms and industrial networks. The module combines the ATSAMR30E18A SiP (System-in Package) with Cortex M0+ MCU with 256KB Flash, 40KB RAM and a Sub-GHz radio, all in a compact, regulatory-certified 12.7mm x 11.0mm design. It supports IEEE 802.15.4 PHY based protocols such as 6LoWPAN, zigbee, and Microchip's own MiWi Networking protocols for self-healing Point-to-point, Star and Mesh networking. For ease of development, the ATSAMR30M18A is available in a fully-certified Xplained Pro development board. There is also a free MiWi Networking protocol stack, and community support for 6LoWPAN.

Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

For product comparison, please consider: ATSAMR30G18A, ATSAMR30E18A

Additional Features
  • Compact 802.15.4 Sub-GHz module
  • ATSAMR30E18A SiP with ARM Cortex-M0+ MCU and Sub-GHz transceiver
  • Integrated Ultra Low Power Transceiver for 700/800/900MHz ISM band
  • 256 KB Flash
  • 16 Input/Output pins
  • Maximum operating frequency 48 MHz
  • 128-bit Advanced Encryption Standard (AES) crypto engine
  • 32-bit Medium Access Control (MAC) symbol counter
  • Automatic retransmission modes
  • Single 1.8V - 3.6V supply
  • FCC / ETSI compliant RF front end with harmonic filter
  • Two Serial Communication interface (SERCOM) units left for external applications
  • High precision 16 MHz crystal oscillator
  • 12-bit, 350 ksps Analog-to-Digital Converter (ADC)
  • I2C up to 3.4 MHz
  • Full-speed (12 Mbps) Universal Serial Bus (USB) 2.0 interface
  • 16 External General Purpose Input/Output (GPIO) lines
Parametrics
Name
Value
Type
RF MCU Modules
Family
802.15.4
Host Interface
UART, SPI, I2C, LIN
Pin Count
25
Package
Module
IO Pins
16
RF Module
Yes
Operating Temperature Range
-40 to +85
Vdd Range(V)
1.8 to 3.6
Frequency Range
700/800/900 MHz
Sleep Mode Current Consumption
0.77uA
Encryption
128-bit AES
Operating Voltage Range
1.8V to 3.6V
Flash
256 KB
CPU
Cortex M0+
USB Transceiver
USB 2.0
USB Speed
12 Mbps
ADC Channels
4
Max Operating Frequency
48 MHz
