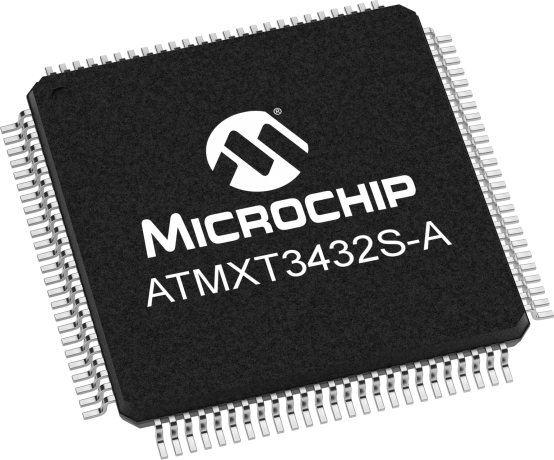

product primary image

ATMXT3432S-A

Status: In Production

Features:

  • Fully automotive-qualified (Grade 3), operating within the temperature range of -40 to +85 deg C
  • Supports up to 10 concurrent touches in real time with touch size reporting
  • Communication via I2C or USB interfaces
  • Integrated voltage doubler option to increase the signal to noise ratio (SNR)
  • Supports glove (2mm) touch
  • Support thick lenses (up to 2mm plastic)
  • Packages: Master TQFP100; Slaves LQFP144
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The recommended alternative touch controller is ATMXT2912TD-A.

The Microchip's maXTouch® family, known for its superior performance and rich feature set, is now qualified for automotive applications. The mXT3432S-A is optimized for touchscreens up to 17.3" and enables single-layer shieldless designs. In addition to its superior performance, multi-touch functionality, faster response time, robust operation and lower power consumption, the new mXT3432S-A also provides embedded functionalities such as gesture calculation and filter algorithms that meet current automotive design requirements. Dedicated firmware and a high signal-to-noise ratio makes the device ideally suited for very noisy environments and provide full support for gloved-hand operation on automotive touchscreens.

Automotive Applications

         Center stacks
         Navigation systems



Please contact your local Microchip sales office for pricing information and to place an order.

Additional Features

Fully automotive-qualified (Grade 3), operating within the temperature range of -40 to +85 deg C

Supports up to 10 concurrent touches in real time with touch size reporting

Communication via I2C or USB interfaces

Integrated voltage doubler option to increase the signal to noise ratio (SNR)

Supports glove (2mm) touch

Support thick lenses (up to 2mm plastic)

Packages: Master TQFP100; Slaves LQFP144

Parametrics
Name
Value
Interface Type
I2C / USB
Max Screen Size (Inch)
17.3
Touch Response
>150Hz
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 85
Number of Touches
10
Max Nodes Supported
3432

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT3432S-M-AT
0.497000
4.088889
100
TQFP
14x14x1mm
Matte Tin
e3
ATMXT3432S-M-ATR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMXT3432S-S-AT
1.392800
7.833333
144
LQFP
20x20x1.4mm
Matte Tin
e3
ATMXT3432S-S-ATR
1.392800
2.285714
144
LQFP
20x20x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
