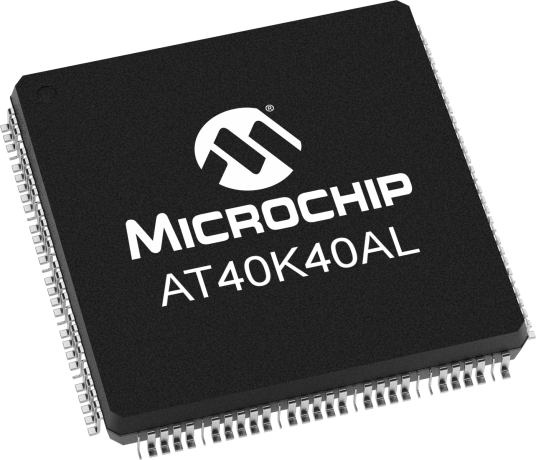

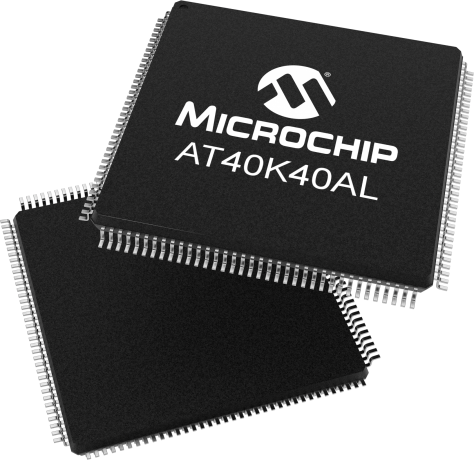

product primary image

AT40K40AL

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

This 40,000 to 50,000-gate fully PCI-compliant, SRAM-based FPGA features distributed 10-ns programmable synchronous/asynchronous, dual-port/single-port SRAM, 8 global clocks, Cache Logic® ability (partially or fully reconfigurable without loss of data), and automatic component generators. It has a 384 I/O count and supports 3.3-V designs. This FPGA can be used as a coprocessor for high-speed (DSP/processor-based) designs by implementing a variety of computation intensive, arithmetic functions. It is designed to quickly implement high-performance, large gate count designs through the use of synthesis and schematic-based tools used on a PC or Sun platform.

Parametrics
Name
Value
Max# Operating Freq# (MHz)
100
Speed
-1
Max I/O Pins
384
F#max (MHz)
100
Operating Voltage Max (V)
3.6
Registers
3048
Memory
18432
Usable Gates Range (K)
40 to 50
Operating Voltage Min (V)
3

Documents

Jump to:

Application Notes


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT40K40AL-1DQU
5.849700
4.166667
208
PQFP
28x28x3.4mm
Matte Tin
e3
AT40K40AL-1BQU
1.392800
7.833333
144
LQFP
20x20x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
