Class-B Safety Software

Modern home appliances have made once tedious tasks simple to accomplish. What once took hours of exertion can now be accomplished with a few presses of a button. Modern appliances are in large part electronically controlled. Electronic controls enable higher efficiencies, additional functionality and an improved user experience. But what happens if something goes wrong? Safety specifications, such as IEC 60335, are used to ensure manufactures have designed their products to operate safely. IEC 60335 defines safety standards at a system level. IEC 60730, which is referenced by IEC 60335, addresses safety of electronic controls in appliances. Currently IEC 60730 is mandatory for appliances sold in Europe and widespread adoption is likely. IEC 60730 Annex H defines safety requirements for electronic controls and acceptable measures to address faults/errors are defined in Table H.1 (H.11.12.7 in edition 3).

We have developed a library of low-level software routines and hardware peripherals that simplify meeting IEC 60730 requirements for Class B Safety. Each product family (PIC16, PIC18, PIC24, dsPIC® DSC and PIC32) has functions specifically designed to work efficiently with the available resources. Application Note AN1229 describes the Application Programming Interface (API) functions that are available in the Class B Safety Software Library and how to incorporate them in your project.

Our Arm® Cortex® M0+ based devices are supported by the free Hitex Class-B Library. Download is available from the Hitex site at the following link: Microchip Hitex ARM Class-B Library. VDE Certificates are available in the Documentation section below.

There are several advantages to using the Class B Safety Software Library. First, it reduces development time. Each function has been optimized and thoroughly tested based on each architecture and available resources. Second, it reduces the time and cost required to certify the end appliance. By providing a test certificate to the testing agency, the requirements covered by the Class B Safety Software Library do not have to be retested. Finally, our application engineers can provide guidance on how to implement software safety efficiently.

For more information, please email class-b@microchip.com.

Key Features

  • CPU register test
  • Program counter test
  • Variable memory test
  • EEPROM/Flash memory test
  • Clock test

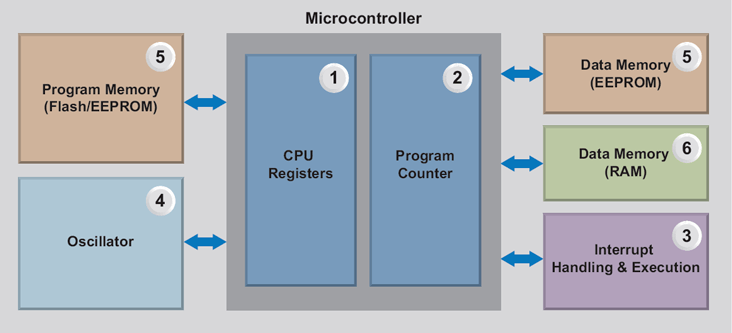

Components Covered by the Class B Safety Software Library

  MCU Circuit Component Fault/Error
1 CPU Registers Stuck
2 Program Counter Stuck
3 Interrupt handling and execution No interrupts or too many interrupts
4 Clock Frequency Clock failure or incorrect frequency
5 Memory testing (Flash/EEPROM) All single bit faults
6 Memory testing (RAM) DC fault

Class B Libraries

Class B Libraries

Library Version Date Certificate Documentation
PIC16 MCU Class B Library v4.0.1 2020.08.28 UL Release Notes
User Guide
PIC18 MCU Class B Library v4.0.1 2020.08.18 UL Release Notes
User Guide
AVR MCU Class B Library v4.0.1 2020.08.19 UL Release Notes
User Guide
PIC24/dsPIC® DSP Class B Library v2.40 2020.06.17 VDE/UL Class B Safety Software Library for PIC® MCUs and dsPIC DSCs
PIC32 Class B Library v1.0 2010.05.20 VDE/UL
AVR® XMEGA® MCU Class B Library v1.0 2012.05.14 VDE Guide to IEC 60730 Class B Compliance with XMEGA MCUs
SAM C2x/D2x Class B Library 1 v2.1 2017.04.20 VDE/UL VDE Test Report
Class B Library User Manual
Class B Library Traceability Matrix

Notes

  1. The IEC 60730 Class B library for Microchip’s Arm® Cortex®-M0+-based devices is supported by Hitex, and the library is also available from the Hitex website.

Archived Class B Libraries

Library Version Date Certificate Documentation
PIC16 MCU Class B Library v3.01 2015.10.21 UL Class B Safety Software Library for PIC16 PIC® MCUs
PIC18 MCU Class B Library v3.00 2015.10.21 UL Class B Safety Software Library for PIC MCUs and dsPIC® DSCs
tinyAVR® 1-series MCU Class B Library V1.1 2017.07.27 VDE 1 Guide to IEC 60730 Class B Compliance with tinyAVR® 1-Series MCUs

Note

  1. The VDE test report is included in the zip file with the Class B library

Documentation

Title
SAM C20 QTouch® Library UL Certificate of Compliance
MPLAB® X IDE CRC Calculator Test Project
CRC Calculator
Robustness on tinyAVR® 1-Series MCUs
Using a Hardware or Software CRC with Enhanced Core PIC16F1XXX in Class B Applications
